Hanna Instruments EC Series - Probe Specifications; Probe Dimensions; Probe Wiring Diagram

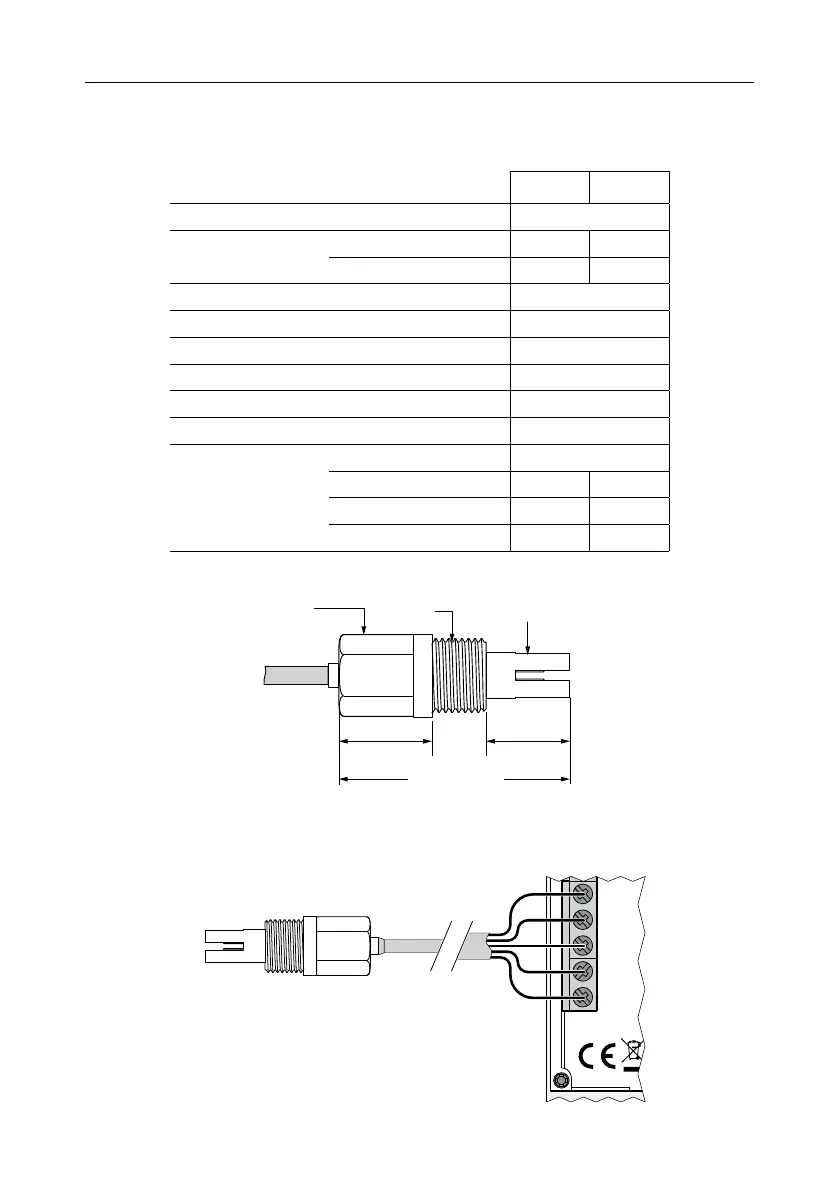

5 Probe Specications
5. PROBE SPECIFICATIONS
HI7632‑00 and HI7634‑00 probes are sold separately.
HI7632-00 HI7634-00
Type Two‑pole Amperometric

NTC sensor
4.7 KΩ

–
9.4 KΩ –

Cell constant 1 cm¯
1

Materials PVC body; AISI 316 electrodes

Temperature 5 to 50 °C (41 to 122 °F)

Maximum pressure 3 bar

Probe length 64 mm (2.5”)

Connection ½” NPT thread

Cable length
2 m (6.6’)

4 m (13.1’) –

5 m (16.4’) –

6 m (19.7”)

Probe Dimension
HEX
20 mm
(0.8”)
25 mm
(1.0”)
23 mm
(0.9”)
64 mm (2.5”)
NPT ½” Ø 12 mm (0.5”)
Probe Wiring
Easy access to the controller terminals enables quick wiring.
Probe low voltage connections are made to the color coded terminal on the left.
White or
Brown
Grey
Green
Yellow
Shield
BL9833XX-2
Note: Calibrate the probe prior to measurement.
