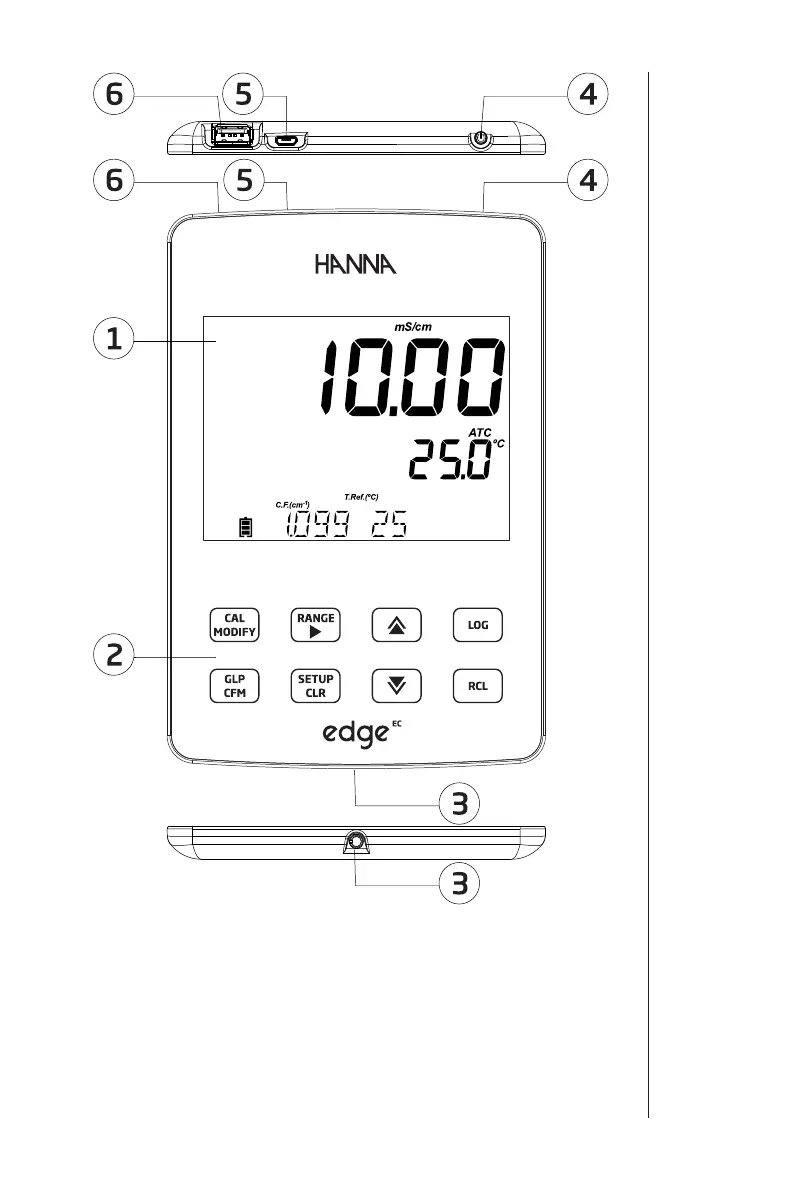

Hanna Instruments edge EC HI2003 - Product Diagram and Controls; Keypad and Port Descriptions

Diagram 5
1. Liquid Crystal Display (LCD)
2. Capacitive Touch Keypad
3. 3 mm jack input for edge
EC
®
digital probes
4. Top mounted ON/OFF button
5. Micro USB device connection for
power or PC interface
6. Standard USB host connection
for data transfer to a USB
thumb-drive
Product
Diagram
