Setup/Installation 9
The main operating modes of edge
EC
® are setup, calibration, measurement,
data logging, and data export. Follow this general outline of steps to get you
started. The following topics are expanded upon in the sections that follow in
this manual.
1. Familiarize yourself with the design features of this unique meter.
2. Decide how the meter will be used and set up the wall or bench cradle in a
clean area near line power.
3. Turn edge
EC
® on using the ON/OFF button located on the top of the meter.
4. Plug in the probe required for measurement.
5. SETUP the measurement parameters required for the measurement you
will be making.
6. Calibrate the sensor/probe.
You are now ready for measurements.

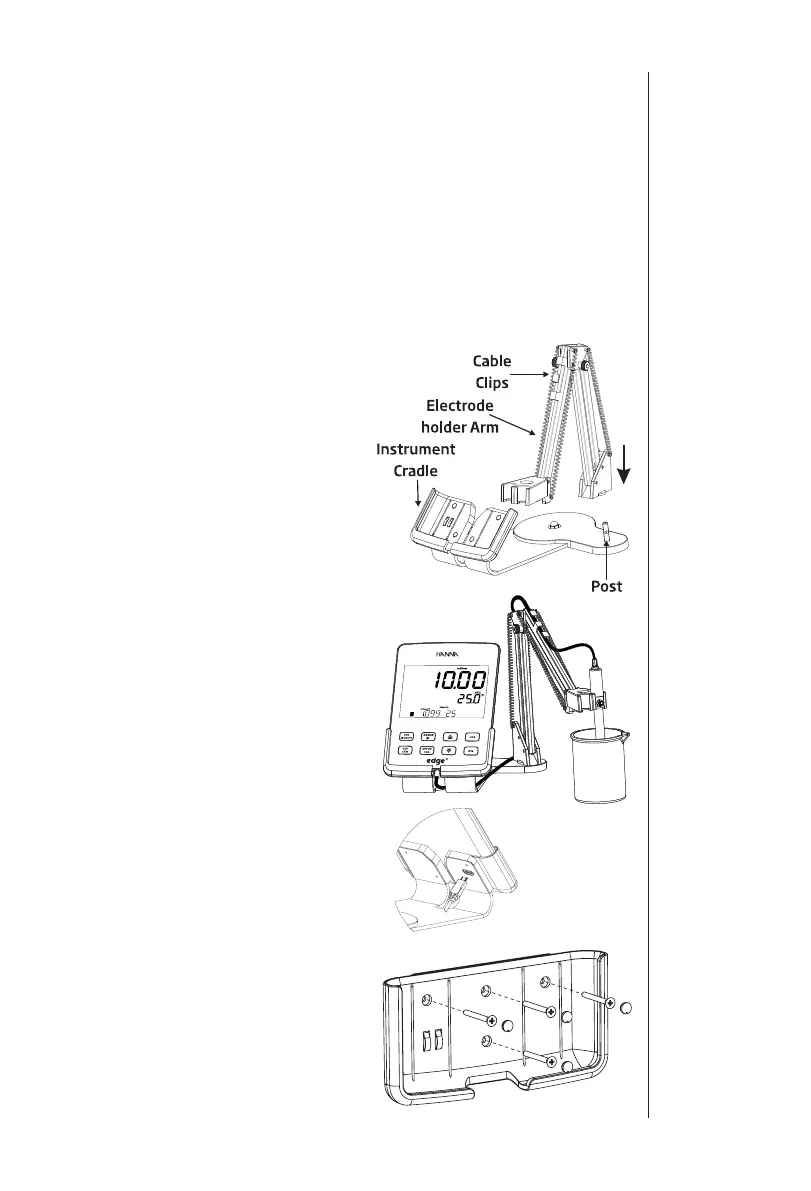

Bench Cradle Setup
Insert electrode holder arm into the post
on the pivoting base.
Connect the probe connector to the
socket located at the bottom of the
instrument.
Slide edge
EC
® into the cradle while
positioning the probe cable behind the
cradle. Put the probe/sensor into the
electrode holder and secure cable in
clips.
Connect the power adapter cable to the
rear socket of the bench cradle. Connect
the other end to the power adapter and
plug into line power. Verify the battery
icon indicates charging.
Wall Cradle Setup
Choose suitable wall location. (Use 2.5
mm or US #3 bit). Fasten the wall cradle
using the provided screws. Snap cover
over screw heads.
Setup/
Installation
Setting Up
edge
EC
®
To Next Page
