INSTALLATION
Possible Installation Schemes for a Recirculating System
In-Line Installation, Overview & Parts Table

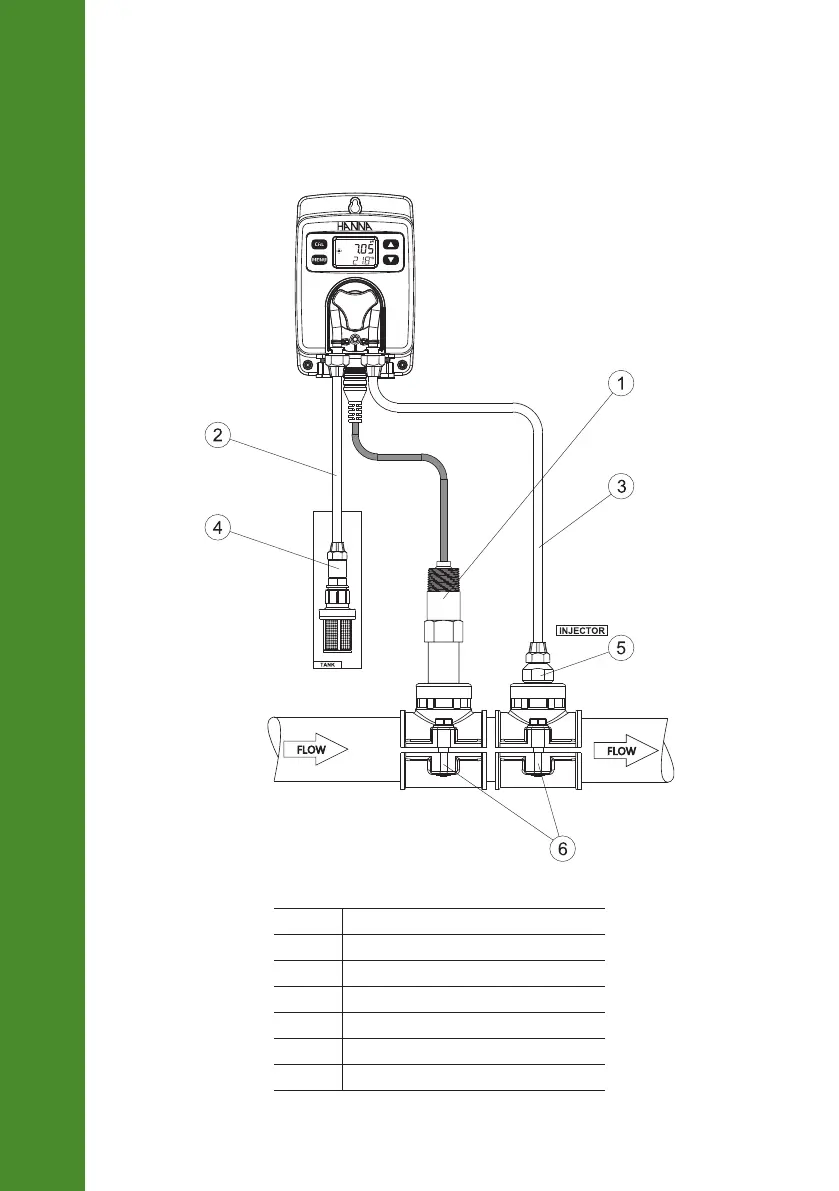

Below is an illustrated reference of a generic in-line installation scheme with the relevant components.
Note: Injectors prevent back flow into reagent tank.
Position Description
1 pH probe
2 Flexible PVC tubing
3 Rigid PE tubing
4 Aspiration filter
5 Injector, 1/2” thread
6 Saddle for Ø 50 mm pipe, using 1/2” thread
To Next Page
