15
INSTALLATION
Flow Cell Installation, Overview & Parts Table

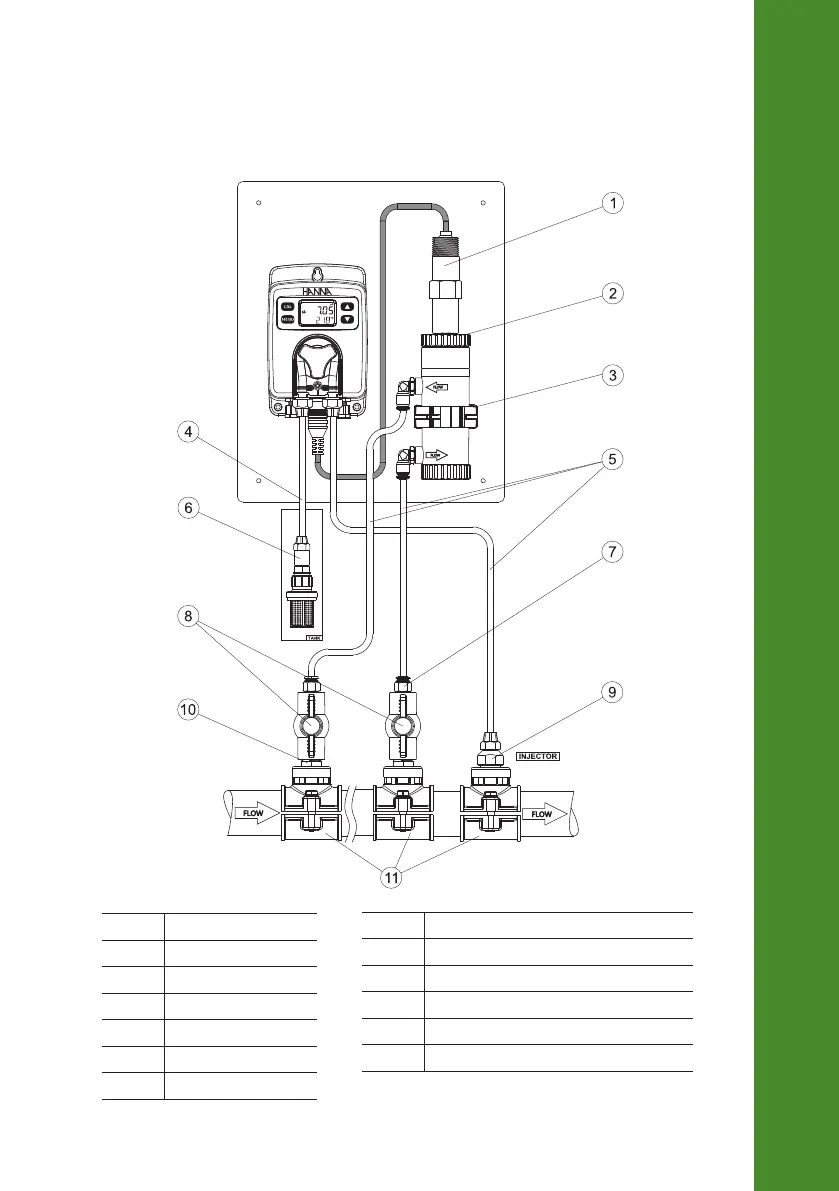

Below is an illustrated reference of a generic flow-cell installation scheme with the relevant
components. The maximum pressure of the flow cell system is 3 atm (44 psi).
Position Description
1 pH probe
2 Flow cell and adapter
3 Mounting panel
4 Flexible PVC tubing
5 Rigid PE tubing
6 Aspiration filter
Position Description
7 1/2” to 6 mm adapter for tubing
8 Valve to control flow-cell flow
9 Injector, 1/2” thread
10 Nipple, 1/2” - 1/2”
11 Saddle for Ø 50 mm pipe, using 1/2” thread
