Control actions are stopped as soon as the
user presses SETUP and enters the pass-
word.
In order to reactivate the control mode, use
code 02 of setup (see “Setup” section). Oth-
erwise, the meter remains in idle mode.
ANALOG OUTPUT
Models HI 23xy1 and HI 24xy1 are provided with the ana-
log output feature.
The output is galvanic separated and can be a voltage or a
current.

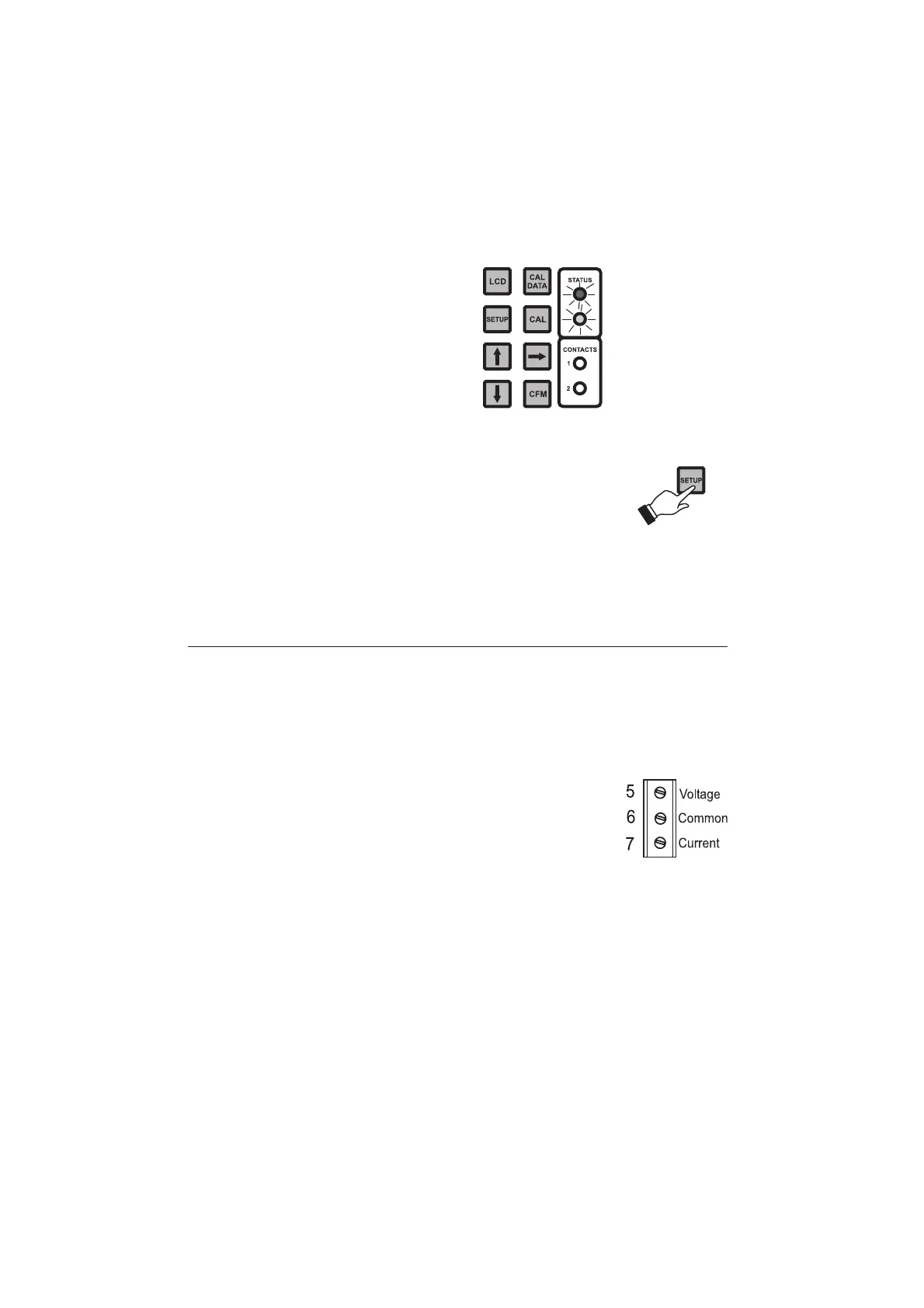

Pin 5 is the voltage output, pin 6 is the
analog output common and pin 7 is the
current output.
With the recorder, simply connect the
common port to the common output
and the second port to the current out-
put or voltage output (depending on
which parameter is being used) as de-
picted aside.
