Connecting to AV Devices
Connect external devices such as VCD / DVD players or VCRs to the TV
using the AV1, AV2, AV3, and AV4 ports on the back or side of the TV.
Connecting to a VCR/VCD/DVD player using
component video

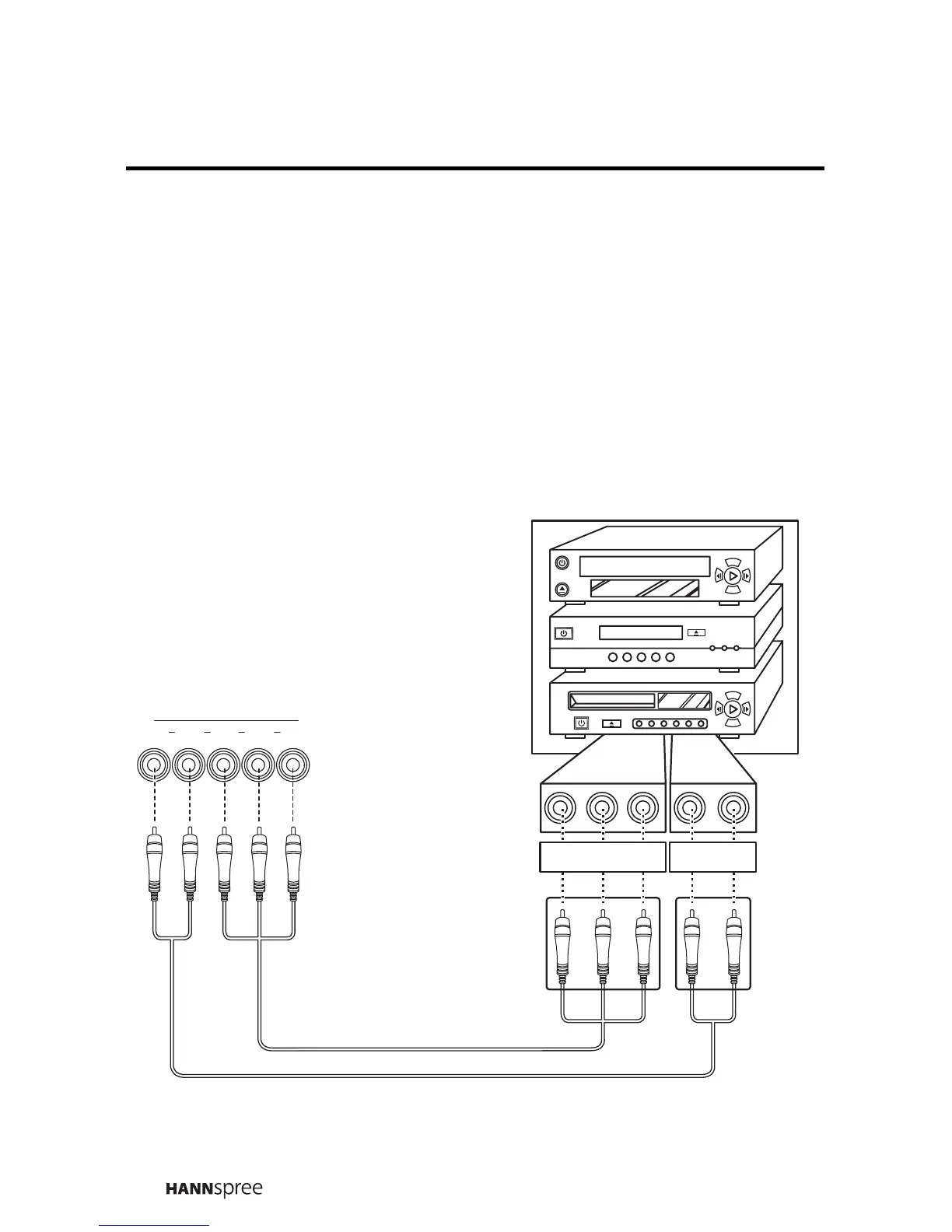

The illustration presented here shows how to connect your TV to a VCR /
VCD / DVD player using the AV1 component video port. Actual connections
may vary according to the make and model of your device. Refer to the
user’s manual included with the AV device for more detailed instructions.
RL YP
R
P
B
AV 1
Y
RL
PR
P
B
VCR
DVD
VCD
Video cable
Audio cable
Note:
Location of the connectors
depends on the TV model.
Cables and connectors are color-coded
(red, white, red, blue, green).
To Next Page
