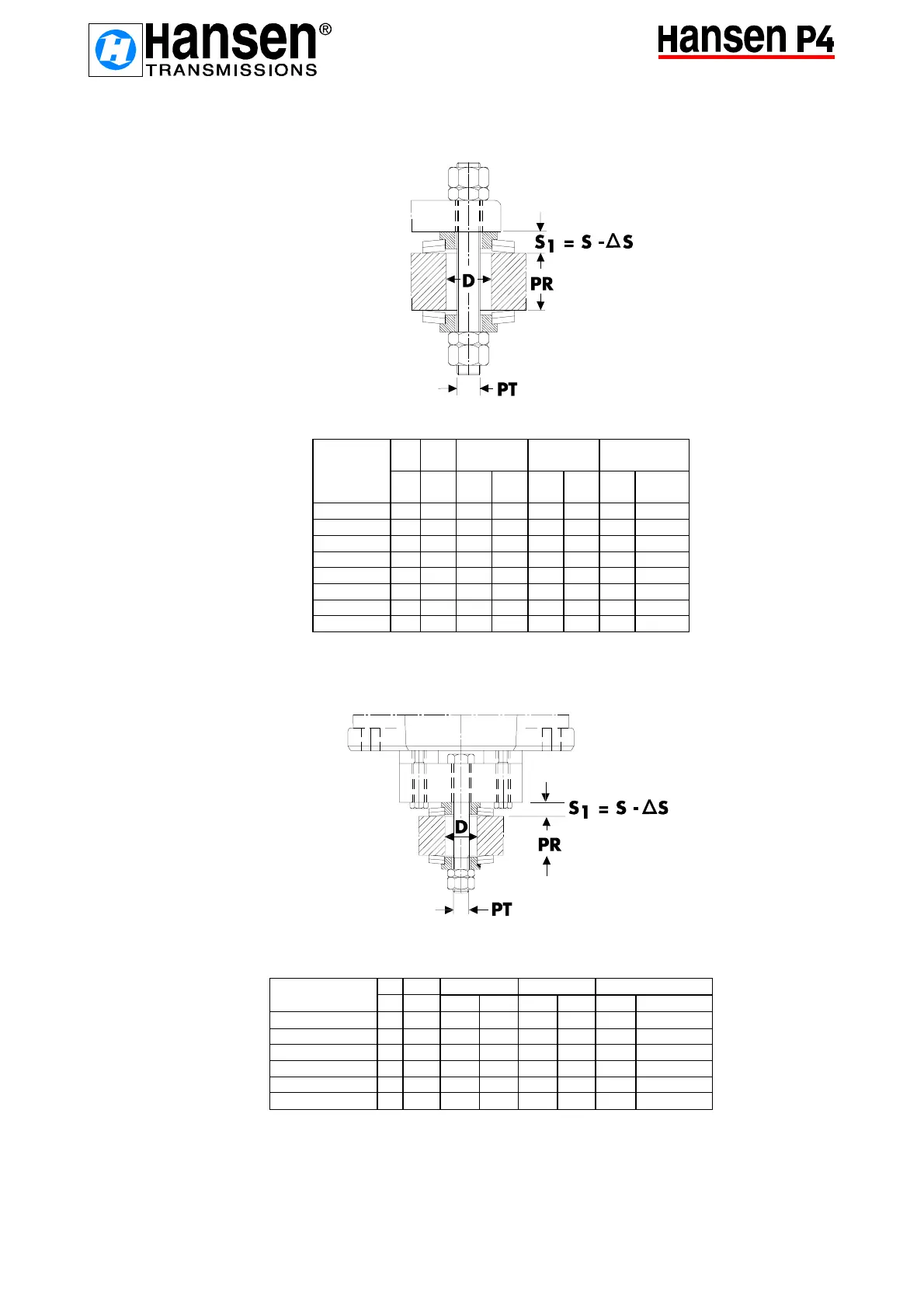

Fig. 3b
Tabela 2
Fig. 3c
Tabela 3
Tamanho D PT PR max D SA
±5 mm Pol. mm Pol. Q* DIN 2093
QH.C3
35 M20 50 1.97 0,7 0.028 2 x 3 A 80
QH.D3 - QH.D4
45 M24 60 2.36 0,9 0.035 2 x 2 A 100
QH.E3 - QH.E4
45 M24 60 2.36 0,9 0.035 2 x 3 A 100
QH.F3 - QH.F4
60 M30 75 2.95 1,0 0.039 2 x 2 A 125
QH.G3 - QH.G4
60 M36 90 3.54 1,0 0.039 2 x 3 A 125
QH.H3 - QH.H4
60 M36 90 3.54 1,0 0.039 2 x 3 A 125
Q*: numero de arruelas prato
Tamanho
da unidade
D PT PR max D SA
±5 mm Pol. mm Pol. Q* DIN
2093
QH.A2
35 M16 40 1.57 0,7 0.028 2 x 2 A 80
QH.B2
35 M20 50 1.97 0,7 0.028 2 x 2 A 80
QH.C2
45 M24 60 2.36 0,9 0.035 2 x 2 A 100
QH.D2
45 M24 60 2.36 0,9 0.035 2 x 3 A 100
QH.E2
60 M30 75 2.95 1,0 0.039 2 x 3 A 125
QH.F2
60 M30 75 2.95 1,0 0.039 2 x 3 A 125
QH.G2
60 M36 90 3.54 1,0 0.039 2 x 4 A 125
QH.H2
60 M36 90 3.54 1,0 0.039 2 x 4 A 125
Q*: numero de arruelas prato
