Operating Data Logger
USER’S MANUAL 28

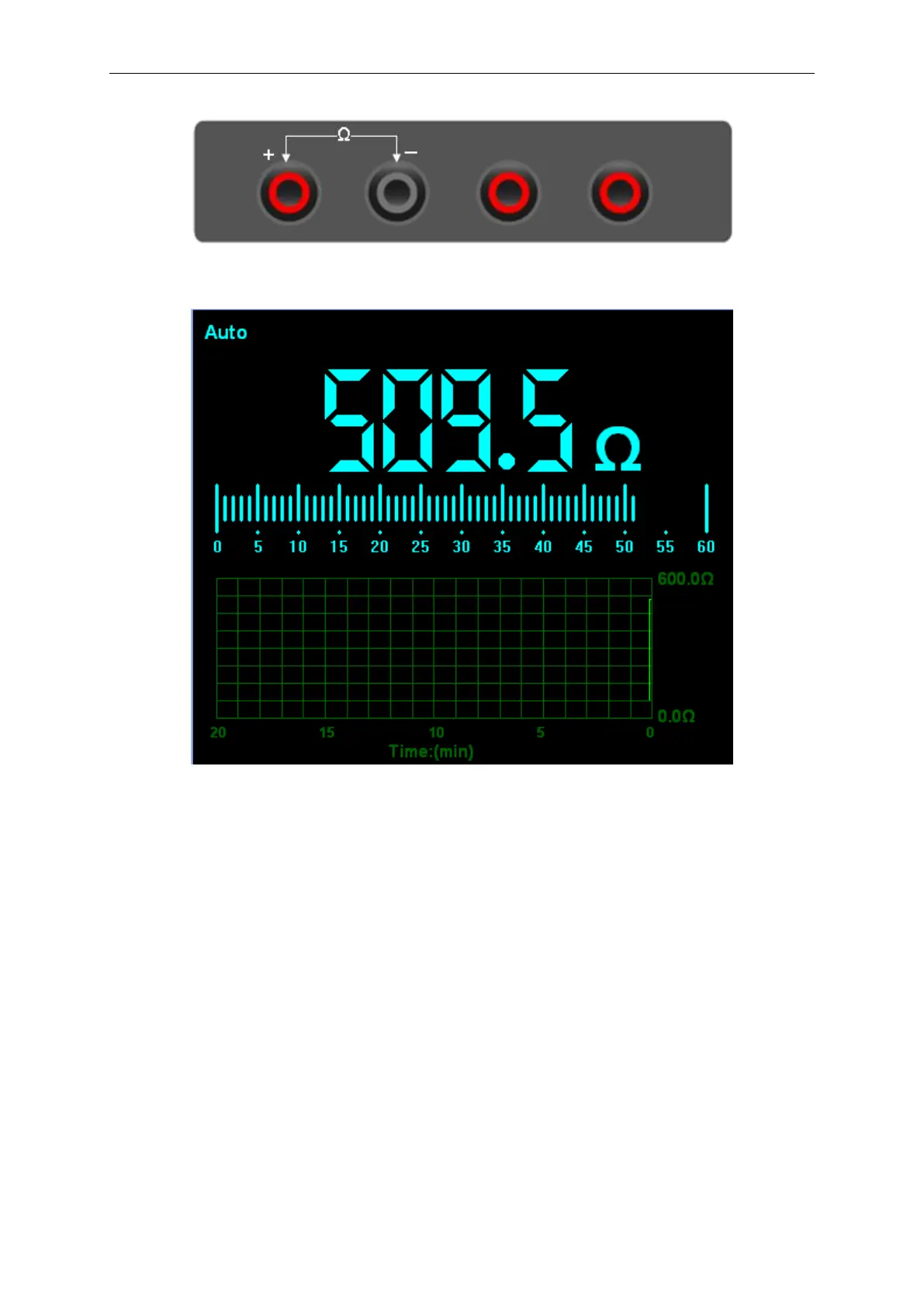

Connect Data Logger probes(HT325) with Hantek365 as illustrated in the following figure:
Figure 2-13
Then, the following figure will be displayed on the screen:
Figure 2-14 Resistance Measurement
2.4 Making a Diode Measurement
To make a measurement on the diode, follow these steps:
1) Click the “Diode” key and a diode symbol appears at the top of the screen.
2) Connect the black lead into the COM banana jack input and the red lead into the V/Ω/C banana
jack input.
3) Connect the red and black leads to the diode and the voltage value of the diode is displayed on
the screen in volt.
