Operating Data Logger
USER’S MANUAL 27
measure points will be displayed on the screen.
6) Click “A” to return to 600mA measurement.

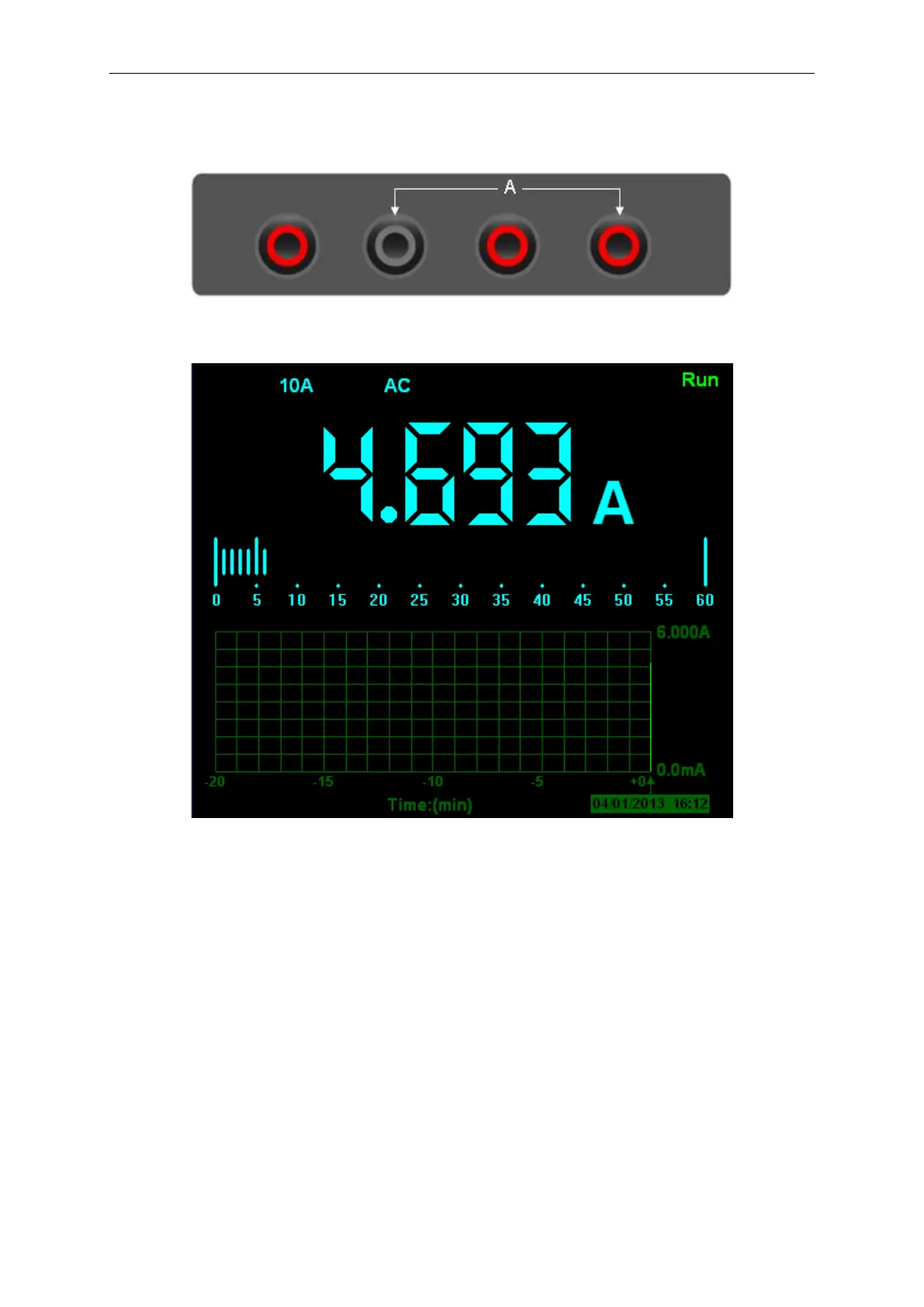

Connect Data Logger probes(HT325) with Hantek365 as illustrated in the following figure:
Figure 2-11
Then, the following figure will be displayed on the screen:
Figure 2-12 AC current Measurement for 10A
2.3 Measuring Resistance Values
To measure a resistance, follow these steps:
1) Click the “OHM” key and then resistance measurement window appears on the screen.
2) Connect the black lead into the COM banana jack input and the red lead into the V/Ω/C banana
jack input.
3) Connect the red and black test leads to the resistor. The resistance value is shown on the
screen in Ohm.
