Then, the following figure will be displayed on the screen.

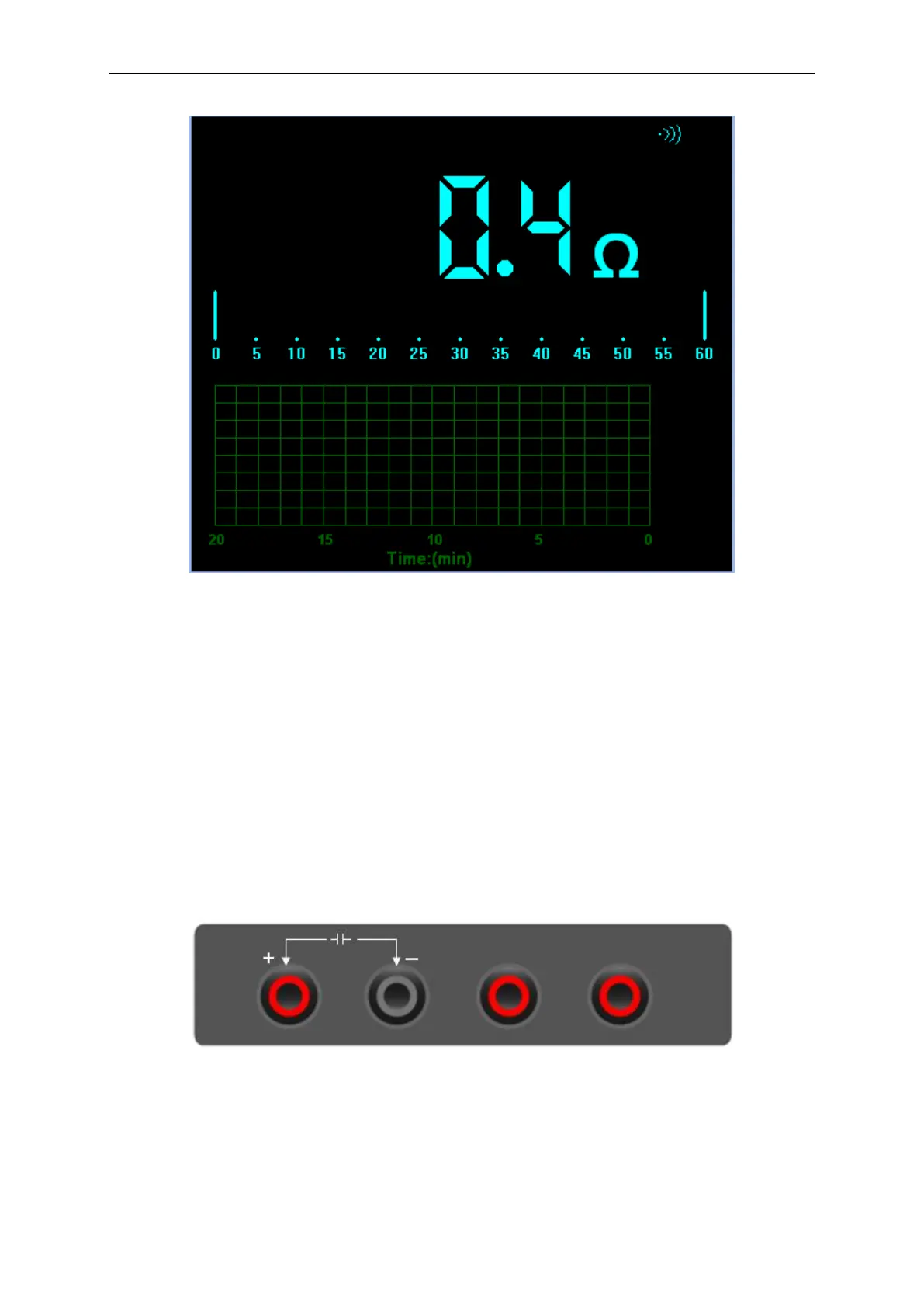

Figure 2-18 On-Off Measurement
2.5 Making a Capacitance Measurement
To measure a capacitance, follow these steps:
1) Click the “CAP” key and a capacitor symbol appears on the top of the screen.
2) Connect the black lead into the COM banana jack input and the red lead into the V/Ω/C banana
jack input.
3) Connect the red and black leads to the capacitor and the capacitance value is displayed on the
screen in μF or nF.
Connect Data Logger probes(HT325) with Hantek365 as illustrated in the following figure:
Figure 2-19
