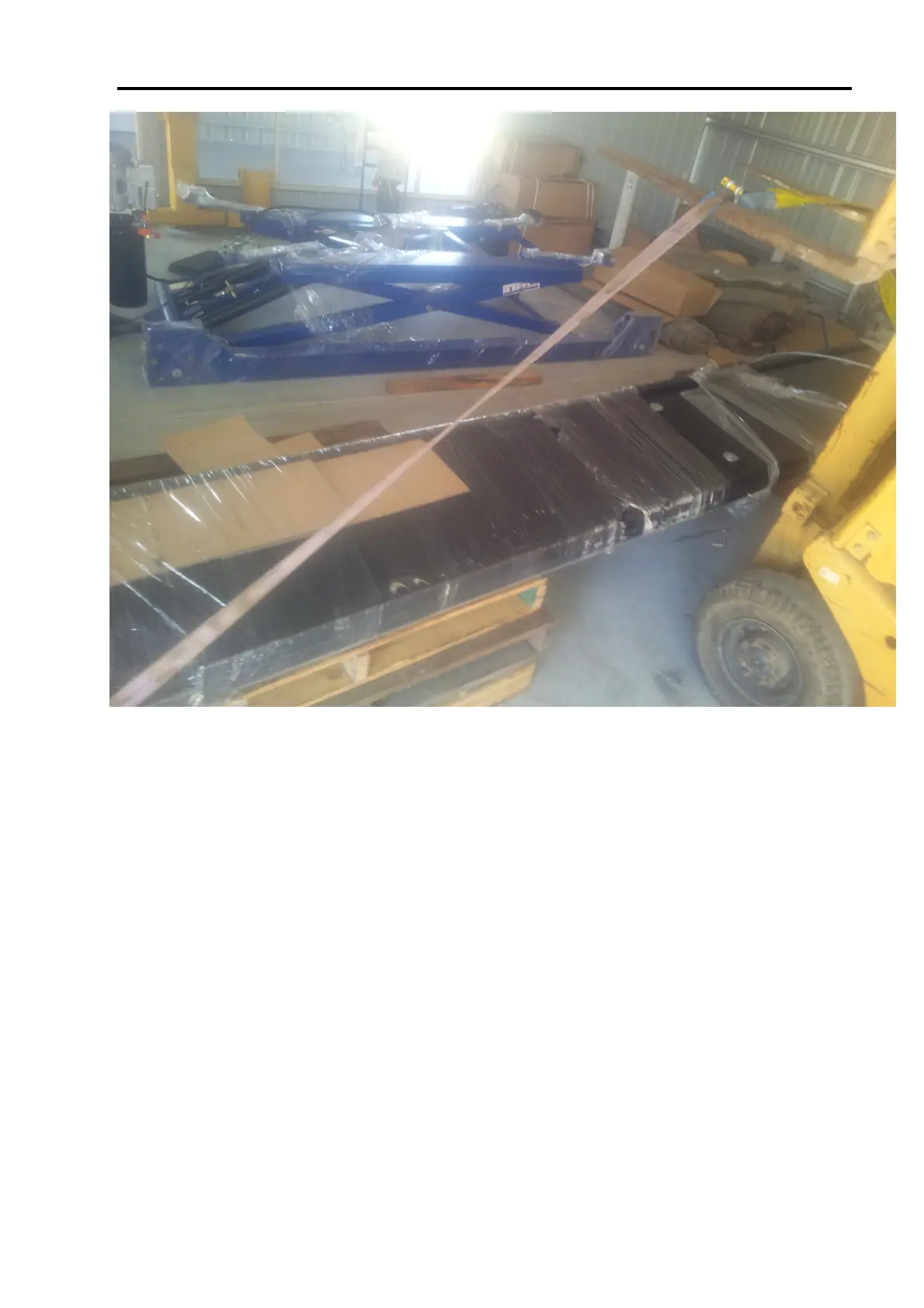

Figure: Rotating the top runway to correct orientation for installing. Lifting straps are
used in this example. (HAPP 28 runway shown)
After this step the runways are now able to be positioned on cross beams ready for
assembly.
Assembling'the'hoist'
The assembly of the hoist follows the following basic steps
1.) Place the cross beams on blocks in correct position in building
2.) Assemble the runways onto the crossbeams
3.) Place the columns onto the cross beams
4.) Attach cables and safety mechanism
5.) Align columns into correct position in building
6.) Ensure the columns fit tightly onto nylon blocks at end of cross beam (no sideways movement)
7.) Double check all measurements
8.) Bolt in columns
9.) Fit pump assembly
10.) Adjust cables and safety mechanism
