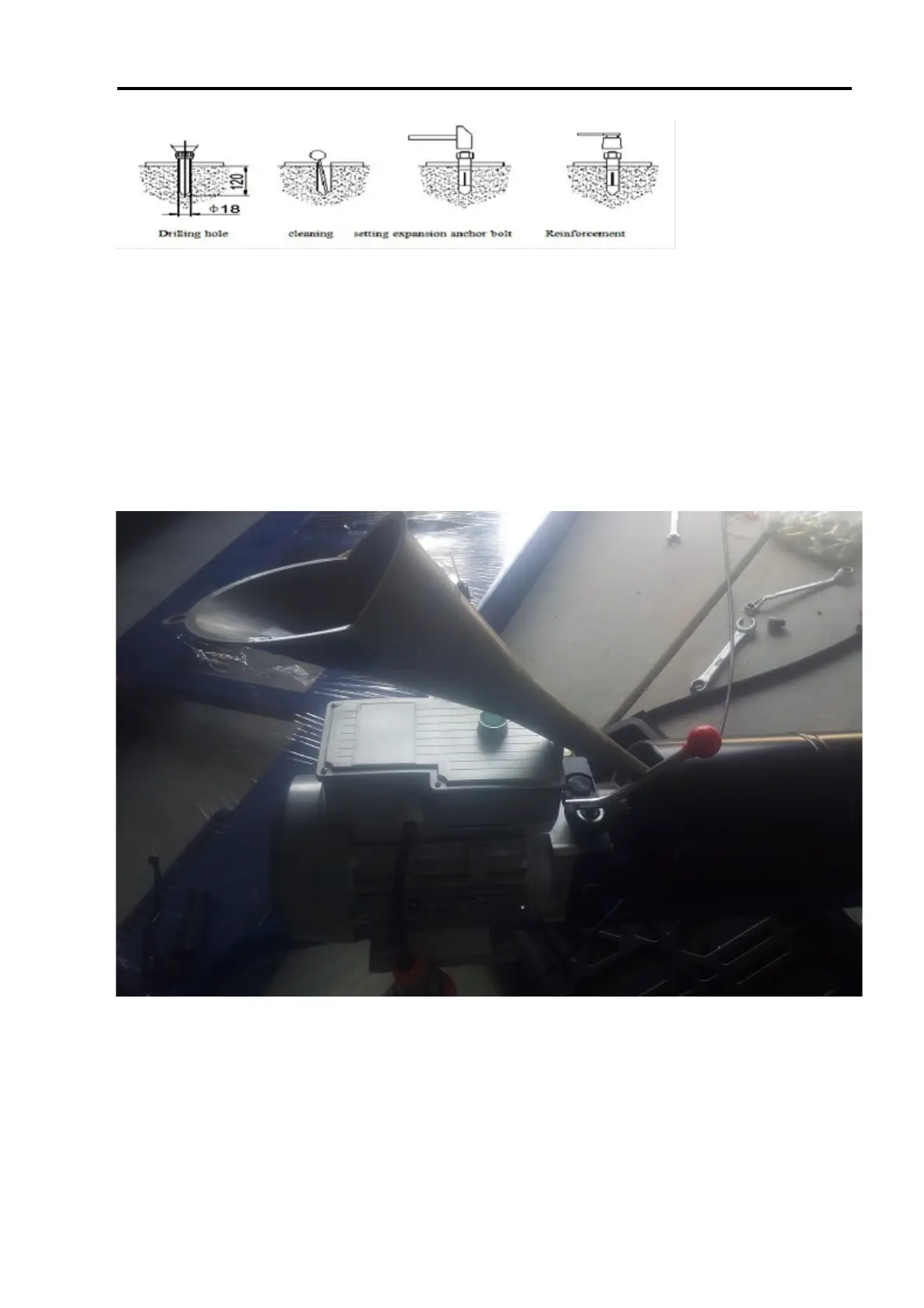

Figure: process for drilling tru bolts.
Drill the holes right through the concrete if possible, this will allow the removal of bolts by hammering through into
underlying soil in need be.
Good accurate blows with a heavy hammer will drive the tru bolts in. Once inserted tension the bolt to 80nM.
K'%)8=48)(55#4F"7)
Before fitting the pump it is generally easier to fill off line using a automatic transmission filler funnel as shown
below. In the installed position the funnel can still be used.
Figure: Easy way to fill HAPP oil reservoir.
