Happ 27 - Safety Mechanism Connection; Adjust cables and safety mechanism

Four post workshop lift HAPP27
Version 5 WWW.HAPP.COM.AU
28
)
)
)
.6L=5%)$(F"#5)(+6)5(<#%7)4#$A(+'54)
The safety mechanism is connected via a steel tube from end to end. This mechanism is attached using two allen headed
bolts at the slave beam end and two pins on the main beam end (end with power unit ).
Attach the two ends by inserting the pins into the connector at main beam end and bolting the rod withe allen keys onto
the slave beam end.

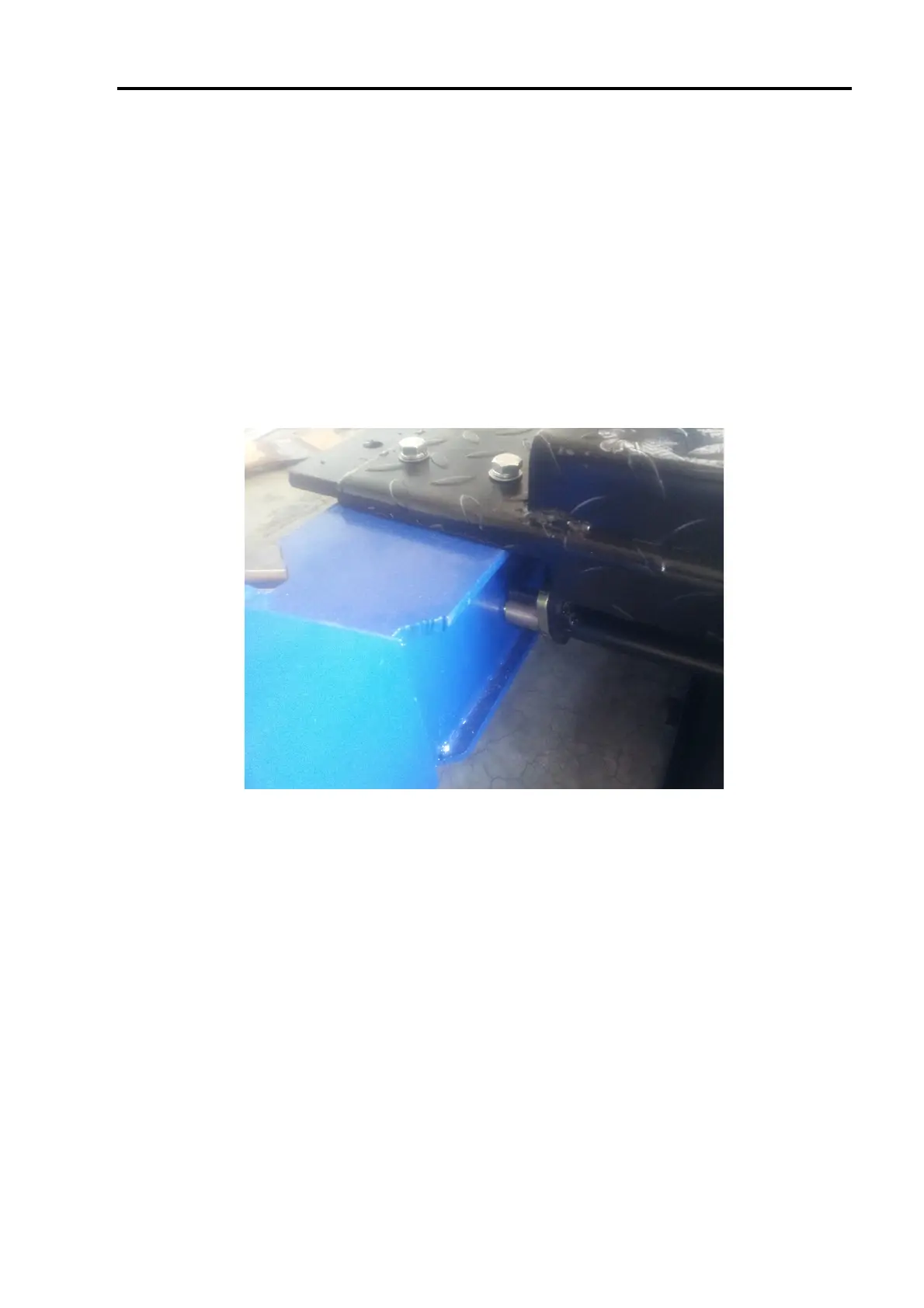

Figure: Safety rod connection at main crossbeam end.
