Happ 27 - Hydraulic System Components and Diagram; Hydraulic System Components

Four post workshop lift HAPP27
Version 5 WWW.HAPP.COM.AU
45
!
!
Hydraulic'System'

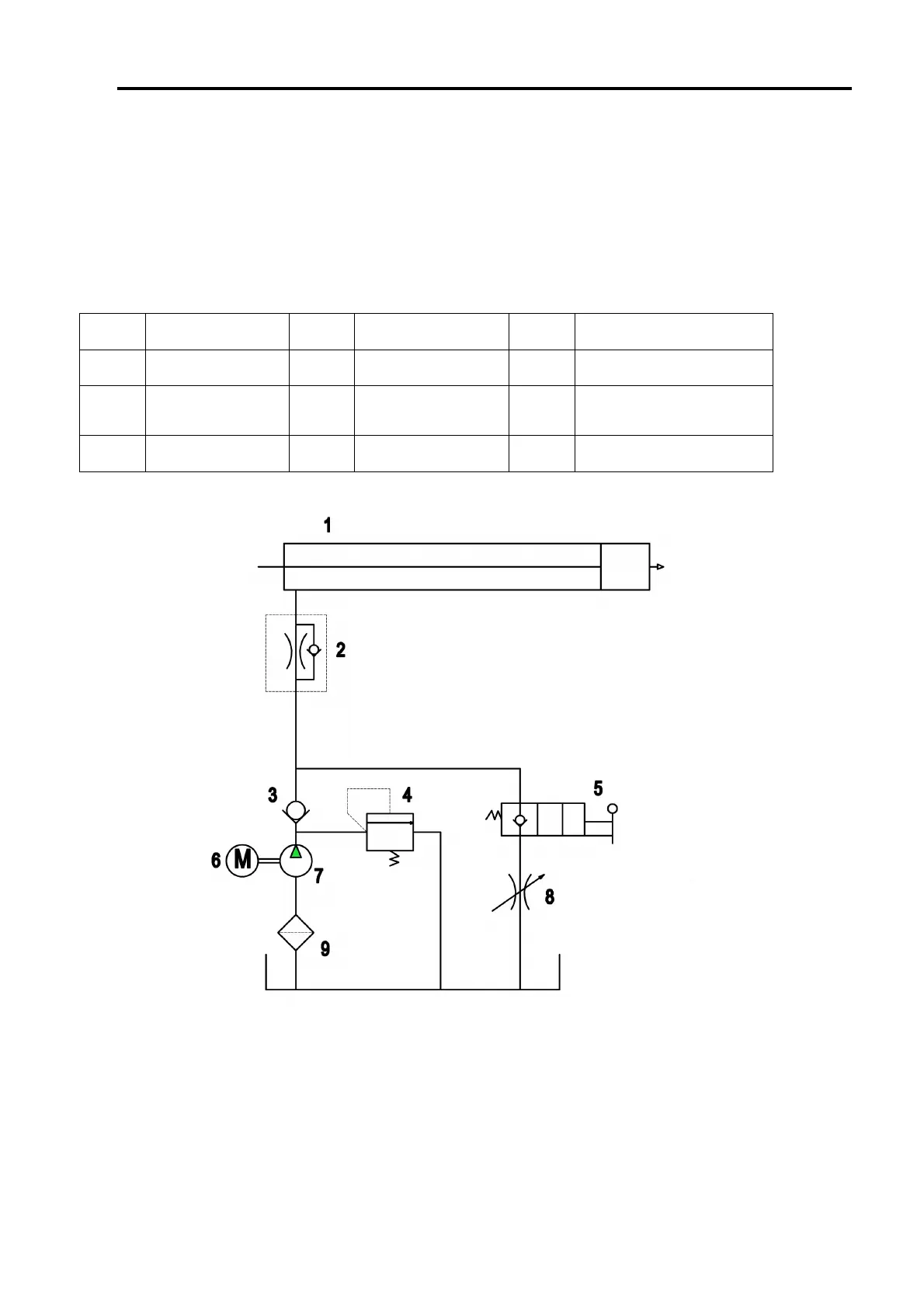

Figure: Hydraulic system for HAPP 27
Item
Name
Item
Name
Item
Name
1
cylinder
4
Overflow valve
7
Gear pump
2
One-way
overflow valve
5
Unloading valve
8
Adjustable throttling
valve
3
One-way valve
6
motor
9
filter
