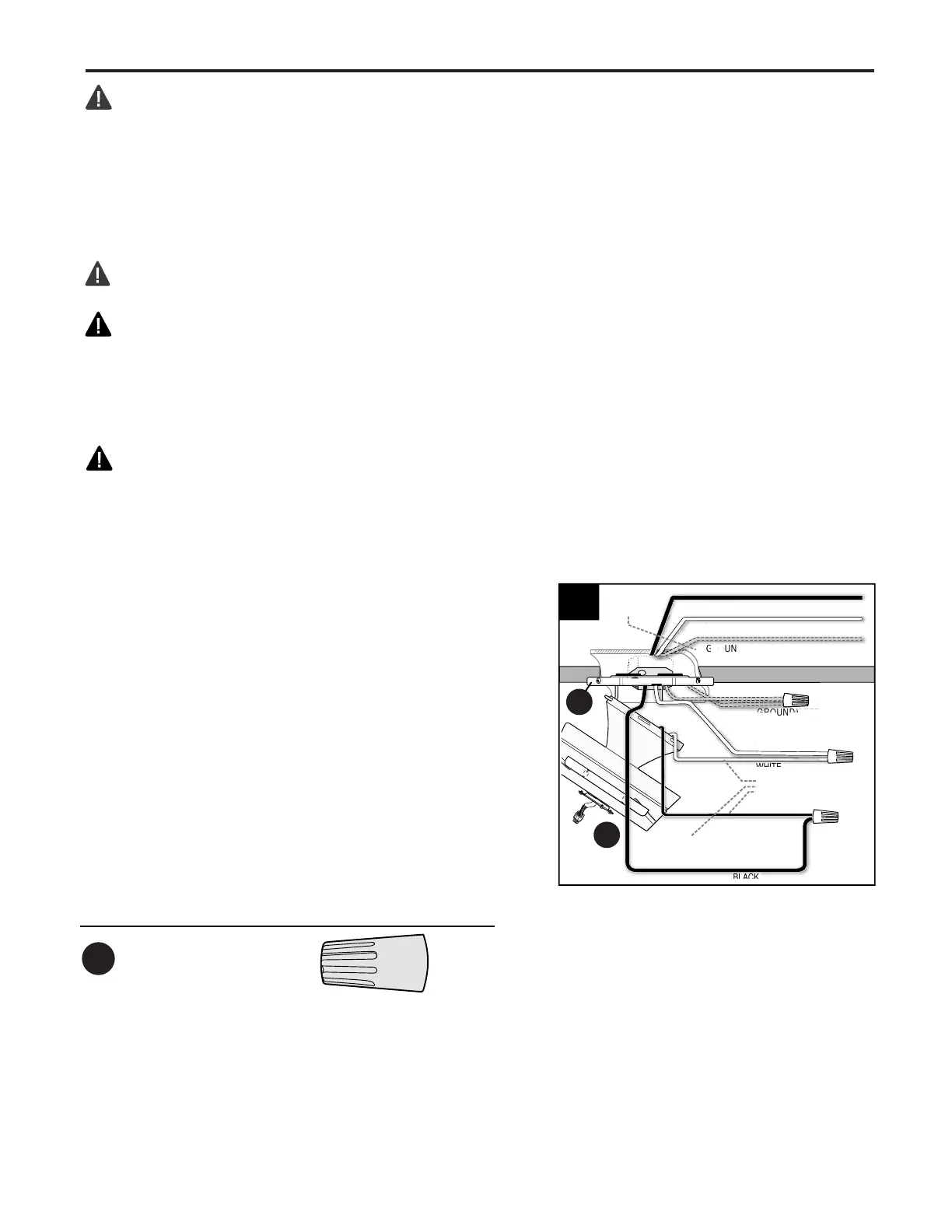

WIRING
9
1.
WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided with
this fan are designed to accept only one 12-gauge house
wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house
wire to connect to the corresponding fan lead wires,
consult an electrician for the proper size wire connectors
to use.
CAUTION: Be sure outlet box is properly grounded and
that a ground (green or bare) wire is present.
IMPORTANT: For each wire connection below,
use one of the wire connectors (CC) provided,
making sure to screw wire connector (CC) on in a
clockwise direction.
Connect BLACK wire from fan to BLACK wire
from ceiling. Connect WHITE wire from fan to
WHITE wire from ceiling. Connect all GROUND
(GREEN) wires together from fan (on motor
assembly (C) and mounting plate (A)) to
BARE/GREEN wire from ceiling.
ROUND/GREEN (BARE)
WHITE
BLACK
B
LA
C
K
W
HITE
R
O
U
N
D/G
REEN
(
BARE
)
GROUND/GREEN
BLACK
WHITE
WHITE
FROM FAN
N
BLACK
WHITE
R
M FA
WHI
TE
G
R
O
U
N
D/GREE
G
R
O
U
N
D/G
WHITE
BLACK
120 V Power
from ceiling
1
C
A
WARNING: The wires from the outlet box must be
connected to a corresponding color of the fan's wires. Be
sure wire colors match before making connections. If
house wires are different colors than referred to in the
following steps, stop immediately. A professional
electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not
included) to control fan speed will cause a loud humming
noise from fan. To reduce the risk of fire or electrical
shock, do NOT use a full range dimmer switch to control
fan speed.
NOTE: Black wire is hot power for fan. White
wire is common for fan and light kit. Green or
bare wire is ground.
Wire Connector x 3
Hardware Used
CC
