Harbor Breeze 0807431 - Wiring; Household and Fan Wire Connections; Securing Wire Connections

9

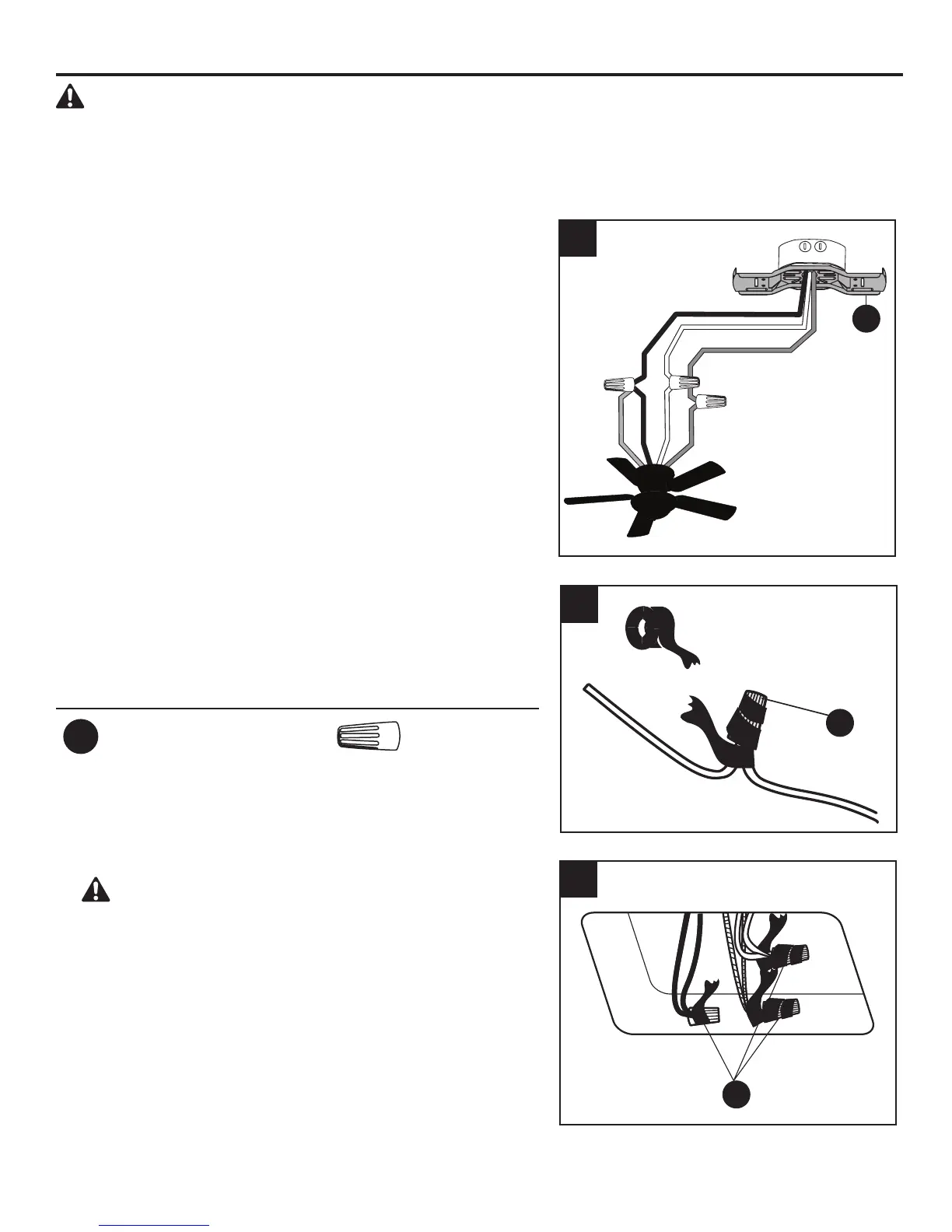

WIRING
WARNING:Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectorsprovided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12 gauges and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
•ConnecttheGreenwirefromthefantotheBare/
Green supply wire.
•ConnecttheWhitewirefromthefantotheWhite
supply wire.
•ConnecttheBlackandBluewiresfromthefantothe
Black supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (DD).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The
Blue wire is hot power for light. The Green wire is the
ground wire. If household supply wires are different
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
Hardware Used
DD
Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (DD) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (DD) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Green
and White wire connections on the opposite side of the
outlet box from the Black and Blue wire connections.
1
3
DD
DD
A
2
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
