12

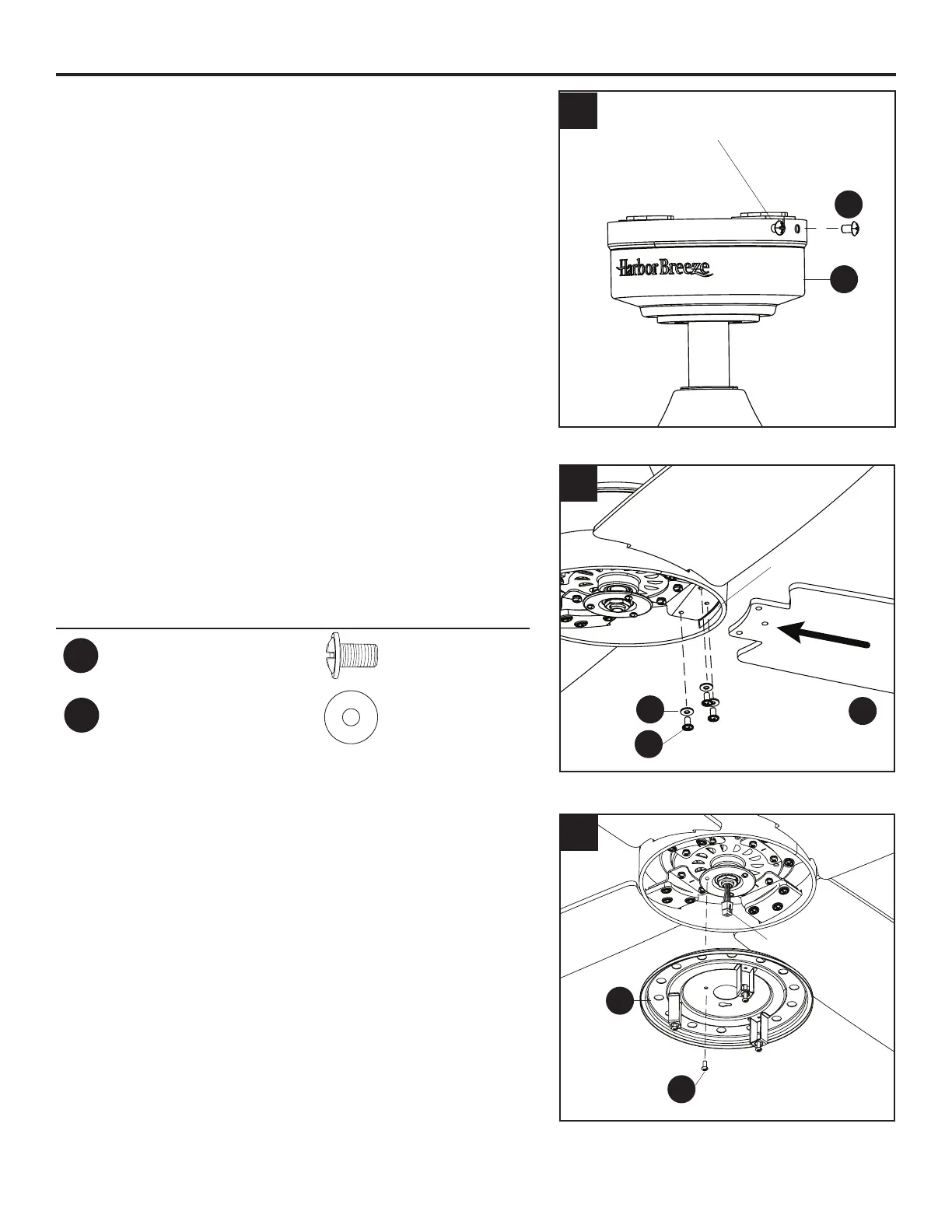

FINAL INSTALLATION
1. Align the canopy (E) over the loosened mounting
bracket screws (G) preassembled on mounting
bracket (D). Place the keyhole slot of the canopy (E)
onto the mounting bracket screws (G) and rotate the
canopy (E) clockwise. Secure the canopy (E) with
the mounting bracket screws (G) previously removed
(Step 4, page 8). Tighten all mounting bracket screws
(G) securely.
2. Insert blade (Q) through slot in the side of the motor
assembly (I). Align the holes of one blade (Q) with
three blade screw holes in underside of the motor
assembly (I). Secure blade (Q) with three blade
screws (BB) and blade washers (CC). Repeat for the
remaining blades (Q).
Hardware Used
BB
Blade Screw x 12
Blade Washer x 12
3. Remove one and loosen the other two tter plate
screws (K) but do not remove from tter plate (K).
Feed the 6-pin connector through center hole in light
pan. Align the two key slots in the light pan (M) with
the loosened tter plate screws (K). Place the light
pan (M) over the two screws and turn the light pan (M)
clockwise. Then tighten the two tter plate screws (K).
Re-install the previously removed tter plate screw (K)
and tighten rmly.
1
2
E
Q
M
K
CC
BB
G
3
CC
9-Pin Connector
Slot
Keyhole
Slot
To Next Page
