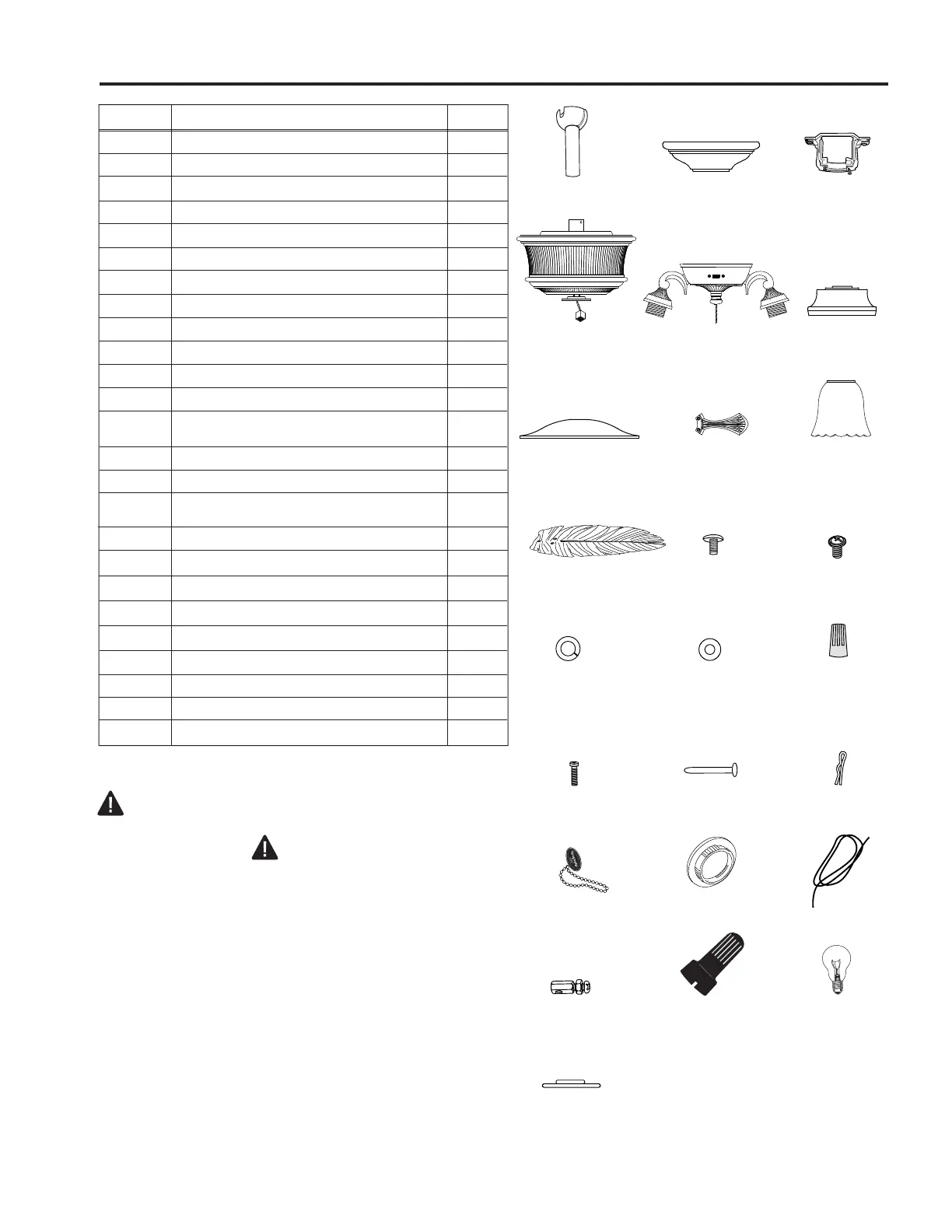

PACKAGE CONTENTS
Part Description Quantity
A Downrod 1
B Canopy 1
C Mounting Bracket (attached to canopy) 1
D * Motor Housing 1
E Switch Housing 1
F Switch Housing Plate 1
G Yoke Cover 1
H Blade Arm 5
I Glass Shade 4
J Blade 5
K Motor Screw (
in motor and in hardware pack) 10
L 3/16 Blade Screw (in hardware pack) 15
M 5.4M/M Lock Washer (in motor 10
and attached to motor screw in hardware pack)
N Blade Washer (in hardware pack) 15
O E3 Wire Connector (in hardware pack)
4
P Canopy Mounting Screw 2
(attached to mounting bracket)
Q Pin (in motor housing yoke) 1
R Clip (attached to pin) 1
S Pull Chain Extension (in hardware pack) 1
T
Socket Ring (pre-attached to socket) 4
U Safety Cable (pre-attached to motor) 1
V
Vice (on safety cable)
1
W
Socket Ring Tool (in hardware pack) 1
X* Candelabra Base Bulb 4
Y Canopy Cover (in hardware pack)
1
ABC
D
E
F
G
J
K
M
N
O
P
NOTE:
For replacement parts, call our customer service department
at 1-800-527-1292, 8:30 a.m.-5:00 p.m., CST, Monday-Friday.
When ordering parts, please have the Model # or Item # of the
fan available, which can be found on page 1.
* The parts denoted with an asterisk (*) above are NOT
replaceable.
H
L
I
IMPORTANT REMINDER: You must use
the parts provided with this fan for proper
installation and safety.
QR
S
TU
V
W
X
Y
