A
10
4.
2.
3.
3
A
M
L
Set Screw
and Nut
2
B

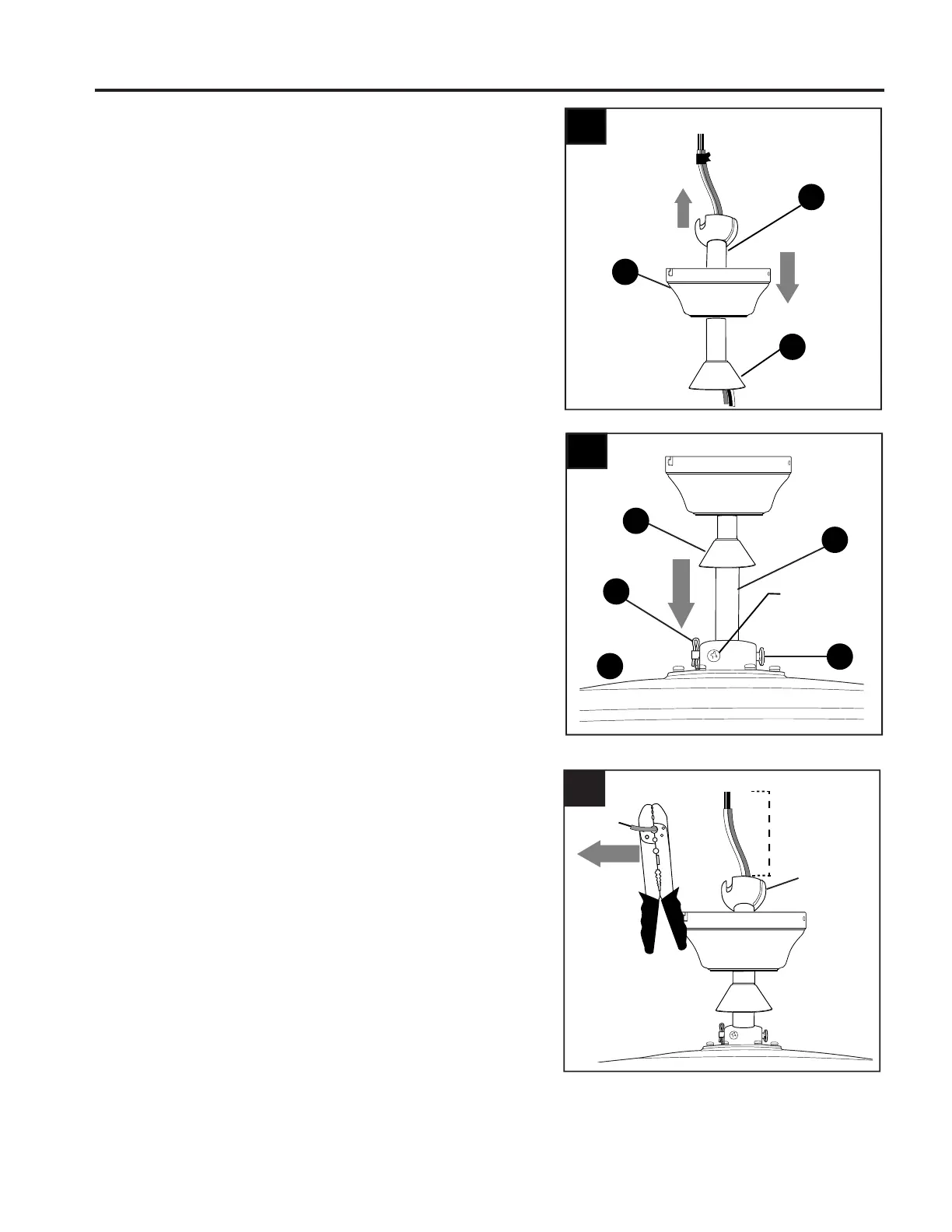

DOWNROD-STYLE FAN MOUNTING
Insert downrod (A) through canopy (B), and yoke
cover (E). Thread wires from motor housing (D) up
through downrod (A).
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
E
Slip downrod (A) into yoke, align holes and
re-install pin (L) and clip (M). Tighten set screws
and then tighten nuts. Slide yoke cover (E) down
until it rests on top of motor housing (D).
D
E
4
Hanging
Ball
8 in.
To Next Page
