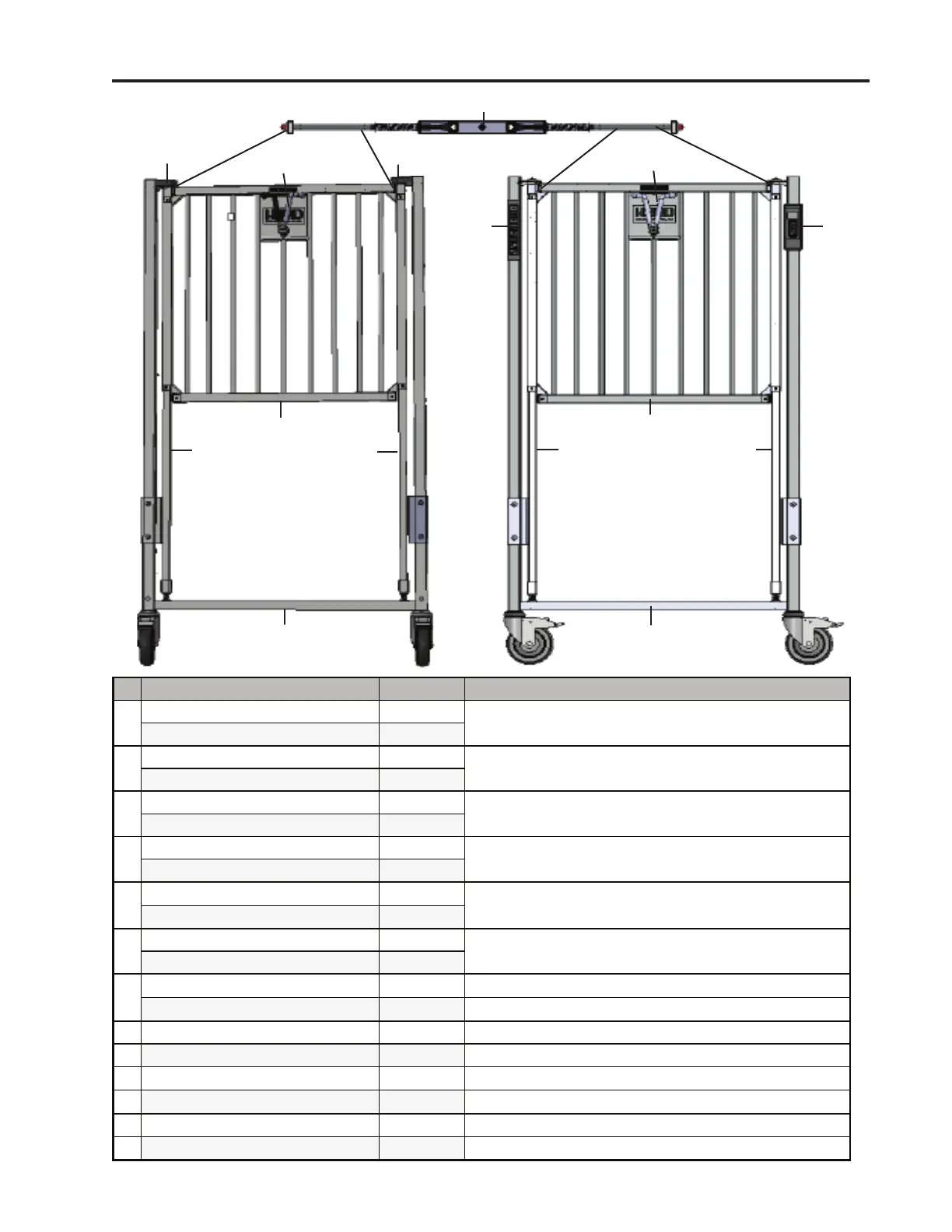

HEAD & FOOT END ASSEMBLY DIAGRAM & PARTS LIST
6
8
8
9
Note: End Rails have same sticker confi guration as the Side Rails.
Head Assembly
Foot Assembly
1
2
3
3
4
5
7
7
7
7
9
10
12
# Part Description Part # Notes
1
Head Assembly- 30” wide crib 90754
Complete Head Assembly with Gate and Slide Rods
Head Assembly- 36” wide crib 90274
2
Foot Assembly- 30” wide crib 90053
Complete Foot Assembly with Gate and Slide Rods
Foot Assembly- 36” wide crib 90290
Teething Bars- 30” wide crib *942 TB
Set of 4- not
shown.
Protective snap-on covering for the tops of the rails
Teething Bars- 36” wide crib *752 TB
3
Gate only- 30” crib, head or foot 90791
Gate only- 36” crib, head or foot 90061
4
Weld assembly- 30” head end 82893
U Shaped Frame- No Gate or Slide Rods
Weld assembly- 36” head end 82898
5
Weld assembly- 30” foot end 82892
U Shaped Frame- No Gate or Slide Rods
Weld assembly- 36” foot end 82899
6
Gate Trigger Assembly- 30” end 89267
Gate Trigger Assembly- 36” end 89132
7 Slide Rod 89197 See slide rod assembly for all components
8 Johns Hopkins Handle Assembly 72115 See side rail assembly for all components
9 Dual Crib Eye Covers 60299
10 Scale Control 63202
11 Scale Control Guard 13306 Not visible due to angle of diagram
12 Staff Control 63258
To Next Page
