HARD 741-CPGP - Slide Rod Assembly Diagram and Parts

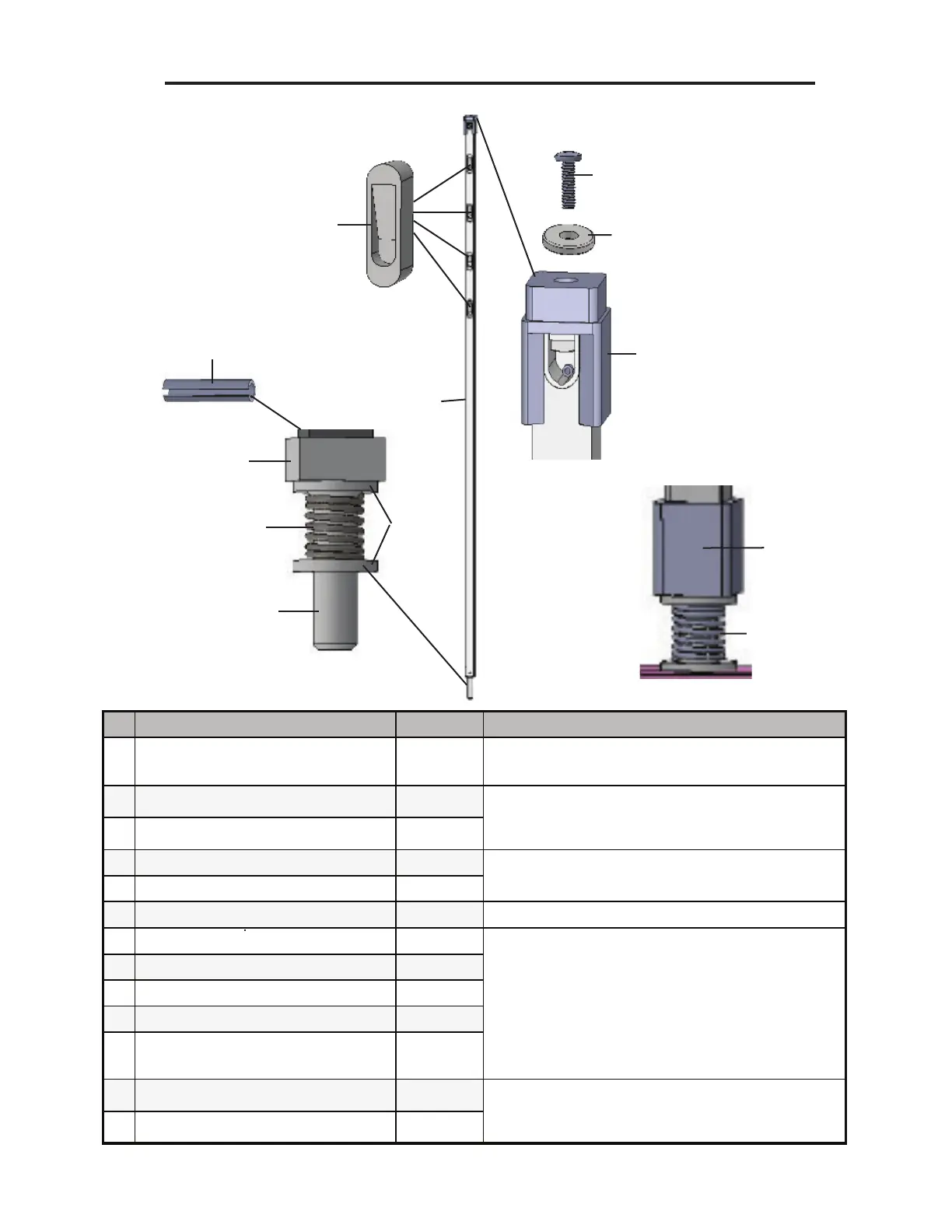

SLIDE ROD ASSEMBLY DIAGRAM & PARTS LIST
1
2
4
5
6
7
8
9
10
11
12
13
# Part Description Part # Notes
1 Slide Rod 89197 Complete slide rod assembly as shown
2 Slide Rod Cup N/A
Not sold separately. If this part breaks, please
order a new slide rod. Part is riveted on.
3 Rivet- not shown N/A
4 Screw 63392
For top of slide rod
5 Nylon Washer 11531
6 Slide Rod Inserts 11567
7 Slide Rod Adaptor 11576
Parts also available in hardware bag 72078.
Parts for one slide rod.
8 Plastic Washer 1”x.545”x1/8” 11545
9 Bumper Spring- 60” sides 63403
10 Plastic Spacer- 60” sides 11750
11
1/8” Spring Pin-
to fasten slide rod adaptor
63834
12 Bumper Spring- 30” or 36” gate 63845
Parts also available in hardware bag 72080
including #7-9. Parts for one slide rod.
13 Plastic Spacer- 30” or 36” gate 11593
13
