IntelliTrack rear sensor calibration:
At the factory of the angle of the drawbar is measured and there should be a label with the
angel inside the JobCom lid of the sprayer. If you find the label with the angel it is not
necessary to do the following measurement with the protractor, you can just put in the angle.
If you do not find the label with the angel do following measurement:
E8.4.2.2.

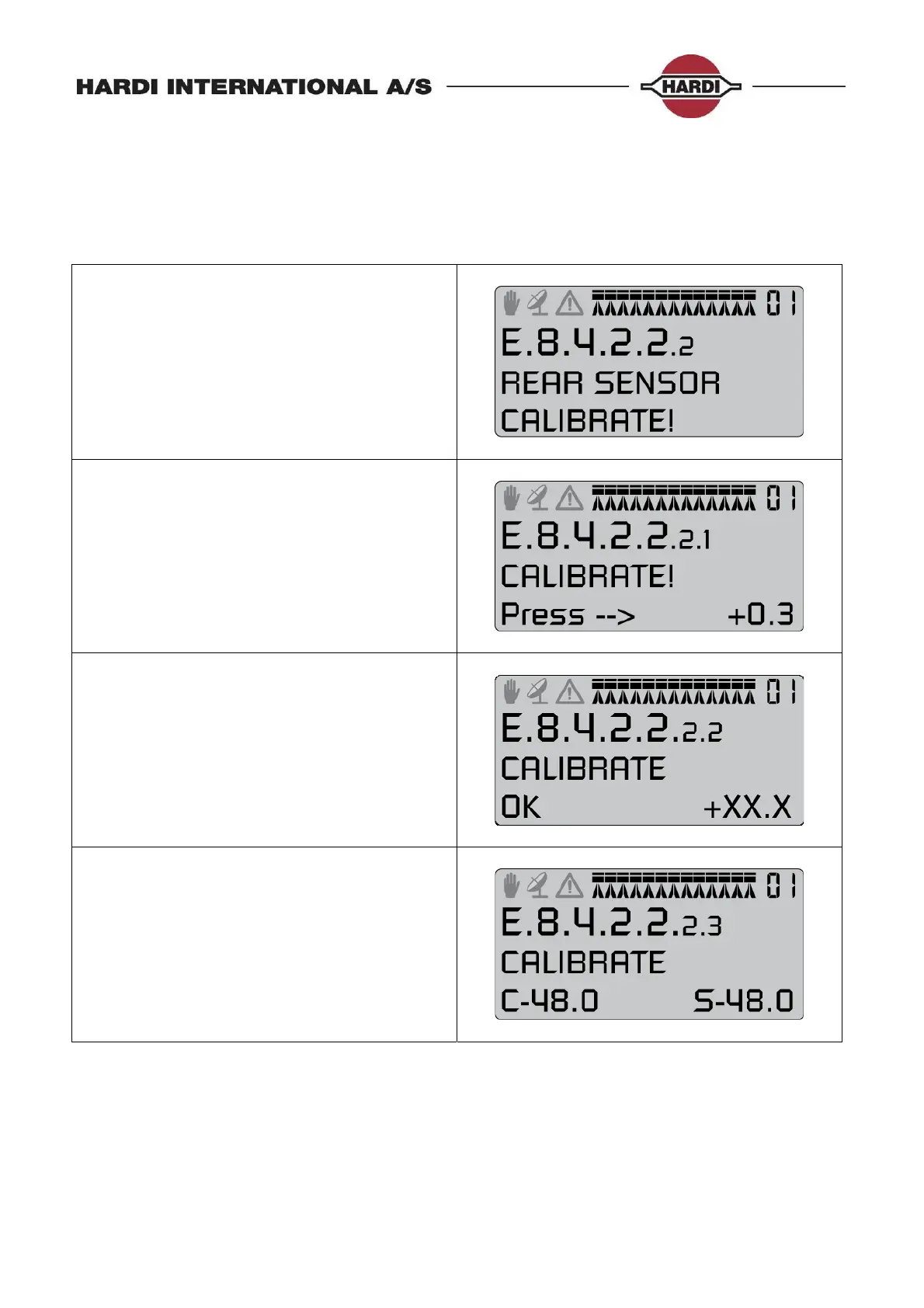

2 CALIBRATE
Open menu E.8.4.2.2.2 to program the
controller
Turn the drawbar to full right
E8.4.2.2.2.1
Program the measured angle in the
controller
E8.4.2.2.2.2
This is the measure result for right angle.
