Following recommended lubricants are to be used.
Lubricating points Lubricant
Ball bearings Universal Lithium grease,
NLGI No. 2
SHELL RETINAX EP2
CASTROL LMX GREASE
Slide bearings Lithium grease with
Molybdenumdisulphide or
graphite
SHELL RETINAX HDM2
CASTROL MOLYMAX
Oil lub. points TOTAL Transmission TM
SAE 80W/90
Castrol EPX 80/W90
SHELL Spirax 80W/90
Mobil Mobilube 80W/90
Glide shoes Use stearin or a non-greasy
type of wax
Always store lubricants clean, dry and cool - preferably
at a constant temperature - to avoid contamination from
dirt and condensed water.
Keep oil filling jugs, hoppers and grease guns clean, and
clean the lubricating points thoroughly before lubricating.
Avoid skin contact with oil products for longer periods.
NOTE! If the sprayer is cleaned with a high pressure
cleaner or fertiliser has been used, lubrication of all
sections is recommended.
A
B
C
D
Operating hours
B - 50hB - 50h
B - 50hB - 50h
B - 50h

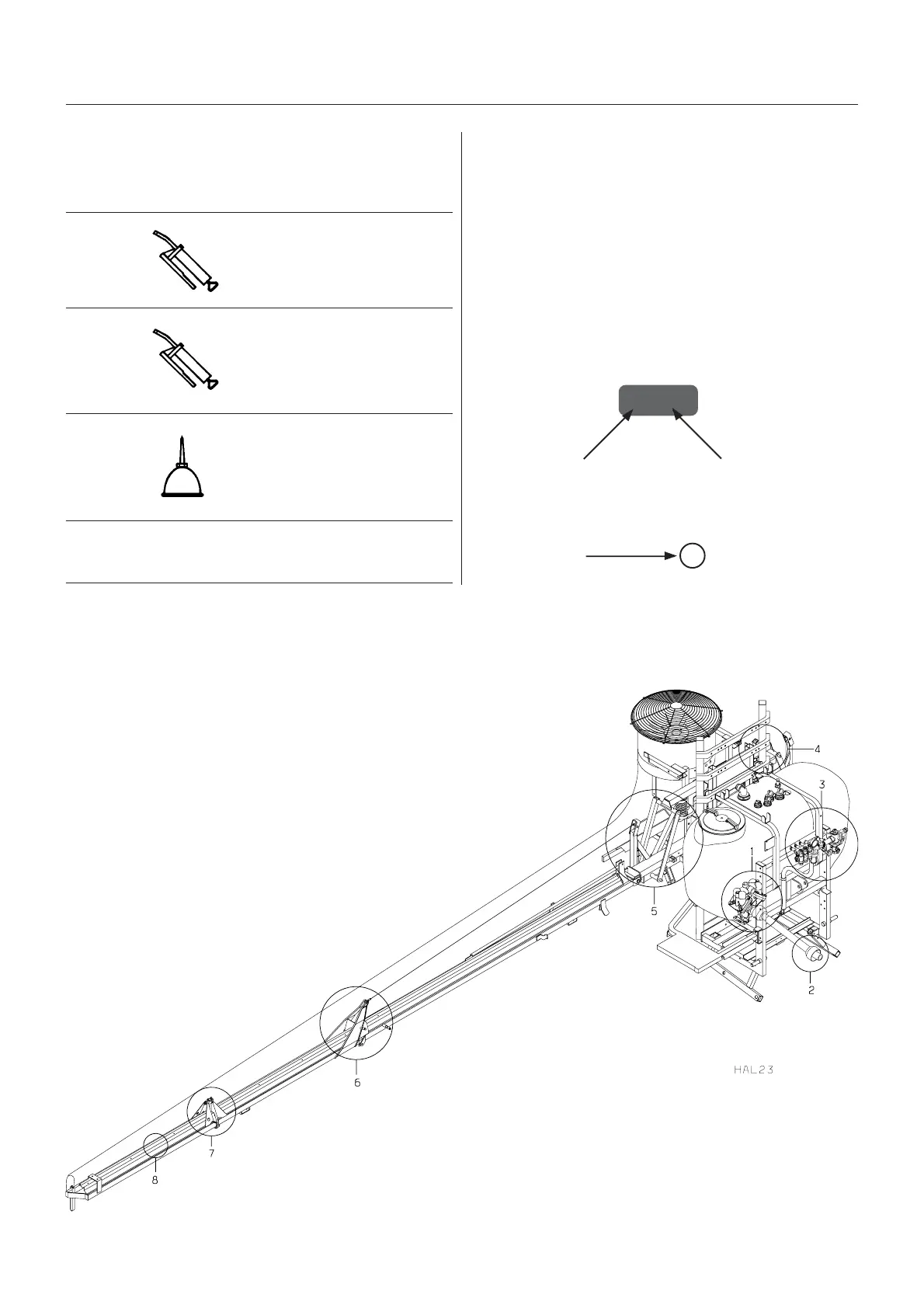

Type of lubricant
(see scheme to the left)
Position at the
sprayer
3
Old type MASTEROld type MASTER
Old type MASTEROld type MASTER
Old type MASTER
