GB 14 02 02 MA
Maintenance
RR
RR
R
ee
ee
e
pair ofpair of
pair ofpair of
pair of
the ba the ba
the ba the ba
the ba
gg
gg
g
If the air bag is damaged it can be repaired by sewing or
gluing a patch on it. A repair kit is available; HARDI ref.
no. 728746.
Oil coolerOil cooler
Oil coolerOil cooler
Oil cooler
The cooler under the fan must be inspected externally at
least yearly and cleaned if necessary. Remove the bag
and check that the cooler ribs are clean. A pressure
cleaner can be used to clean the ribs. When the bag is
replaced, unfold the boom to check it is centred and
angle the air outlet forward to check there is no slack in
the bag.
HyHy
HyHy
Hy
drdr
drdr
dr
aulic traulic tr
aulic traulic tr
aulic tr
ansmissionansmission
ansmissionansmission
ansmission
If the hydraulic motor has been dismantled or replaced,
the following start-up procedure has to be done:
1. The boom needs
to be unfolded so
choose a location
where this is possible.
2. Remove the snap
coupler from hy. motor the
drain line and place the
hose in a small
container. Set the
valve for blower fan
revolutions at or
near minimum and with the
tractor engine at idle, unfold the
boom.

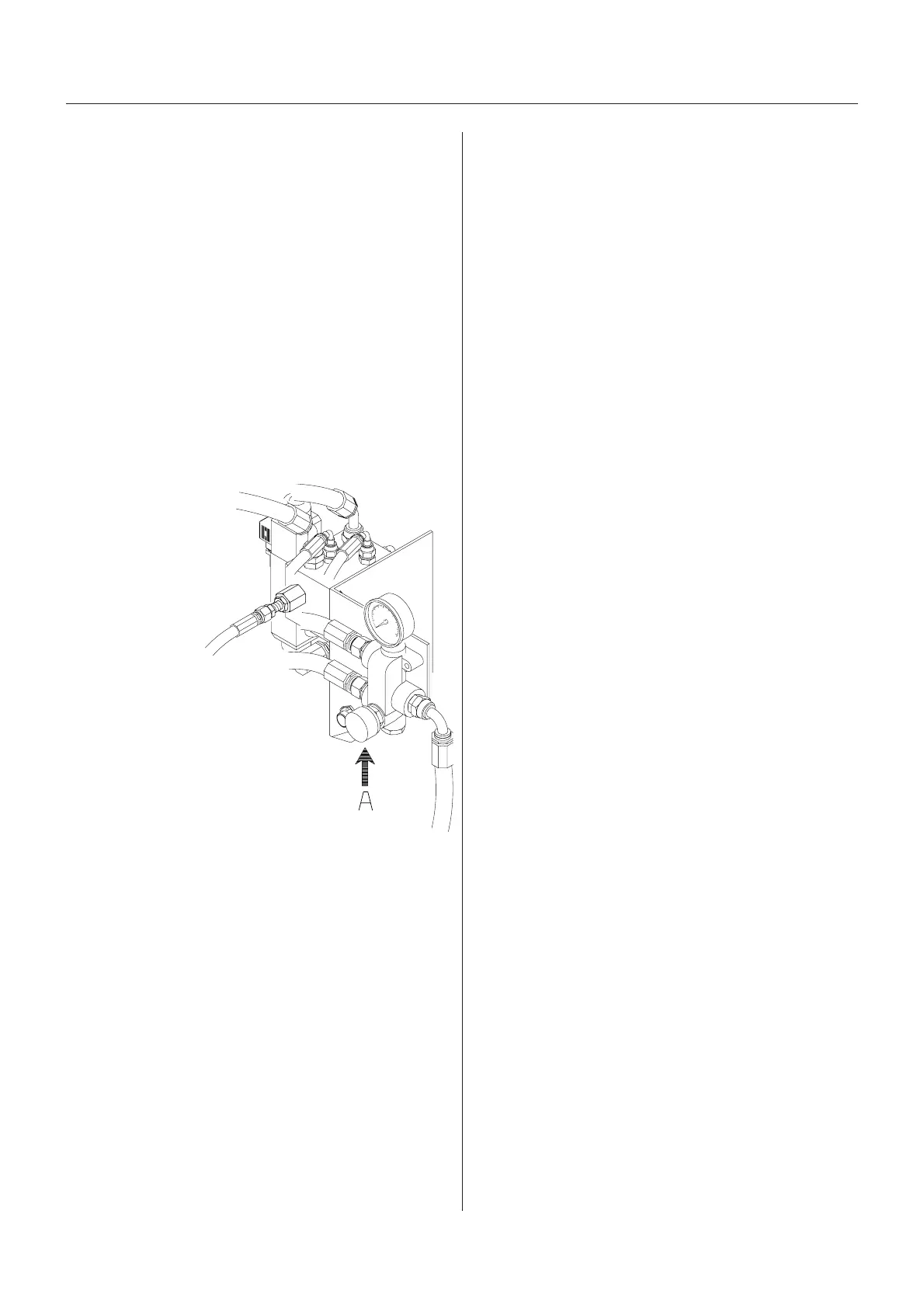

3. Adjust valve A for blower fan
revolutions so the fan rotates between
300 to 500 r/min for 5 minutes or until oil
comes from the drain line. The sprayer
hydraulics are now filled with oil and the
valve can be set to maximum and tractor r/min in-
creased to check for possible leakage.
4. Check oil pressure filter (if fitted) indicates green (not
clogged).
5. Replace the drain line snap coupler. Check the tractor
hydraulic oil level and top up if needed.
