4 - Sprayer setup
43

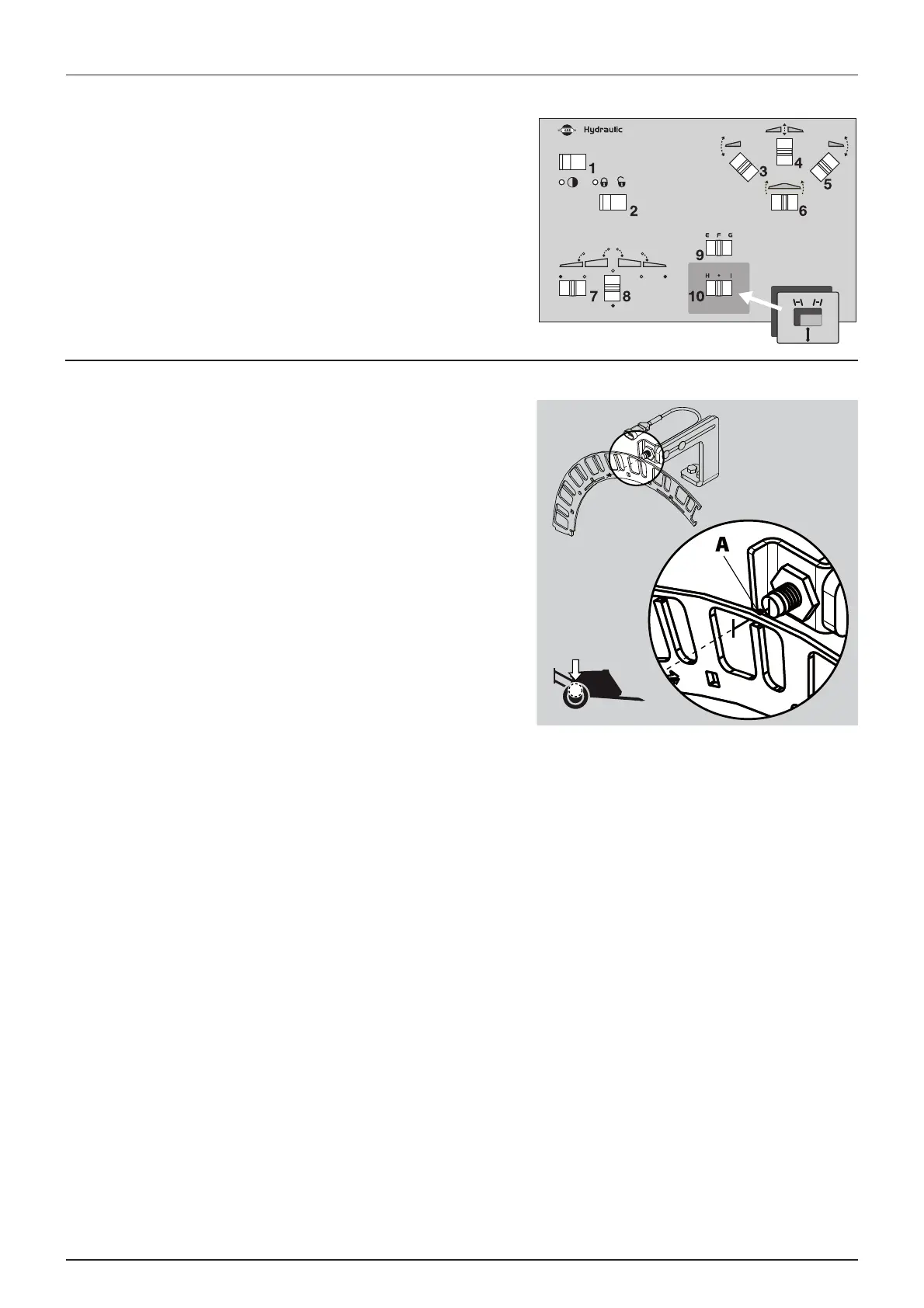

Label for manual steered version (optional)
When having a manually steered model of the sprayer, there is no
hydraulic controls for the steering at hydraulic control unit. So to control
the steering then one of the optional switches (10) on the hydraulic
control unit is used.
• Place the “Manual steering” label (part no. 72547600) on the
control unit at the sign originally meant for optional function (10).
Speed transducer for sprayer
The speed transducer and speed ring are located at the inside of the
sprayers right wheel.
The sensor is an inductive type that requires a metallic protrusion to pass
by it to trigger a signal. To trigger a speed ring is used. It should be
adjusted so transducer is placed to the centre of the holes in the speed
ring (vertical direction). Recommended distance between protrusion
and transducer (A) is 3 to 6 mm. Check this at the entire circumference.
μ
ATTENTION! Correct fitting is indicated by continuous flashing
from transducer when the wheel rotates.
