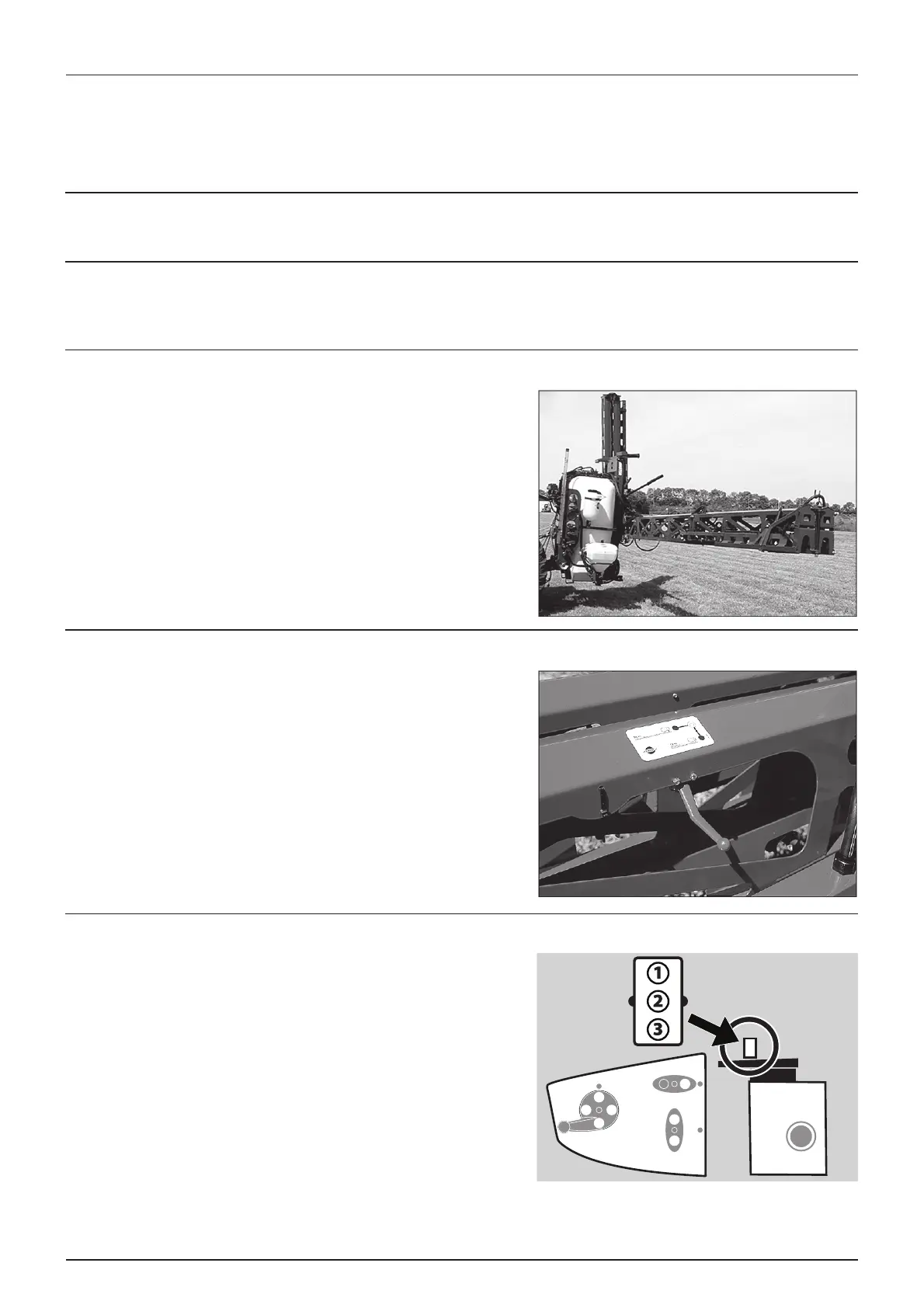

Hydraulic slanting control (optional)
The hydraulic boom slanting control (6) enables slanting of the entire boom hydraulically. This is advantageous when
spraying across hillsides.
Reset position to neutral (midway) before folding the boom.
Boom tilt function
The boom tilt function controls (3) and (5) enables you to adjust the boom height individually in right and left-hand side.
Half boom width
It is possible to spray with boom only half unfolded. In case this is needed then only unfold inner sections by pressing swich
(3) and (5) downwards. On the spray control unit also turn off the spray sections placed on outer boom sections.
Single-sided folding
1. Activate hydraulic control lever.
2. Raise boom half-way to the top (minimum).
3. Unfold either right or left intermediate section.
4. Unfold either right or left outer section.
5. Lower boom to desired working height.
μ
ATTENTION! Do not unlock trapeze!
Alternative boom widths - ‘16-12’ kit (optional)
To disable folding of outer sections this kit is fitted to the outer cylinders
of the boom wings.
Picture shows ‘16-12’ kit mounted to boom wing with tap for ON/OFF
position.
Night Spraying Light selector switch (optional)
The boom and work lights selector switch has three positions:
1. Boom lights ON
2. Lights OFF (neutral position)
3. Work light ON
It is recommended to switch OFF the rear lights of the tractor in order to
reduce power consumption and avoid reflection.
μ
ATTENTION! If preferred the work lights can be controlled from
the tractor cabin. Connect from J4 in the work lights junction box
to the optional function on the spray control unit.
