4 - Sprayer setup
52
Air activated brakes (optional)
This system requires a tractor with compressor and air brake system with
outlet(s) for trailer brakes.
If the air hose(s) are disconnected with air in the brake air tank, control
pressure will be dumped and the brakes will engage fully.

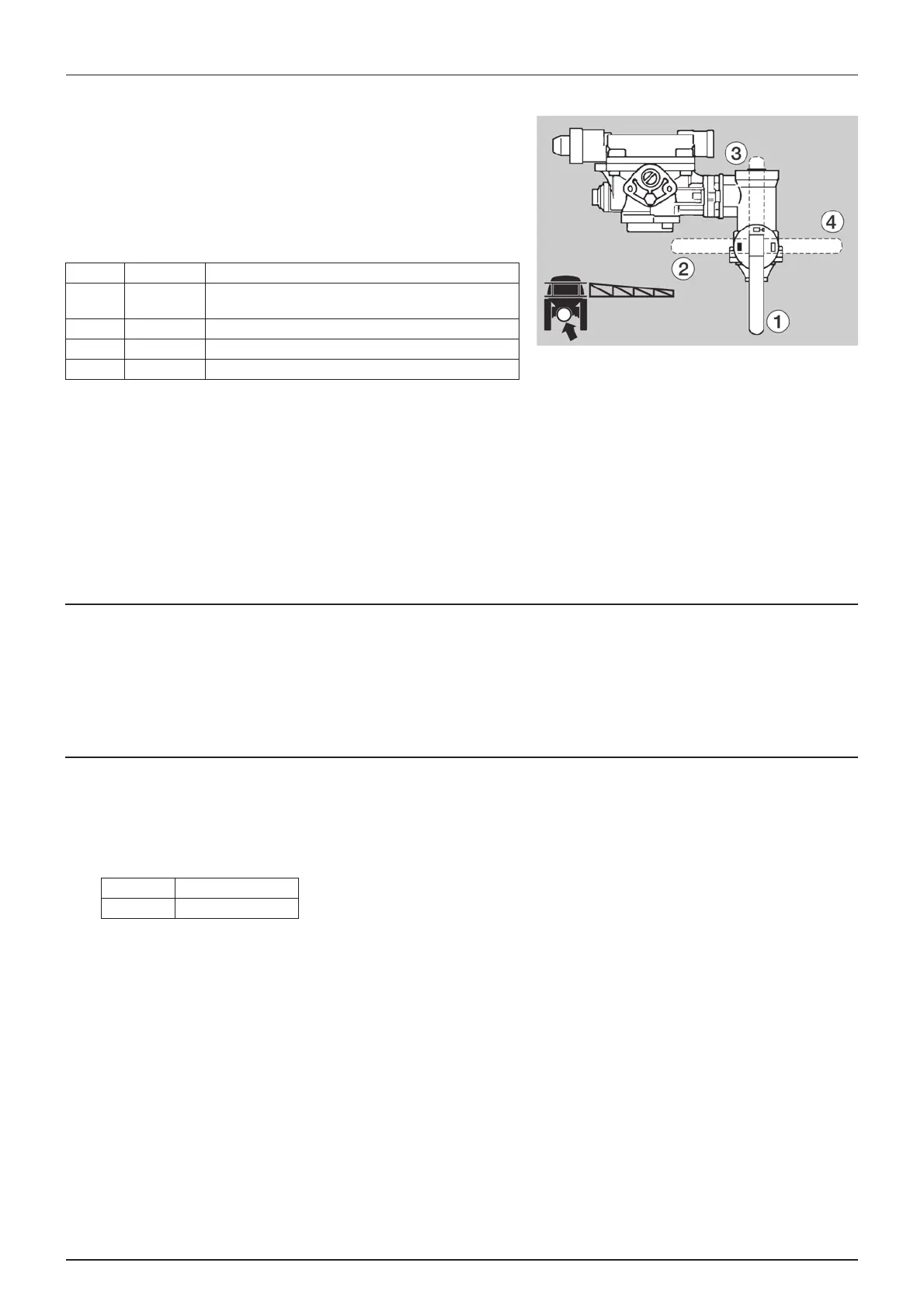

If the sprayer e.g. must be moved, the load apportioning valve must be
set. Remember to reset the handle to brake position again afterwards.
*If axle load exceeds 5250 kg. position 2 is required to be used.
μ
ATTENTION! When parking the sprayer, always engage the parking brake, as the air brakes will only be engaged as
long as there is air in the tank! Cover the couplings with the dust flaps when hoses are disconnected.
μ
ATTENTION! The load apportioning valve must be set at the position corresponding to the load on the trailer, for
obtaining optimal air pressure to the trailer brakes.
±
WARNING! Driving with wrong load apportioning valve setting, will make the brakes under- or overapply, which can
cause hazardous situations.
Single-line brakes (optional)
1. Flip the snap coupler protection flap away.
2. Connect the snap coupler to the tractor outlet (black).
3. Let the compressor fill the sprayer’s air reservoir.
4. Check brake circuit for leaks.
Dual-line brakes (optional)
1. Flip the snap coupler protection flaps away.
2. Connect the two snap couplers for supply and control to the tractor outlets. The couplers are colour coded and
secured against incorrect attachment:
3. Let the compressor fill the sprayer’s air reservoir.
4. Check brake circuits for leaks.
Position State Use
1 Relieved Move sprayer with air in the tank and without the air hose(s)
connected to the tractor. Disengages the brakes.
2 Full Use when driving with full tank.
3 Half full* Use when driving with tank half full.
4 Empty Use when driving with empty tank.
Red Supply line (RH)
Yellow Control line (LH)
