AVR
4
Connections
Connect Your Speakers
How to use the AVR speaker terminals:
1. Unscrew Cap 2. Insert Bare Wire 3. Tighten Cap
Always connect the colored (+) terminal on the AVR to the (+) terminal on the speaker
(usually red), and the black (–) terminal on the AVR to the (–) terminal on the speaker
(usually black).
IMPORTANT: Make sure the ( + ) and ( – ) bare wires do not touch each other or the other
terminal. Touching wires can cause a short circuit that can damage your AVR.

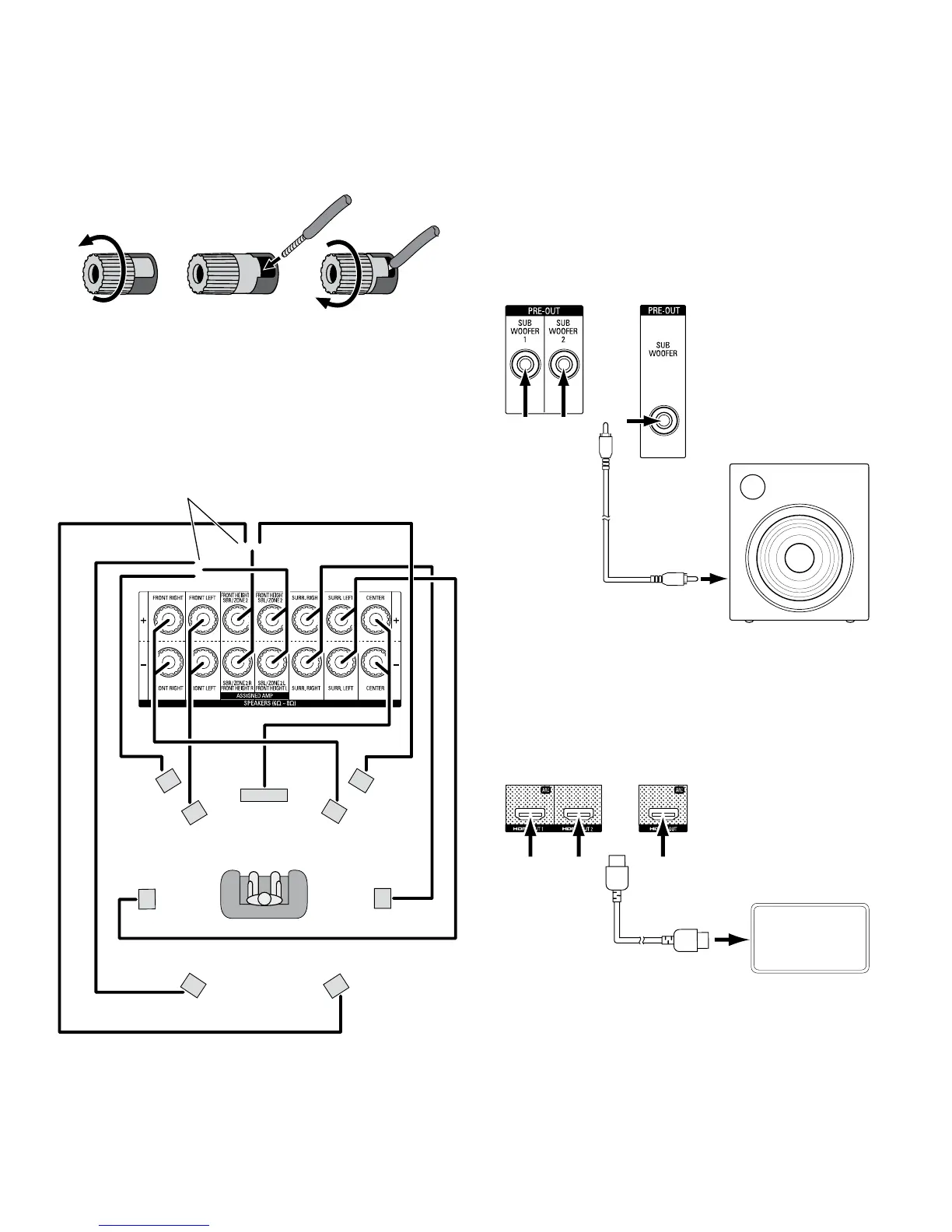

Connect the speakers as shown in the illustration.
SL
FHL
SR
FHR
FRFL
C
SBL SBR
AVR 1710/AVR 171 Only:
Connect Surround Back L/R Speakers
-OR- Front Height L/R Speakers Here
Connect Your Subwoofer
Use a single RCA audio cable to connect your subwoofer to AVR’s Subwoofer
Pre-Out connector, as shown in the illustration below. (For the AVR 1710/AVR 171 you
can use either the Subwoofer 1 or Subwoofer 2 connector when you’re using a single
subwoofer, or you may connect two subwoofers for increased bass performance in larger
listening rooms.) Consult your subwoofer’s user manual for specic information about
making connections to it.
AVR 1710/
AVR 171
AVR 1610/AVR1510/
AVR 161/AVR 151
Powered
Subwoofer
Single
RCA Audio Cable
(not supplied)
Use either
connector
Connect Your TV or Video Display
If your TV has an HDMI connector: Use an HDMI cable (not included) to connect it to
the AVR’s HDMI Out connector. (For the AVR 1710/AVR 171 you can use either HDMI Out
connector.) You do not need to make any other connections to your TV from the AVR or
from any of your video source components.
AVR 1710/AVR 171
AVR 1610/AVR 161/
AVR 1510/AVR 151
TV
HDMI Cable
(not supplied)
Use either
connector
AVR 1710/AVR 171 only: Connect a single TV to the HDMI Out 1 connector. If you have a
second TV you can connect it to the AVR’s HDMI Out 2 connector. Both TVs will display the
same picture, but the HDMI Out 2 connector will not output the AVR’s on-screen display
and does not have Audio Return Channel capability (see below).
Note: If your TV is equipped with the HDMI Audio Return Channel function, you can feed
its sound to the AVR via the HDMI Out connector’s Audio Return Channel, and it will not
require additional audio connections to the AVR. (For the AVR 1710/AVR 171 the ARC is
available only on the HDMI Out 1 connector.)
