Harman Kardon AVR 1565 Quick Start Guide

2
Introduction
Thank you for choosing a Harman Kardon
®
product!
This quick-start guide contains all the information you need to connect and set up your
new Harman Kardon
®
audio/video receiver.
To conserve our natural resources, your AVR does not include a printed user manual.
A user manual containing complete information about operating all of your new AVR’s
features is available at our Web site. Go to www.harmankardon.com and download the
AVR 1565/AVR 1566 Owner’s Manual.
Place the AVR
• Place the AVR on a rm and level surface. Be certain that the surface and any mounting
hardware can support the AVR’s weight.
• Provide proper space above and below the AVR for ventilation. If you install the AVR in
a cabinet or other enclosed area, provide cooling air within the cabinet. Under some
circumstances, a fan may be required.
• Do not obstruct the ventilation slots on the top of the AVR or place objects directly over them.
• Do not place the AVR directly on a carpeted surface.
• Do not place the AVR in moist or humid locations, in extremely hot or cold locations, in areas
near heaters or heat registers, or in direct sunlight.

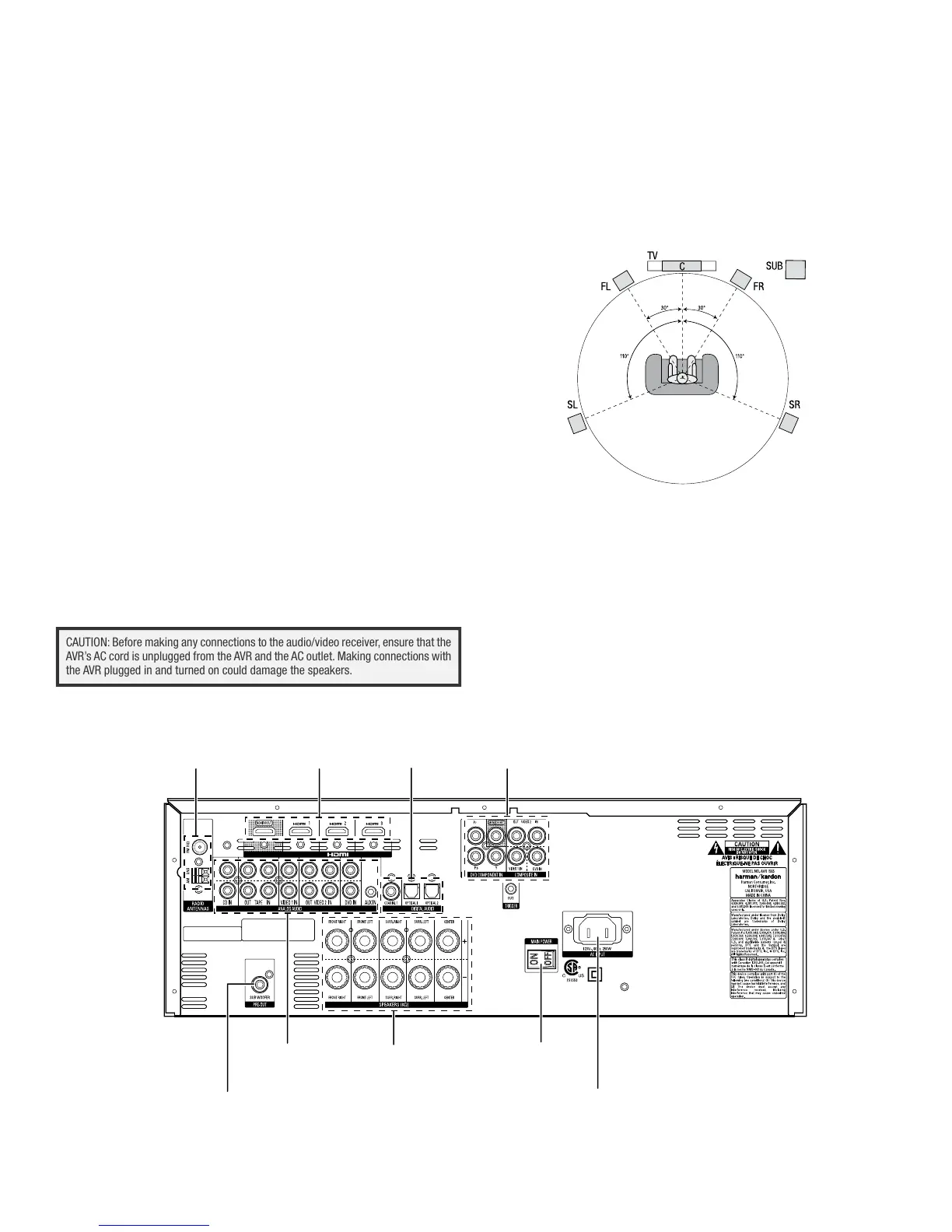

Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s
directions and the layout of your listening room. Use the illustration below as a guide.
For more detailed speaker-placement information, download the complete AVR 1565/
AVR 1566 Owner’s Manual from www.harmankardon.com.
AVR 1565/AVR 1566
Introduction, Speaker Placement and Connections
Connections
CAUTION: Before making any connections to the audio/video receiver, ensure that the
AVR’s AC cord is unplugged from the AVR and the AC outlet. Making connections with
the AVR plugged in and turned on could damage the speakers.
AVR 1565/AVR 1566 Rear-Panel Connections
Speaker
Connectors
HDMI
®
Connectors
Analog Audio
Connectors
Subwoofer
Connector
AC Input
Connector
Main Power
Switch
Radio Antenna
Connectors
Digital Audio
Connectors
Analog Video
Connectors

Harman Kardon AVR 1565 Specifications

General

Impedance	75 Ω
Receiver type	-
Frequency range	10 - 130000 Hz
Audio output channels	- channels
Signal-to-Noise Ratio (SNR)	45 dB
Power output per channel (1KHz@8 Ohm)	70 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	3
Number of HDMI outputs	1
Ethernet LAN	No
AM band range	520 - 1720 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
3D	Yes
Analog signal format system	NTSC
HDMI version	1.4a
Product color	Black, Grey
Volume control	Rotary

Weight and Dimensions

Depth	435 mm
Width	440 mm
Height	165 mm
Weight	4127 g
