Harman Kardon AVR 161S User Manual

AVR

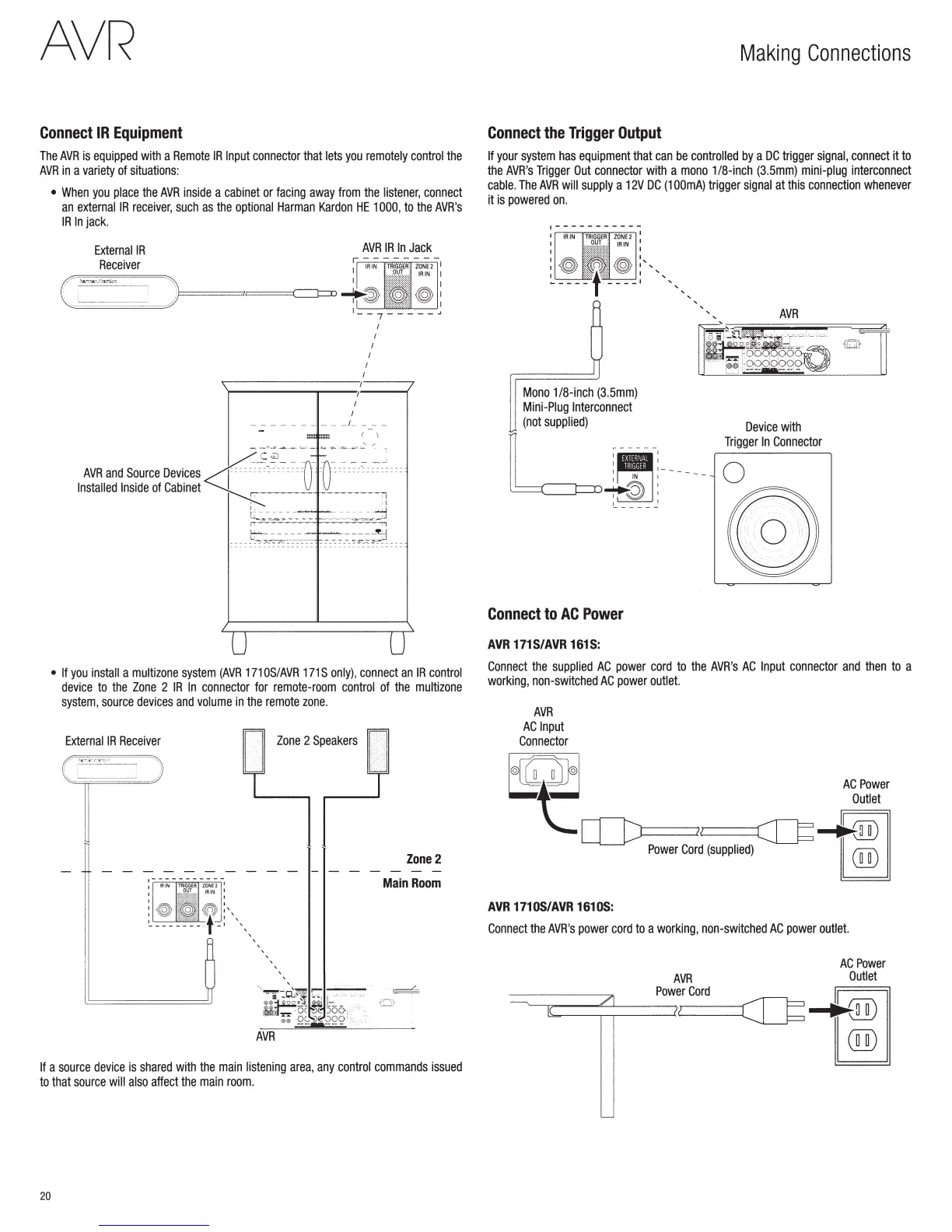

Connect IR Equipment
The AVR is equipped with a Remote IR Input connector that lets you remotely control the
AVR in a variety of situations:
• When you place the AVR inside a cabinet or facing away from the listener, connect
an external IR receiver, such as the optional Harman Kardon HE 1000, to the AVR's
IR In jack.
External lA
Receiver
')Jf===
_A
u
AVR IR In Jack
:::::: ::::::
I
I
.. I -
..
I 1
' ..
- c-.-o ... -----~ --.. -.- ~· - .. . '"'=~-.,.;..=c C-.
u
• If you install a multizone system (AVR 1710S/AVR 171S only), connect an IR control
device to the Zone 2 IR In connector for remote-room control of the multizone
system, source devices and volume in the remote zone.
External IR Receiver
~
~ .
Zone2
Main Room
AVR
If a source device is shared with the main listening area, any control commands issued
to that source will also affect the main room.
20
Making Connections
Connect the Trigger Output
If your system has equipment that can be controlled by a DC trigger signal, connect it to
the AVR's Trigger Out connector with a mono 1 /8-inch (3.5mm) mini-plug interconnect
cable . The AVR will supply a 12V DC (1 OOmA) trigger signal at this connection whenever
it is powered on .
Mono 1/ 8-inch (3 . 5mm)
Mini-Plug Interconnect
(not supplied)
' '
'
'
AVR
Device with
Trigger In Connector
L
------
·~·
~~ ~------
L----~
0
~
Connect to AC Power
AVR 1715/AVR 1615:
Connect the supplied AC power cord to the AVA's AC Input connector and then to a
working, non-switched AC power outlet.
AVR
AC Input
Connector
~ ACPow"
\_ Outlet
~~t~ll
AVR 17105/AVR 16105:
Connect the AVA 's power cord to a working, non-switched AC power outlet.
AC Power
AVR Outlet
-~t@ll
@

Harman Kardon AVR 161S Specifications

General

Channels	5.1
Input Sensitivity/Impedance	200mV/47k ohms
FM Tuner Frequency Range	87.5MHz – 108.0MHz
FM Tuner Signal-to-Noise Ratio (Mono/Stereo)	70dB/68dB
FM Tuner Distortion (Mono/Stereo)	0.2%/0.3%
FM Tuner Stereo Separation	40dB @ 1kHz
AM Tuner Signal-to-Noise Ratio	38dB
AM Tuner Distortion	1.0%
HDMI Inputs	5
HDMI Outputs	1
3D Ready	Yes
Audio Return Channel	Yes
Dimensions	121mm x 440mm x 300mm
Weight	4.6 kg
Power Requirement	120V AC, 60Hz
Network Connectivity	No
Dolby Digital	Yes
DTS-HD Master Audio	Yes
HDMI Version	1.4a
Frequency Response	10Hz – 130kHz (+0dB/–3dB)
FM Tuner Usable Sensitivity IHF	13.2dBf
AM Tuner Frequency Range	522kHz – 1, 620kHz
Video Resolution	4K
Power Consumption	410W maximum
Power Consumption (Idle)	<0.5W (standby)
Bluetooth	Yes
Video Inputs	Composite Video
Audio Inputs	2 analog audio
Audio Outputs	1 subwoofer
HDMI Features	3D, ARC, CEC
Supported Audio Formats	Dolby Digital, DTS
