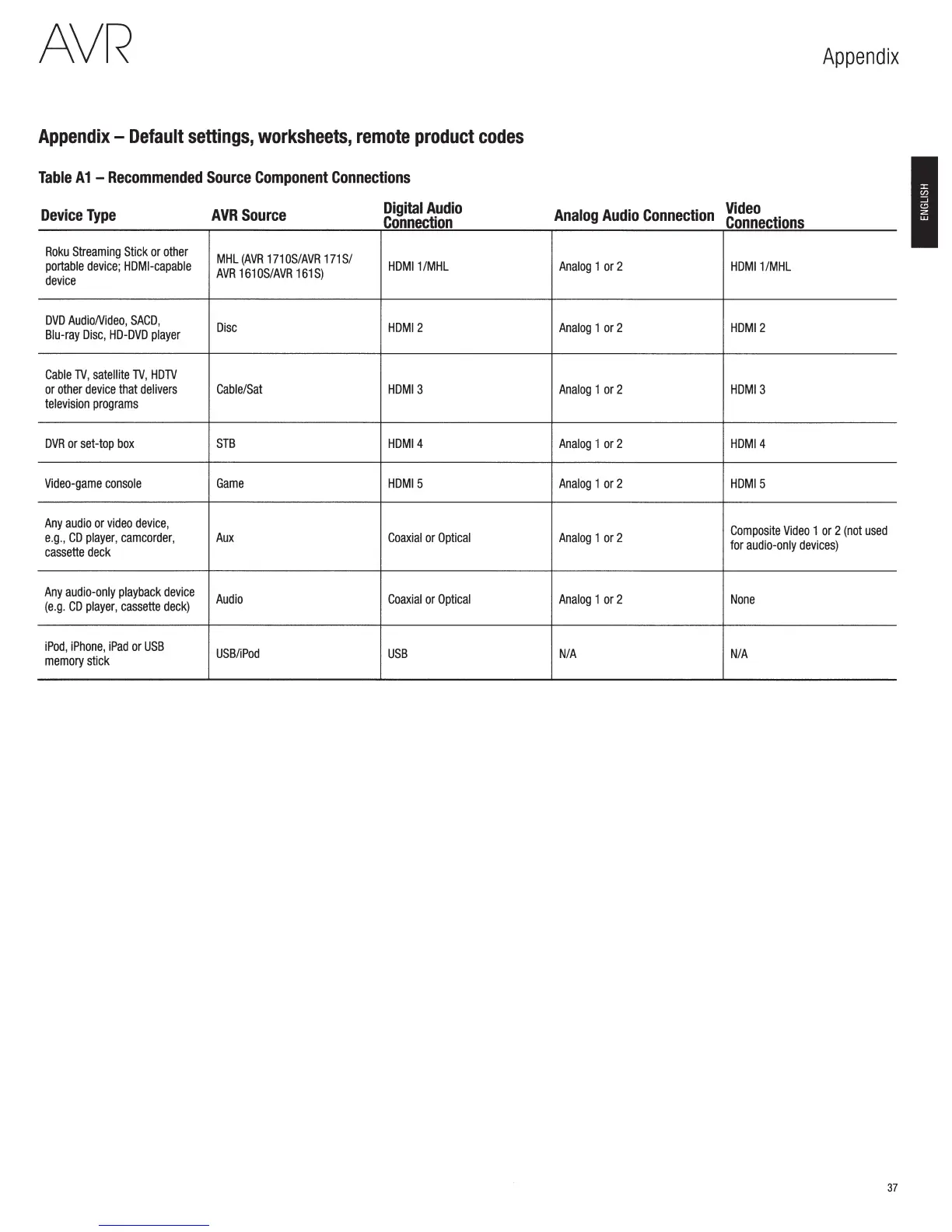

Appendix - Default settings, worksheets, remote product codes
Table A1- Recommended Source Component Connections
Device Type
Roku Streaming Stick or other
portable device; HDMI-capable
device
DVD AudioNideo, SAGO,
Blu-ray Disc, HD-DVD player
Cable TV, satellite TV, HDTV
or other device that delivers
television programs
DVR or set-top box
Video-game console
Any audio or video device ,
e.g., CD player , camcorder,
cassette deck
Any audio-only playback device
(e.g. CD player, cassette deck)
iPod, iPhone, iPad or USB
memory stick
AVR Source
MHL (AVR 1710S/AVR 171S/
AVR 161 OS/AVR 161 S)
Disc
Cable/Sat
STB
Game
Aux
Audio
USB/iPod
Digital Audio
Connection
HDMI1 / MHL
HDMI2
HDMI3
HDMI4
HDMI5
Coaxial or Optical
Coaxial or Optical
USB
Appendix
Video
Analog Audio Connection Connections
Analog 1 or 2 HDMI1/MHL
Analog 1 or 2 HDMI2
Analog 1 or 2
HDMI3
Analog 1 or 2
HDMI4
Analog 1 or 2
HDMI5
Composite Video 1 or 2 (not used
Analog 1 or 2
for audio-only dev i ces)
Analog 1 or 2 None
N/A N/A
37
I

Harman Kardon AVR 161S Specifications

General

Channels	5.1
Input Sensitivity/Impedance	200mV/47k ohms
FM Tuner Frequency Range	87.5MHz – 108.0MHz
FM Tuner Signal-to-Noise Ratio (Mono/Stereo)	70dB/68dB
FM Tuner Distortion (Mono/Stereo)	0.2%/0.3%
FM Tuner Stereo Separation	40dB @ 1kHz
AM Tuner Signal-to-Noise Ratio	38dB
AM Tuner Distortion	1.0%
HDMI Inputs	5
HDMI Outputs	1
3D Ready	Yes
Audio Return Channel	Yes
Dimensions	121mm x 440mm x 300mm
Weight	4.6 kg
Power Requirement	120V AC, 60Hz
Network Connectivity	No
Dolby Digital	Yes
DTS-HD Master Audio	Yes
HDMI Version	1.4a
Frequency Response	10Hz – 130kHz (+0dB/–3dB)
FM Tuner Usable Sensitivity IHF	13.2dBf
AM Tuner Frequency Range	522kHz – 1, 620kHz
Video Resolution	4K
Power Consumption	410W maximum
Power Consumption (Idle)	<0.5W (standby)
Bluetooth	Yes
Video Inputs	Composite Video
Audio Inputs	2 analog audio
Audio Outputs	1 subwoofer
HDMI Features	3D, ARC, CEC
Supported Audio Formats	Dolby Digital, DTS
