Harman Kardon AVR 161S User Manual

AVR

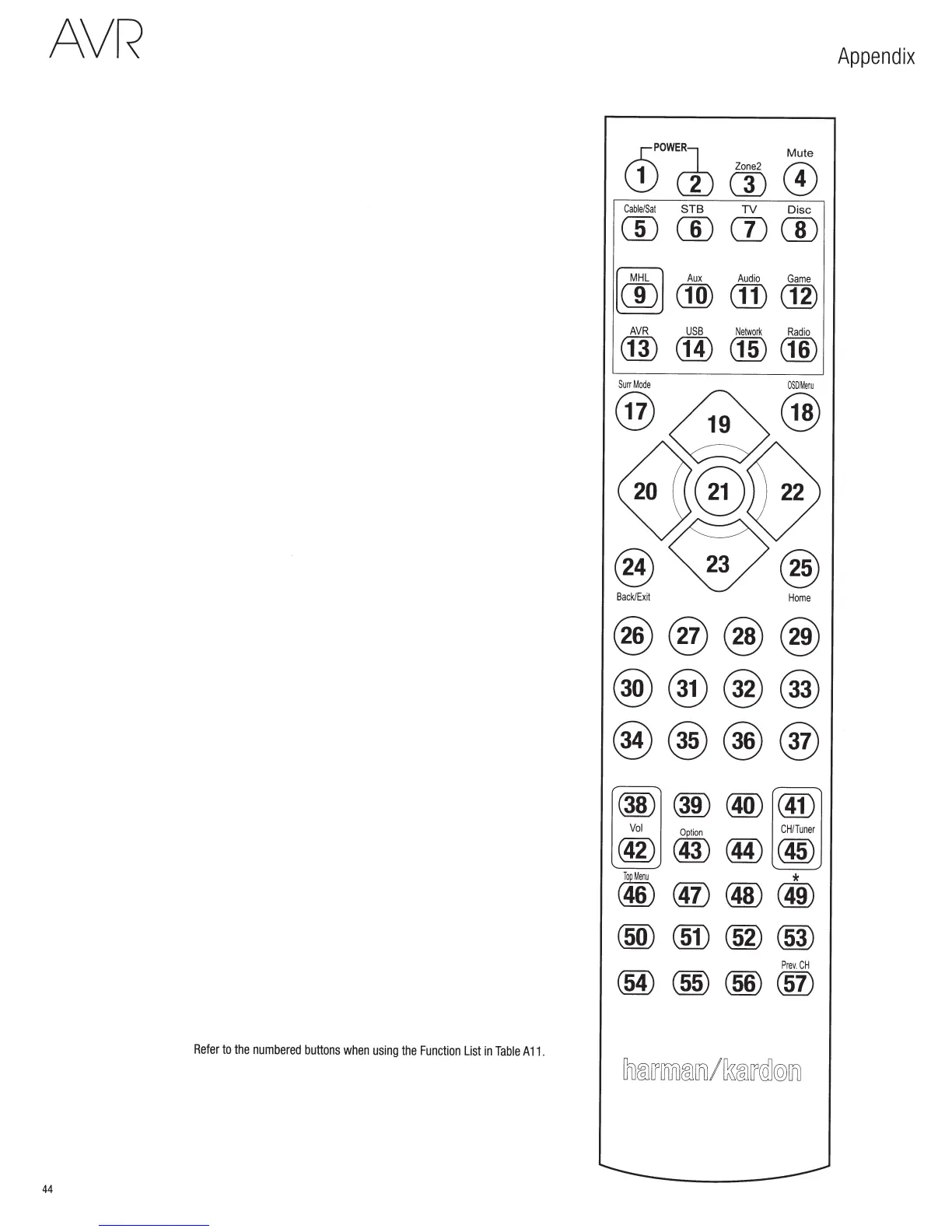

Refer
to
the
numbered
buttons
when
using
the
Function
List
in
Table
A
11
.
44
~OWE1_
Mute
~mm®
Cable
/
Sal
STB
TV
Disc
mmmrn
[®]
c1ID
ciD
@
AVR
U
SB
Nelwork
Radi
o
@@(@(@
~~@)@)
Vol
Op
ti
on
CH
/T
une
r
~@)@@)
@@@@
COO)@®)®)
Pr
ev
. CH
~(§IDe§§)~
Appendix

Harman Kardon AVR 161S Specifications

General

Channels	5.1
Input Sensitivity/Impedance	200mV/47k ohms
FM Tuner Frequency Range	87.5MHz – 108.0MHz
FM Tuner Signal-to-Noise Ratio (Mono/Stereo)	70dB/68dB
FM Tuner Distortion (Mono/Stereo)	0.2%/0.3%
FM Tuner Stereo Separation	40dB @ 1kHz
AM Tuner Signal-to-Noise Ratio	38dB
AM Tuner Distortion	1.0%
HDMI Inputs	5
HDMI Outputs	1
3D Ready	Yes
Audio Return Channel	Yes
Dimensions	121mm x 440mm x 300mm
Weight	4.6 kg
Power Requirement	120V AC, 60Hz
Network Connectivity	No
Dolby Digital	Yes
DTS-HD Master Audio	Yes
HDMI Version	1.4a
Frequency Response	10Hz – 130kHz (+0dB/–3dB)
FM Tuner Usable Sensitivity IHF	13.2dBf
AM Tuner Frequency Range	522kHz – 1, 620kHz
Video Resolution	4K
Power Consumption	410W maximum
Power Consumption (Idle)	<0.5W (standby)
Bluetooth	Yes
Video Inputs	Composite Video
Audio Inputs	2 analog audio
Audio Outputs	1 subwoofer
HDMI Features	3D, ARC, CEC
Supported Audio Formats	Dolby Digital, DTS
