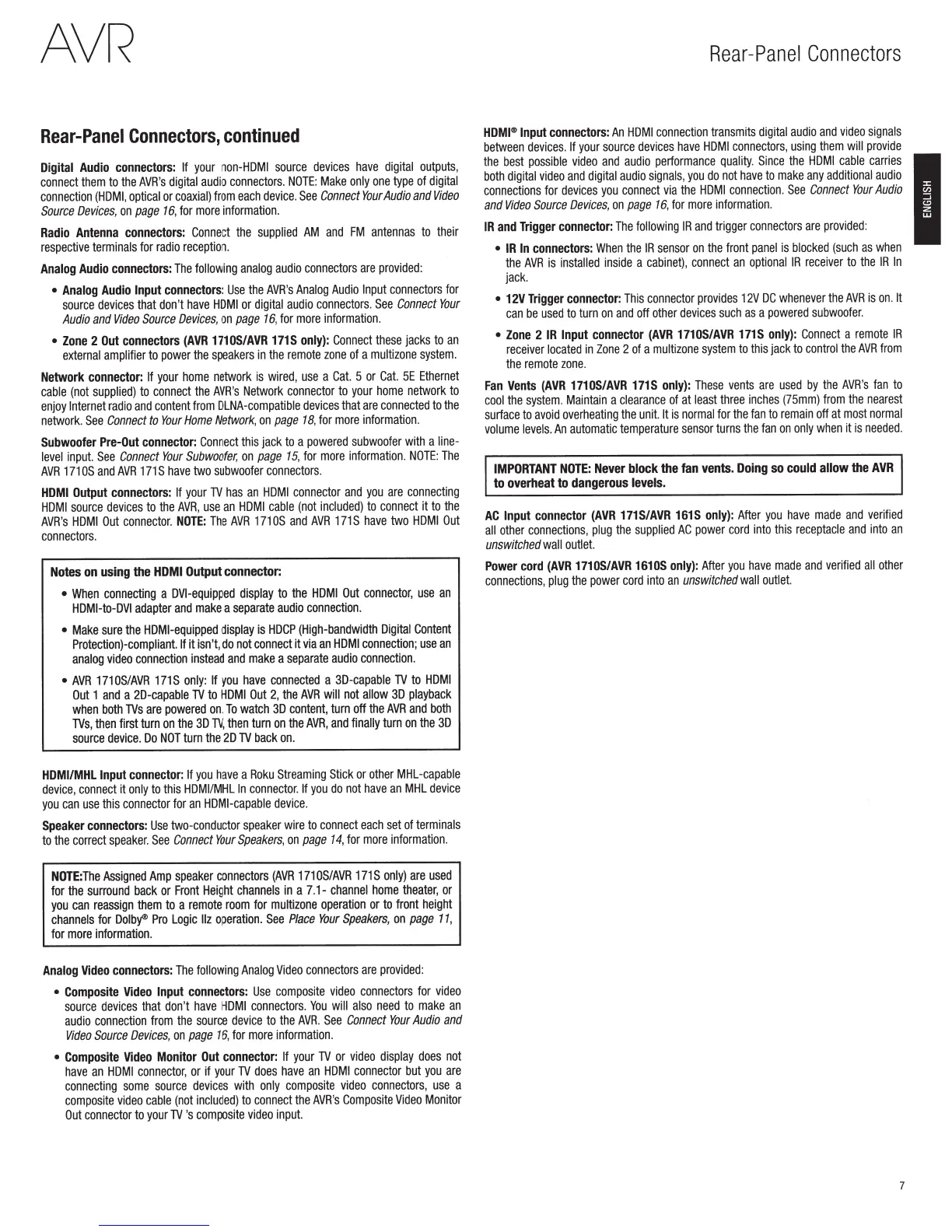

AVR
Rear-Panel
Connectors,
continued
Digital
Audio
connectors:
If
your
non-HDMI
source
devices
have
digital
outputs,
connect
them
to
the
AVA's
digital
audio
connectors
.
NOTE
:
Make
only
one
type
of
digital
connection
(HDMI,
optical
or
coaxial)
from
each
device.
See
Connect
Your
Audio
and
Video
Source
Devices,
on
page
16,
for
more
information.
Radio
Antenna
connectors:
Connect
the
supplied
AM
and
FM
antennas
to
their
respective
terminals
for
radio
reception
.
Analog
Audio
connectors:
The
following
analog
audio
connectors
are
provided:
•
Analog
Audio
Input
connectors:
Use
the
AVA's
Analog
Audio
Input
connectors
for
source
devices
that
don't
have
HDMI
or
digital
audio
connectors
.
See
Connect
Your
Audio
and
Video
Source
Devices,
on
page
16,
for
more
information.
•
Zone
2
Out
connectors
(AVR
17105/AVR
1715
only):
Connect
these
jacks
to
an
external
amplifier
to
power
the
speakers
in
the
remote
zone
of
a
multizone
system.
Network
connector:
If
your
home
network
is
wired,
use
a
Cat.
5
or
Cat.
5E
Ethernet
cable
(not
supplied)
to
connect
the
AVA's
Network
connector
to
your
home
network
to
enjoy
Internet
radio
and
content
from
DLNA-compatible
devices
that
are
connected
to
the
network.
See
Connect
to
Your
Home
Network,
on
page
18
,
for
more
information
.
Subwoofer
Pre-Out
connector:
Connect
this
jack
to
a
powered
subwoofer
with
a
line-
level
input.
See
Connect
Your
Subwoofer,
on
page
15,
for
more
information.
NOTE
:
The
AVA
171
OS
and
AVR
171
S
have
two
subwoofer
connectors.
HDMI
Output
connectors:
If
your
TV
has
an
HDMI
connector
and
you
are
connecting
HDMI
source
devices
to
the
AVR
,
use
an
HDMI
cable
(not
included)
to
connect
it
to
the
AVR's
HDMI
Out
connector.
NOTE:
The
AVA
171
OS
and
AVA
171
S
have
two
HDMI
Out
connectors.
Notes
on
using
the
HDMI
Output
connector:
•
When
connecting
a
DVI-equipped
display
to
the
HDMI
Out
connector,
use
an
HDMI-to-DVI
adapter
and
make
a
separate
audio
connection.
•
Make
sure
the
HDMI-equipped
display
is
HDCP
(High-bandwidth
Digital
Content
Protection)-compliant.lf
it
isn't,
do
not
connect
it
via
an
HDMI
connection;
use
an
analog
video
connection
instead
and
make
a
separate
audio
connection.
•
AVR
171
0S/AVR
171S
only:
If
you
have
connected
a
3D
-c
apable
TV
to
HDMI
Out
1
and
a
2D-capable
TV
to
HDMI
Out
2,
the
AVA
will
not
allow
3D
playback
when
both
TVs
are
powered
on.
To
watch
3D
content,
turn
off
the
AVR
and
both
TVs,
then
first
turn
on
the
3D
TV,
then
turn
on
the
AVR,
and
finally
turn
on
the
3D
source
device
.
Do
NOT
turn
the
2D
TV
back
on.
HDMI/MHL
Input
connector:
If
you
have
a
Aoku
Streaming
Stick
or
other
MHL
-capable
device,
connect
it
only
to
this
HDMI/MHL
In
connector
.
If
you
do
not
have
an
MHL
device
you
can
use
this
connector
for
an
HDMI-capable
device.
Speaker
connectors:
Use
two-conductor
speaker
wire
to
connect
each
set
of
terminals
to
the
correct
speaker.
See
Connect
Your
Speakers
,
on
page
14
,
for
more
information.
NOTE:
The
Assigned
Amp
speaker
connectors
(AVR
171
OS/
AVA
171
S
only)
are
used
for
the
surround
back
or
Front
Height
channels
in
a
7.1
-
channel
home
theater,
or
you
can
reassign
them
to
a
remote
room
for
multizone
operation
or
to
front
height
channels
for
Dolby®
Pro
Logic
liz
operation.
See
Place
Your
Speakers
,
on
page
11,
for
more
information.
Analog
Video
connectors:
The
following
Analog
Video
connectors
are
provided
:
•
Composite
Video
Input
connectors:
Use
composite
video
connectors
for
video
source
devices
that
don't
have
HDMI
connectors.
You
will
also
need
to
make
an
audio
connection
from
the
source
device
to
the
AVR.
See
Connect
Your
Audio
and
Video
Source
Devices
,
on
page
16,
for
more
information.
•
Composite
Video
Monitor
Out
connector:
If
your
TV
or
video
display
does
not
have
an
HDMI
connector,
or
if
your
TV
doe
s
hav
e
an
HDMI
connector
but
you
are
connecting
some
source
devices
with
only
composite
video
connectors,
use
a
composite
video
cable
(not
included)
to
connect
the
AVA's
Composite
Video
Monitor
Out
connector
to
your
TV
's
composite
video
input.
Rear-Panel
Connectors
HDMI®
Input
connectors:
An
HDMI
connec
t
ion
transmits
digital
audio
and
video
signals
between
devices.
If
your
source
devices
have
HDMI
connectors
,
using
them
will
provide
the
best
possible
video
and
audio
performance
quality
.
Since
the
HDMI
cable
carries
both
digital
video
and
digital
audio
signals,
you
do
not
have
to
make
any
additional
audio
connections
for
devices
you
connect
via
the
HDMI
connection.
See
Connect
Your
Audio
and
Video
Source
Devices,
on
page
16
,
for
more
information.
IR
and
Trigger
connector:
The
following
IR
and
trigger
connectors
are
provided:
•
IR
In
connectors:
When
the
IR
sensor
on
the
front
panel
is
blocked
(such
as
when
the
AVA
is
installed
inside
a
cabinet
),
connect
an
optiona
l
lA
receiver
to
the
IR
In
jack.
•
12V
Trigger
connector:
This
connector
provides
12V
DC
whenever
the
AVR
is
on
.
It
can
be
used
to
turn
on
and
off
other
dev
ice
s
such
as
a
powered
subwoofer
.
•
Zone
2
IR
Input
connector
(AVR
17105/AVR
1715
only):
Connect
a
remote
lA
receiver
located
in
Zone
2
of
a
multizone
system
to
this
jack
to
control
the
AVA
from
the
remote
zone.
Fan
Vents
(AVR
17105/AVR
1715
only):
These
vents
are
used
by
the
AVA's
fan
to
cool
the
system
.
Maintain
a
clearance
of
at
least
three
inches
(75mm)
from
the
nearest
surface
to
avoid
overheating
the
unit.
It
is
normal
for
the
fan
to
remain
off
at
most
normal
volume
levels.
An
automatic
temperature
sensor
turns
the
fan
on
only
when
it
is
needed.
IMPORTANT
NOTE:
Never
block
the
fan
vents.
Doing
so
could
allow
the
AVR
to
overheat
to
dangerous
levels.
AC
Input
connector
(AVR
1715/AVR
1615
only):
After
you
have
made
and
verified
all
other
connections,
plug
the
supplied
AC
power
cord
into
this
recep
t
acle
and
into
an
unswitched
wall
outlet.
Power
cord
(AVR
17105/AVR
16105
only):
After
you
have
made
and
verified
all
other
connections,
plug
the
power
cord
into
an
unswitched
wall
outlet.
7
I

Harman Kardon AVR 161S Specifications

General

Channels	5.1
Input Sensitivity/Impedance	200mV/47k ohms
FM Tuner Frequency Range	87.5MHz – 108.0MHz
FM Tuner Signal-to-Noise Ratio (Mono/Stereo)	70dB/68dB
FM Tuner Distortion (Mono/Stereo)	0.2%/0.3%
FM Tuner Stereo Separation	40dB @ 1kHz
AM Tuner Signal-to-Noise Ratio	38dB
AM Tuner Distortion	1.0%
HDMI Inputs	5
HDMI Outputs	1
3D Ready	Yes
Audio Return Channel	Yes
Dimensions	121mm x 440mm x 300mm
Weight	4.6 kg
Power Requirement	120V AC, 60Hz
Network Connectivity	No
Dolby Digital	Yes
DTS-HD Master Audio	Yes
HDMI Version	1.4a
Frequency Response	10Hz – 130kHz (+0dB/–3dB)
FM Tuner Usable Sensitivity IHF	13.2dBf
AM Tuner Frequency Range	522kHz – 1, 620kHz
Video Resolution	4K
Power Consumption	410W maximum
Power Consumption (Idle)	<0.5W (standby)
Bluetooth	Yes
Video Inputs	Composite Video
Audio Inputs	2 analog audio
Audio Outputs	1 subwoofer
HDMI Features	3D, ARC, CEC
Supported Audio Formats	Dolby Digital, DTS
