10
AVR

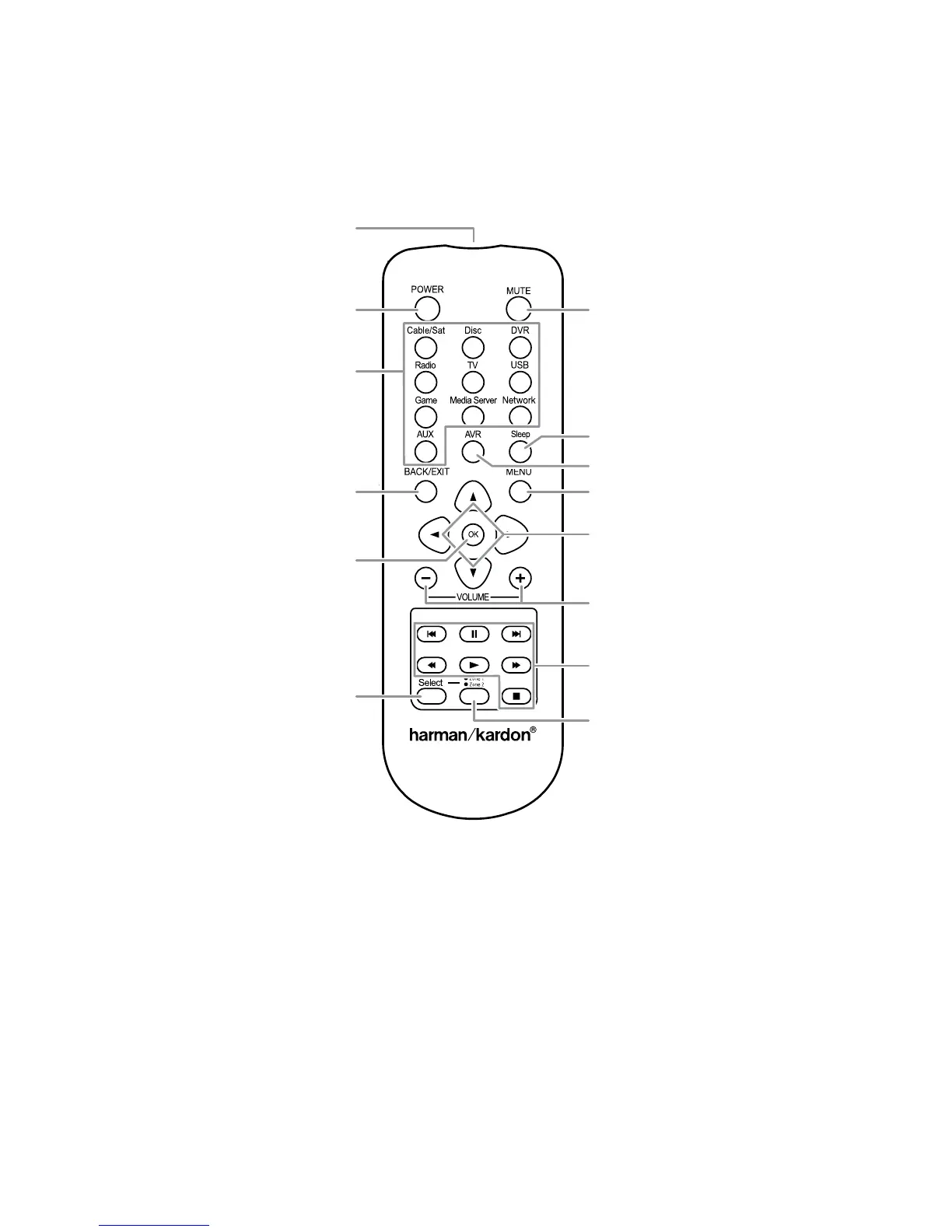

Zone 2 Remote Control Functions
(AVR 3700/AVR 370 only)
Zone 2 Remote Control Functions
(
AVR 3700/AVR 370 only
)
IR Transmitter
Lens
Source Selector
Buttons
Mute Button
Sleep Button
Menu Button
Up/Down/Left/Right
Buttons
Volume Up/Down
Buttons
Transport Control
Buttons
AVR Button
OK Button
Zone Selector
Button
Back/Exit
Button
Power Off
Button
Zone Indicator

Table of Contents

Other manuals for Harman Kardon AVR 3700

Preview: Quick Start Guide
Quick Start Guide10 pages
Preview: Manual
Manual2 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Harman Kardon AVR 3700 and is the answer not in the manual?

Harman Kardon AVR 3700 Specifications

Audio Specifications IconAudio Specifications
stereo mode continuous average power125 watts/ch, 20Hz – 20kHz, <0.07% THD, both channels driven @ 8 ohms, 6-ohm certified
multichannel power125 watts/ch, 20Hz – 20kHz, <0.07% THD, two channels driven @ 8 ohms, 6-ohm certified
input sensitivity/impedance (line-in)200mV/47k ohms
Video Specifications IconVideo Specifications
television formatNTSC
video frequency response (composite video)10Hz – 8MHz (–3dB)
input level/impedance1Vp-p/75 ohms
Power IconPower
power requirementAC 120V/60Hz
power consumption120W idle; 1, 405W maximum (7 channels driven)
high instantaneous current capability (HCC)±45 amps
Weight and Dimensions IconWeight and Dimensions
dimensions (W x H x D)17-5/16" x 6-1/2" x 15" (440mm x 165mm x 382mm)
weight17.6 lb (8kg)
