14 ZONE II REMOTE CONTROL FUNCTIONS
ZONE II REMOTE CONTROL FUNCTIONS
å Power Off: When used in the room where the
AVR 7200 is located, press this button to place the
unit in Standby.When it is used in a remote room with
a sensor that is connected to the Multiroom IR Input
¶ jack, this button turns the Multiroom system on
and off.
∫ AVR Selector: Press this button to turn on the
AVR 7200.The input in use when the unit was last on
will be selected.
ç AM/FM Tuner Select: Press this button to
select the Tuner as the input to the Multiroom system.
Press it again to change between the AM and FM
bands.
∂ Input Selectors: When the AVR 7200 is off,
press one of these buttons to select a specific input
and turn the unit on.When the unit is already in use,
pressing one of these buttons will change the input.
≠ Tuning Up/Down – Fast Play: When this
remote is used in the same room as the AVR 7200,
these buttons may be used to change the frequency
of the tuner.These buttons may also control the
Fast Play or Fast Reverse functions of compatible
Harman Kardon CD, DVD or cassette decks in the
same room, or from a remote room when an IR link
is connected to the AVR 7200.
ƒ Record/Pause: Press this button to activate
the Record or Pause function on compatible
Harman Kardon CD, DVD or cassette deck products.
© Preset Up/Down – Track Skip: When the
AVR 7200’s tuner is selected as the input source,
these buttons will move up or down through the list of
stations that have been stored in the preset memory.
When a CD or DVD changer or player is selected,
these buttons activate the Forward or Reverse Track
or Chapter Skip functions.
˙ Disc Skip: Press these buttons to change discs
on compatible Harman Kardon CD or DVD changer or
players.
Volume Up/Down: When used in the room
where the AVR 7200 is located, press this button to
raise or lower the volume in that room.When it is
used in a remote room with a sensor that is connect-
ed to the Multiroom IR Input ¶ jack, this button will
raise or lower the volume in the remote room.
∆ Play Forward/Reverse – Stop: Press these
buttons to control compatible Harman Kardon CD,
DVD or cassette players.
Mute: When used in the room where the
AVR 7200 is located, press this button to temporarily
silence the unit.When it is used in a remote room with
a sensor that is connected to the Multiroom IR Input
¶ jack, this button will temporarily silence the feed to
the remote room only. Press the button again to return
to the previous volume level.
I

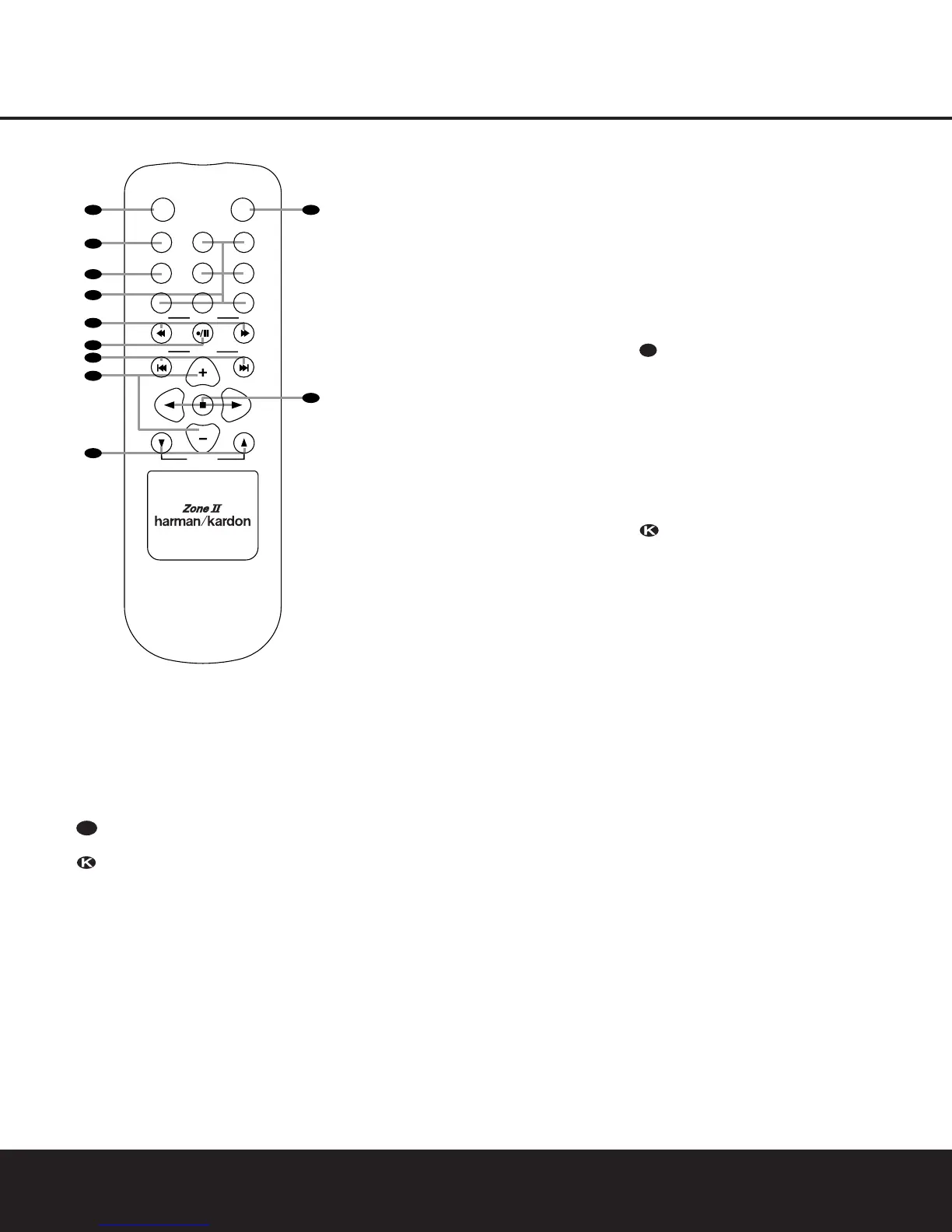

å Power Off
∫ AVR Selector
ç AM/FM Tuner Select
∂ Input Selectors
≠ Tuning Up/Down – Fast Play
ƒ Record/Pause
© Preset Up/Down – Track Skip
˙ Disc Skip
Volume Up/Down
∆ Play Forward/Reverse – Stop
Mute
I
POWER
OFF
MUTE
AVR
AM/
/
FM
VID 1
VID 3
DVD
CD
TAPE
DN
TUNING
PRESET
VOLUME
DISC SKIP
DISC SKIP
UP
DN
UP
VID 4
VID 2
G
A
B
C
D
E
F
H
I
K
J
NOTE: The Zone II remote may be used in either the same room where the AVR 7200 is located, or it may be
used in a separate room with an optional infrared sensor that is connected to the AVR 7200’s
Multiroom IR Input
¶ jack. When it is used in the same room as the AVR 7200,it will control the functions of the AVR 7200 or any
compatible Harman Kardon products in that room.When it is used in a separate room via a sensor connected to
the
Multiroom IR Input ¶ jack, the buttons for Power,Input Source,Volume and Mute will control the source
and volume for the second zone,as connected to the Multiroom Audio Outputs g jacks. (See page 36 for
complete information on using the multiroom system.)
