Harman Kardon AVR11 - Front Panel Controls

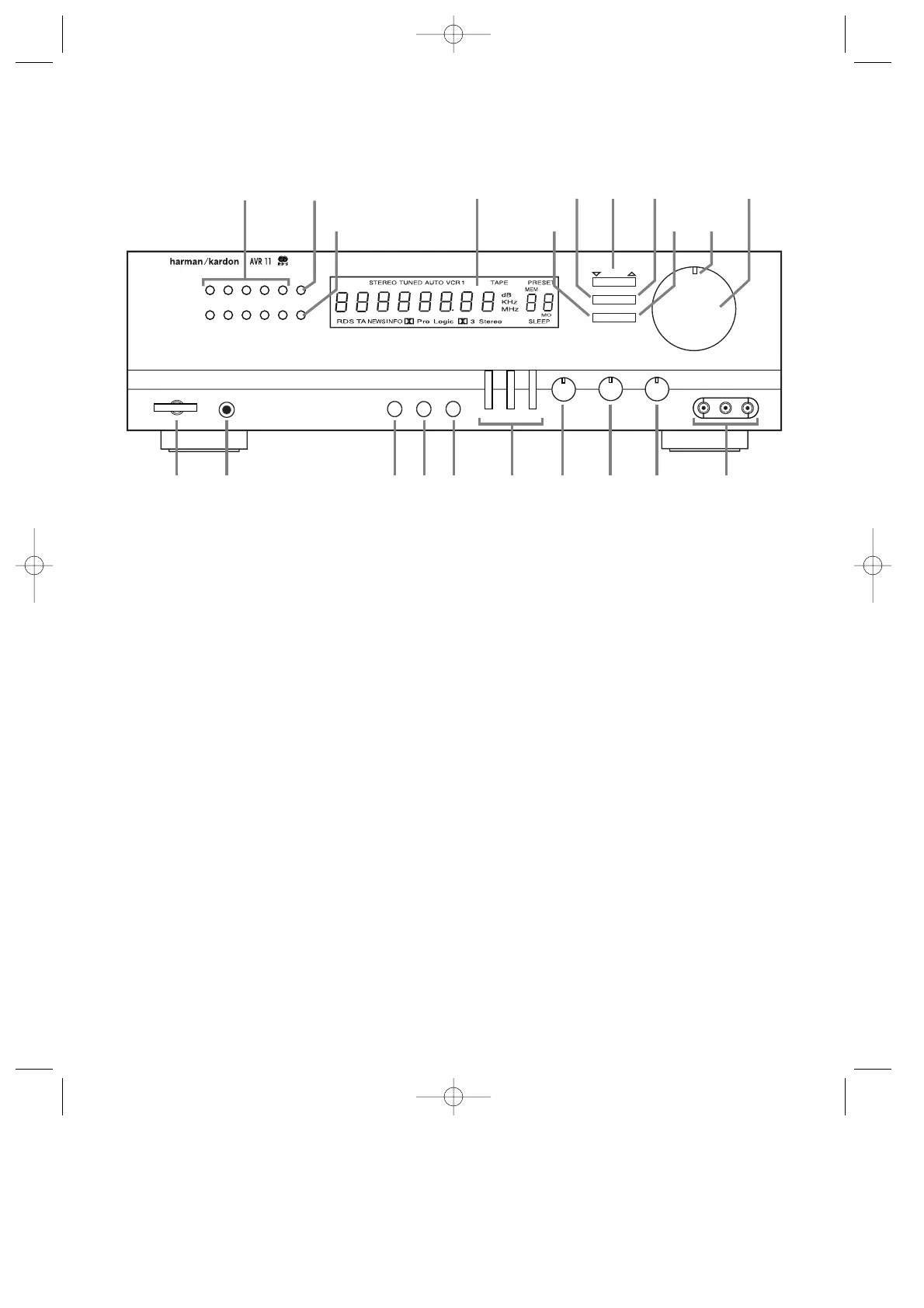

Front Panel
1 Power Button
2 Headphones Jack
3 Bypass Button
4 Surround Mode Select Button
5 Tape Monitor Button
6 Input Selector Buttons
7 Bass Control
8 Treble Control
9 Balance Control
) VCR 2 A/V Input Jacks
! Station Preset Buttons
@ Memory Button
# Seek/Stereo Button
$ Information Display Window
% PTY Search Button
^ RDS Control Button
& Tuning/PTY Select Button
* RT (Radio Text) Selector
( RDS Display Button
Ó Power/Mute Indicator
Ô Volume Control
HeadphonesPower
VCR 2
Bypass
1
Surround Tape Mon
VCR1 FMCD
TV/Aux AM
Bass Treble Balance
Tuning/PTY
DisplayPTY
RTRDS
Volume
VCR 2
2 3 4 5
Memory
6 7 8 9 0
Seek
Stereo
!
