CMOS 8-bit Single Chip Microcomputer
Description
The CXP82532/82540 microcomputer is composed
of a CPU, ROM RAM, and I/O ports. These chips
feature many other high-performance circuits in a
single-chip CMOS design, including an A/D
converter, serial interface, timer/counter, time-base
timer, capture timer/counter, fluorescent display
controller/driver, remote control receiver.
This device also includes a power-on reset function
and sleep/stop functions which can be used to
achieve low power consumption.
Features
• Instruction set which supports a wide array of data types
— 213 types of instructions which include 16-bit calculations, multiplication and division arithmetic, and
boolean bit operations.
• Minimum instruction cycle 400ns for 10MHz operation
• On-chip ROM 32K bytes (CXP82532)
40K bytes (CXP82540)
• On-chip RAM 1120 bytes (Including fluorescent display data area)
• Peripheral functions:
— A/D converter 8-bit, 8-channel, successive approximation system
(conversion time 32µs/10MHz)
— Serial interface On-chip 8-bit, 8-stage FIFO (1 to 8 bytes auto transfer) 1 channel
8-bit clock synchronized 1 channel
— Timers 8-bit timer
8-bit timer/counter
19-bit time-base timer
16-bit capture timer/counter
— Fluorescent display controller/driver
Maximum of 336 segment display available
1 to 16 digits dynamic display
Dimmer function
High voltage tolerance output (40V)
On-chip pull-down resistor (Mask option)
— Remote control receiver circuit
On-chip noise elimination circuit
On-chip 6 stage FIFO 8-bit pulse measurement counter
• Interrupts 14 factors, 15 vectors multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin plastic QFP
• Piggyback/evaluator CXP82500 80-pin ceramic QFP
Structure
Silicon gate CMOS IC
– 1 –
E92Y32B16-PS
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
CXP82532/82540

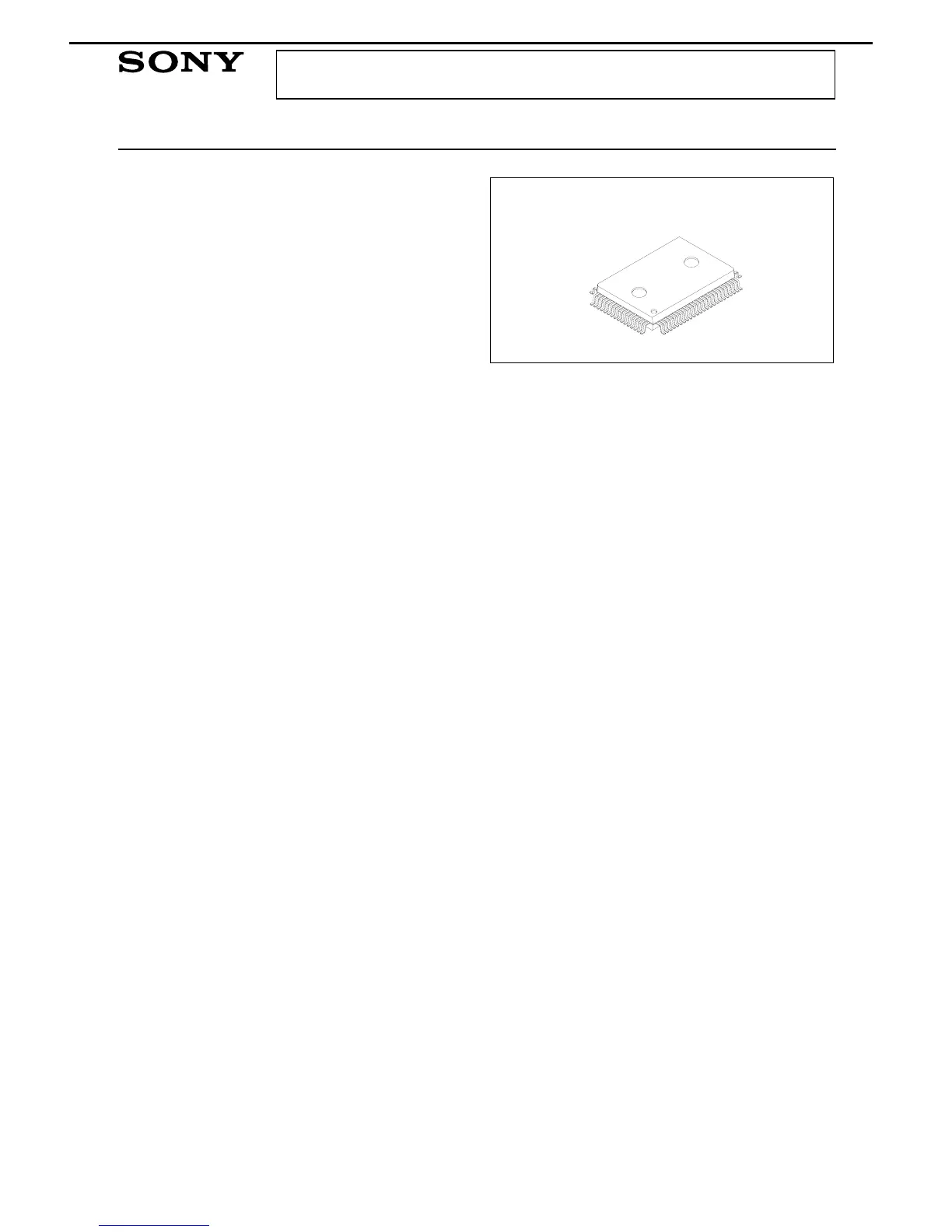

80 pin QFP (Plastic)
