MAIN REMOTE CONTROL FUNCTIONS 11

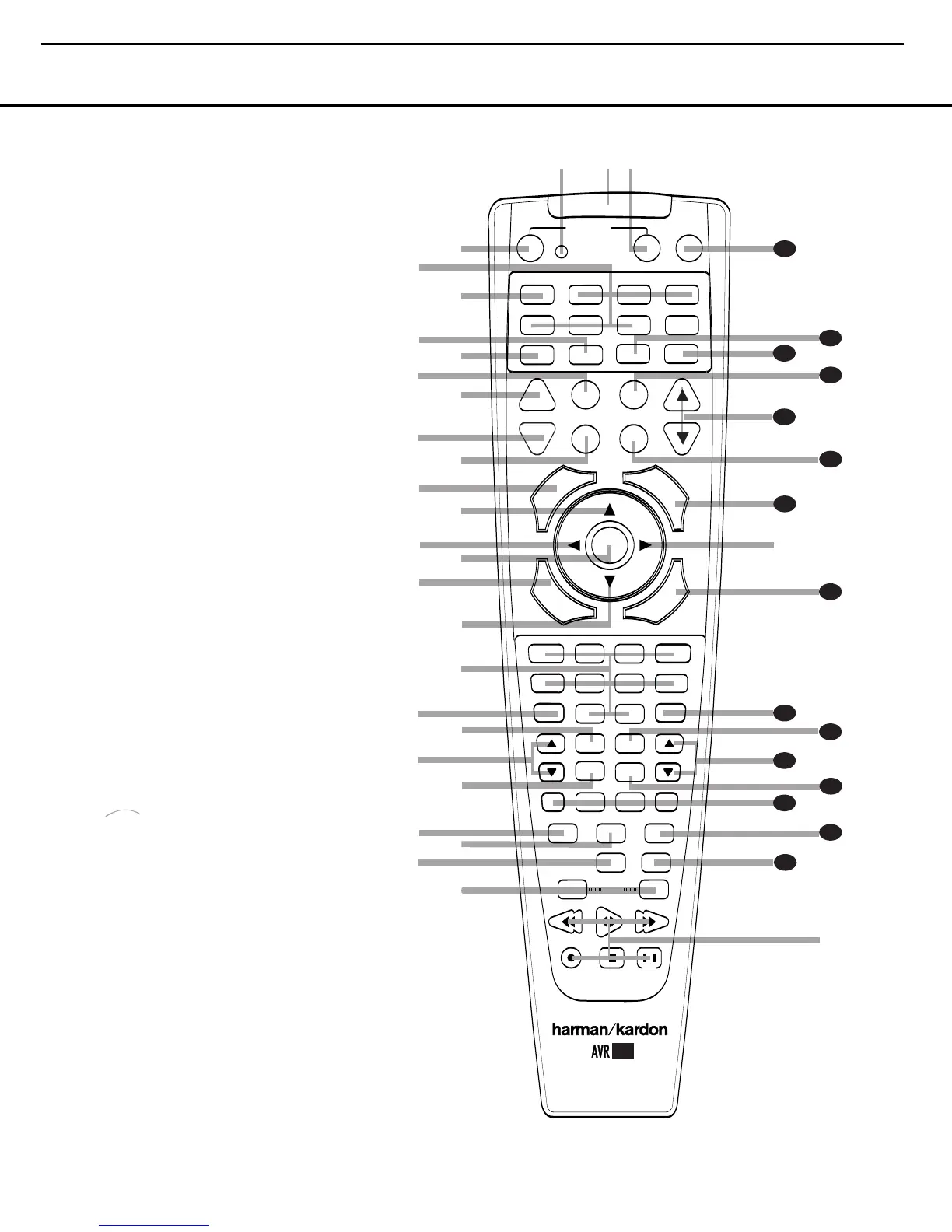

MAIN REMOTE CONTROL FUNCTIONS
a Power Off Button
b IR Transmitter Window
c Program Indicator
d Power On Button
e Input Selectors
f AVR Selector
g AM/FM Tuner Select
h Dim Button
i Test Button
j Sleep Button
k DSP Surround Mode Selector
l Night Mode
m Channel Select Button
n
⁄
/
¤
Buttons
o
‹
/
›
Buttons
p Set Button
q Digital Select
r Numeric Keys
s Tuner Mode
t Direct Button
u Tuning Up/Down
v OSD Button
w Dolby Mode Selector
x DTS Digital Mode Selector
y Logic 7 Mode Select Button
z Skip Up/Down Buttons
` Transport Controls
R Stereo Mode Select Button
S DTS Neo:6 Mode Select
T
Macro Buttons
U
Disc Skip Button
V
Preset Up/Down
W
Clear Button
X
Memory Button
Y
Delay/Prev. Ch.
Z
Speaker Select
a
Multiroom Button
b
Volume Up/Down
c
TV/Video Selector
d
DMP Selector
e
6-Channel/8-Channel Direct Input
f
Mute
s
a
bc
d
e
f
g
h
j
n
n
p
o
o
q
r
t
v
`
32
30
29
28
36
37
38
39
z
x
35
POWER
MUTE
A
VR
D
VD
AM/FM
C
D
TAPE
VID 2
VCR
TV
CBL/SAT
6
/8 CH
DMP
V
ID 1
VID 3
VID4
The Bridge
OFF
ON
SLEEP
T/V
SURR.
CH.
V
OL.
G
U
I
D
E
C
H
.
E
X
I
T
D
I
G
I
T
A
L
M
E
N
U
S
P
K
R
P
R
E
V
.
C
H
.
D
E
L
A
Y
SET
1
2
3
4
7
6
5
9
0
TUN-M
MEM
M2
M3
M4
D.SKIP
M1
DIRECT
OSD
TUNING
DOLBY SUR
DTS SURR
DTS NEO:6
STEREO
LOGIC 7
SKIP
UP
DWN
PRESET
CLEAR
T
EST
NIGHT M-ROOM
33
44
00
8
l
u
DIM
i
k
m
34
33
w
y
41
40
31
42
®
NOTES:
• The function names shown here are each button’s
feature when used with the AVR 340. Most buttons
have additional functions when used with other
devices. See pages 51–52 for a list of these
functions.
• To make it easier to follow the instructions that refer
to this illustration, a larger copy may be down-
loaded from the Product Support section for this
product at www.harmankardon.com.
