6
ERA 600 Performance / Profile User Guide
Rotating gobos
The ERA 600 Performance has one rotating gobo wheel (Gobo Wheel 1) and a rotating framing effect, while
the ERA 600 Profile has two rotating gobo wheels (Gobo Wheel 1 and Gobo Wheel 3) and no framing
effect.
The gobos on Gobo Wheel 3 in the ERA 600 Profile have the same dimensions and specifications as those
on Gobo Wheel 1 and are therefore interchangeable, but the goboholders on the two gobo wheels are
slightly different and are not interchangeable.
A CRI (color rendering index) boost filter is available from Martin as an accessory (see the product
specifications at www.martin.com). If you replace one of the gobos with the CRI boost filter, you can obtain
a CRI of over 80.
Martin is making parts available that allow you to convert between Performance and Profile models by
swapping Gobo Wheel 3 and framing modules. See the ERA 600 Performance / Profile Safety and
Installation Manual for details.
Gobo Wheel 1
Gobo Wheel 1 in the ERA 600 Performance / Profile has seven rotating gobos that can be selected, indexed
(positioned at an angle), rotated continuously and shaken (bounced). The gobo wheel itself can also be
scrolled continuously or shaken. Gobo selection and control type (indexing, continuous gobo rotation, gobo
shake or continuous gobo wheel scrolling) are selected on channel 13. Depending on what is selected on
this channel, the gobo indexed angle or gobo rotation speed are set on channels 14 and 15 with 16-bit
control resolution.
The standard gobos are shown in the correct order in Figure 2. All gobos are interchangeable except Gobo
3 (Limbo), which is fused glass and is glued into a special goboholder. The ERA 600 Performance / Profile
Safety and Installation Guide contains details of gobo replacement procedures.
5
1
2
3
1
4
7
-
0
0
-
B
D
e
s
i
g
n
o
w
n
e
d
b
y
M
a
r
t
i
n
b
y
H
A
R
M
A
N

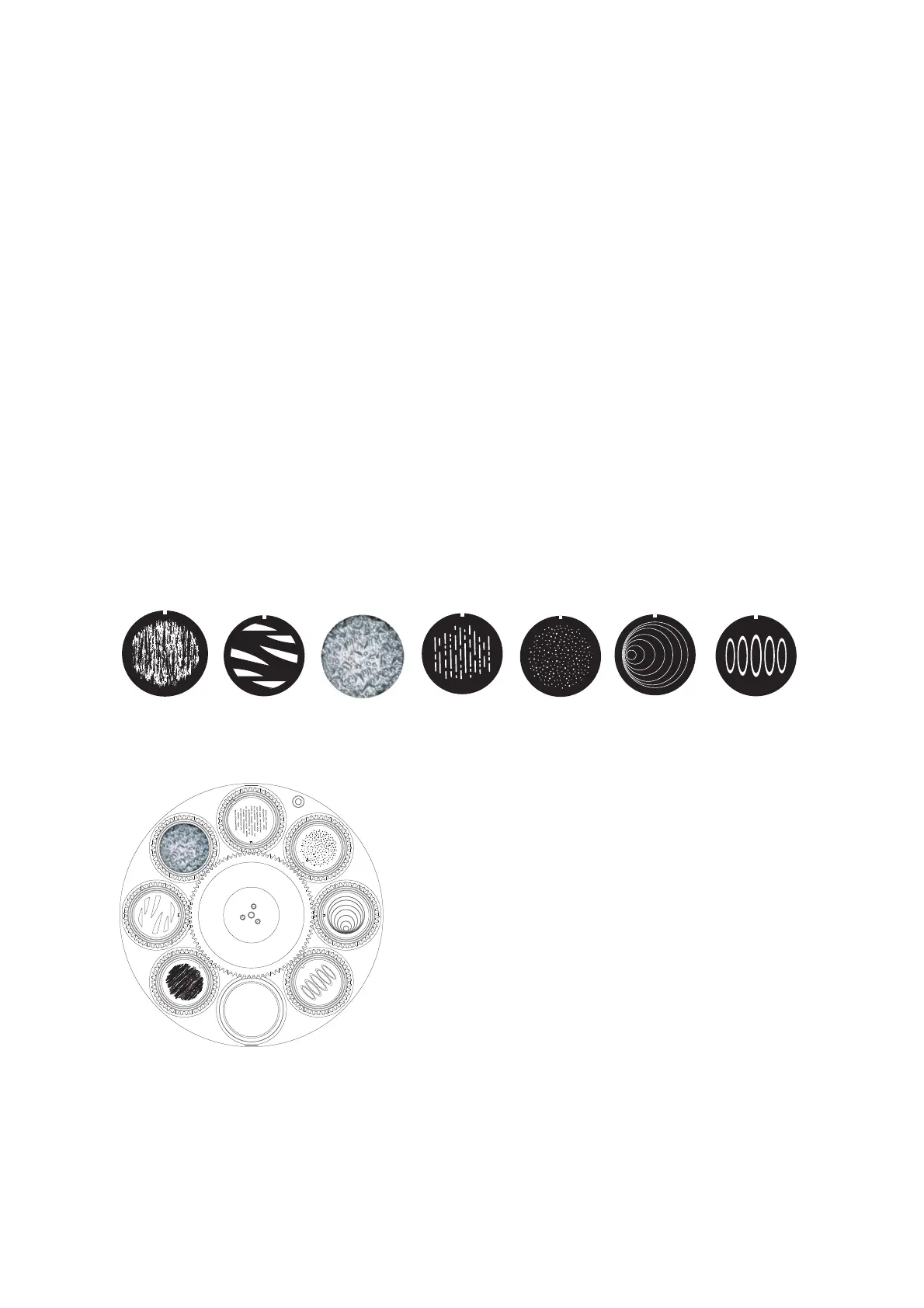

Figure 2: Rotating gobos installed on Gobo Wheel 1 as standard
Slot - Gobo Part number
1. Ray Brush......................................... P/N 5123147-00
2. Too Many Doctors ............................ P/N 5123148-00
3. Limbo (fused glass) .......................... P/N 5123149-00
4. Light Lines ........................................ P/N 5123150-00
5. Dots in Space ................................... P/N 5123151-00
6. Sonar................................................ P/N 5123152-00
7. 5 Circles in Line ................................ P/N 5123153-00
6
5
4
3
2
Gobo Wheel 1 seen from front lens side
5
1
2
3
1
4
8
-
0
0
-
A
D
e
s
i
g
n
o
w
n
e
d
b
y
M
a
r
t
i
n
b
y
H
A
R
M
A
N
5
1
2
3
1
5
0
-
0
0
-
A
D
e
s
i
g
n
o
w
n
e
d
b
y
M
a
r
t
i
n
b
y
H
A
R
M
A
N
5
1
2
3
1
5
1
-
0
0
-
A
D
e
s
i
g
n
o
w
n
e
d
b
y
M
a
r
t
i
n
b
y
H
A
R
M
A
N
5
1
2
3
1
5
2
-
0
0
-
A
D
e
s
i
g
n
o
w
n
e
d
b
y
M
a
r
t
i
n
b
y
H
A
R
M
A
N
5
1
2
3
1
5
3
-
0
0
-
A
D
e
s
i
g
n
o
w
n
e
d
b
y
M
a
r
t
i
n
b
y
H
A
R
M
A
N
