ERA 600 Performance / Profile User Guide
Static gobos
The static gobo wheel in the ERA 600 Performance / Profile has eight static gobos. The static gobo wheel
can be scrolled continuously or shaken. Gobo selection and control type (indexing, continuous gobo
rotation, gobo shake or continuous gobo wheel scrolling) are selected on channel 6. Depending on what is
selected on this channel, the gobo indexing angle or gobo rotation speed are set on channels 7 and 8,
where 16-bit control is available.
The standard gobos are shown in the correct order in Figure 4.
Static gobos may be replaced by Martin Global Service or its authorized agents only.

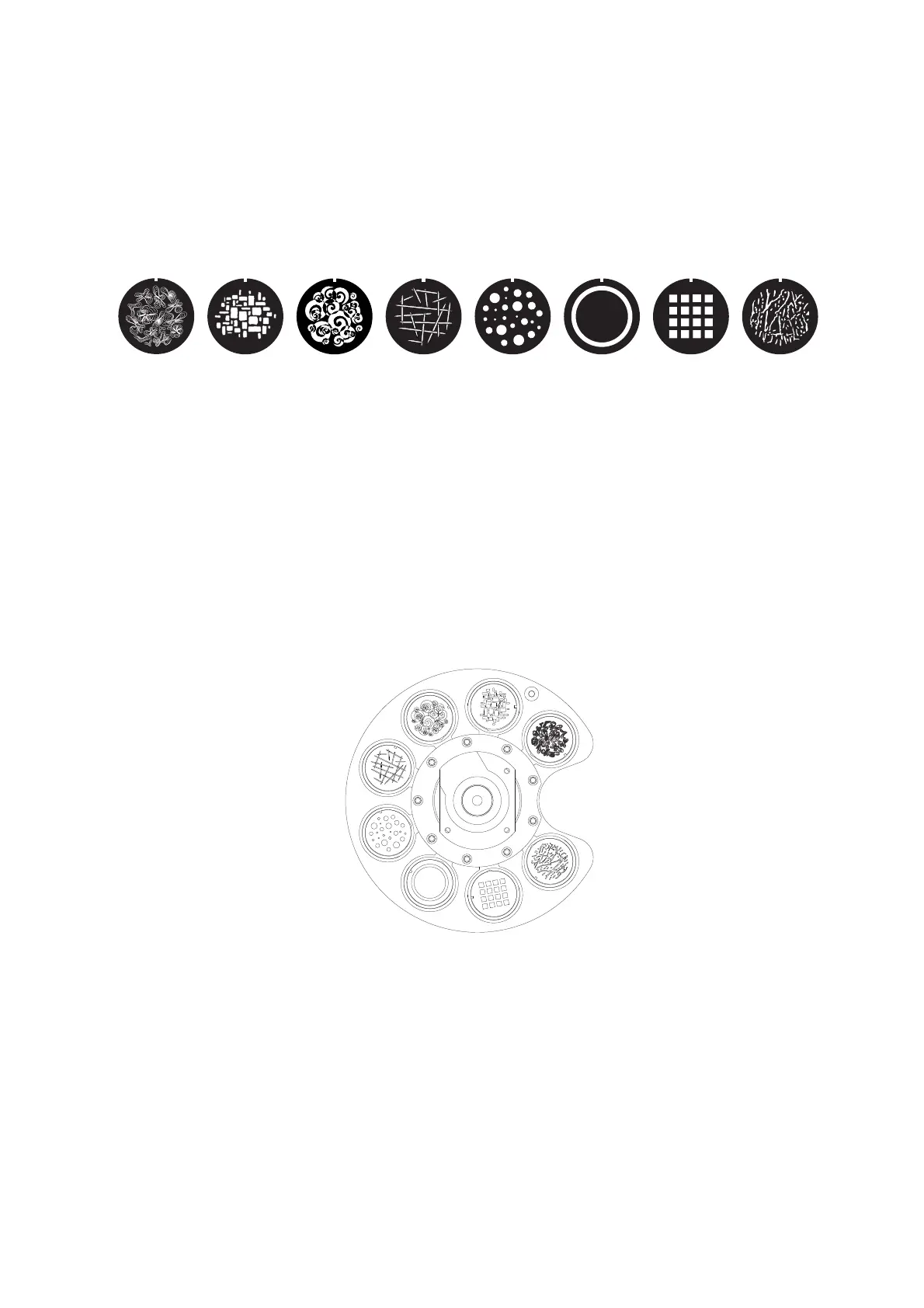

Figure 4: Static gobos installed as standard
Slot - Gobo Part number
1. Ray Flowers ......................................... P/N 5123154-00
2. Brick It.................................................. P/N 5123155-00
3. Happy................................................... P/N 5123156-00
4. Mikado ................................................. P/N 5123157-00
5. Dots...................................................... P/N 5123158-00
6. Lasercone Single ................................. P/N 5123160-00
7. Squares................................................ P/N 5123161-00
8. Marble Veins ........................................ P/N 5123159-00
7
5
4
3
2
Static gobo wheel seen from LED side
