Hardware supplied
in hardwarepack
1/2" Hex
Nyloc Nuts
(x3)
HHCS,
1/2-13x
3-1/2"
(x3)
OR
Hardware supplied
in hardwarepack
1/2" Hex
Nyloc Nuts
(x3)
HHCS,
1/2-13x
3-1/2"
(x3)
OR
24
Section 2 : inStaller
Installatio n
INSTALLING THE HITCH ADAPTER
1. Attach hitch adapter to hitch post
orientated properly according to the
application’s Hitch Height. [Figure 24-1]
2. Attach Hitch Post to lift. Do NOT
over tighten.
3. Slide Hitch Adapter into vehicle’s
hitch receiver. Fasten Adapter
according to hitch class. [Figure 23-2]

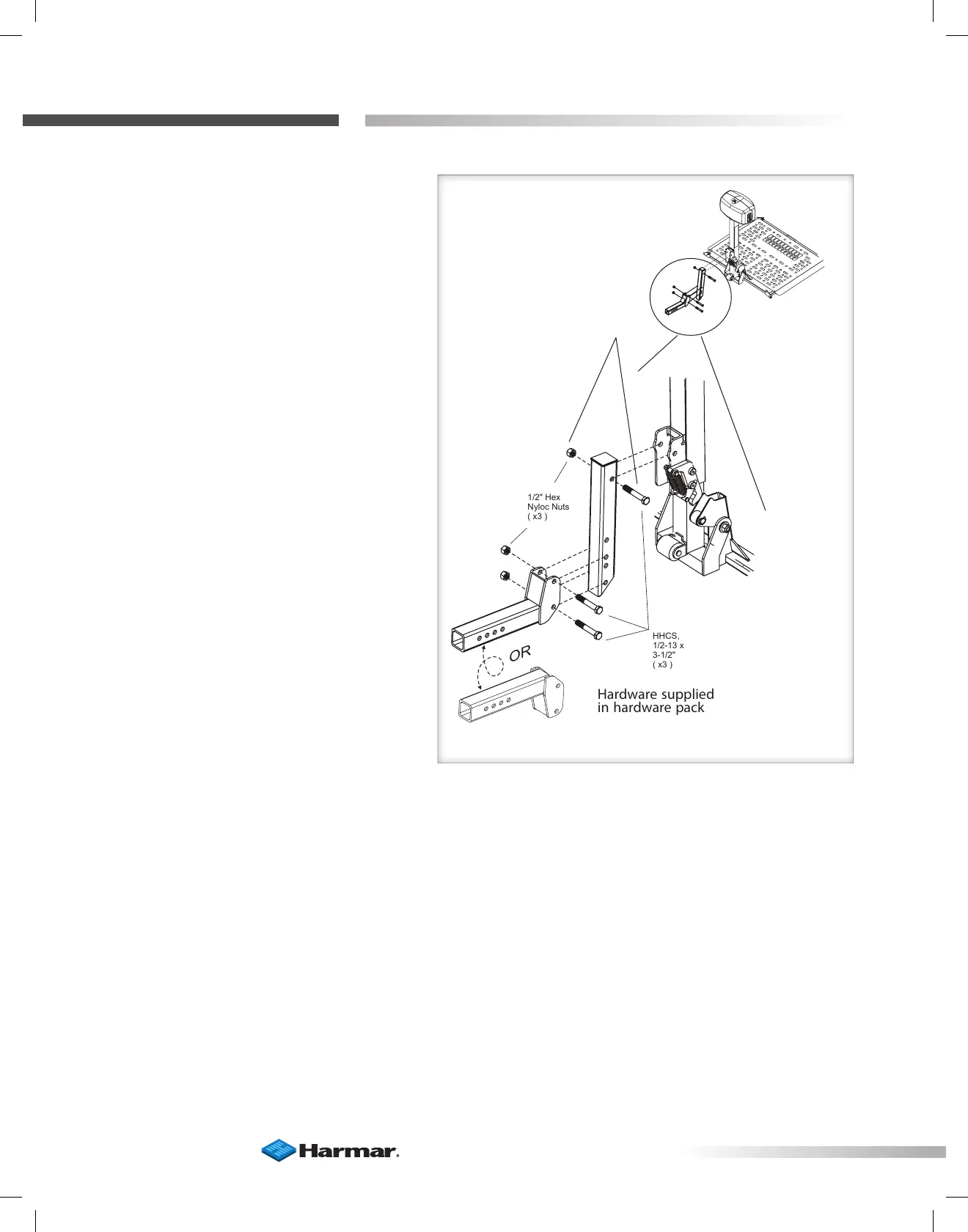

Figure 24-1
