Section 1 : owner
Operating Your Lift
AL010/050 AND AL030
MICRO LIFTS

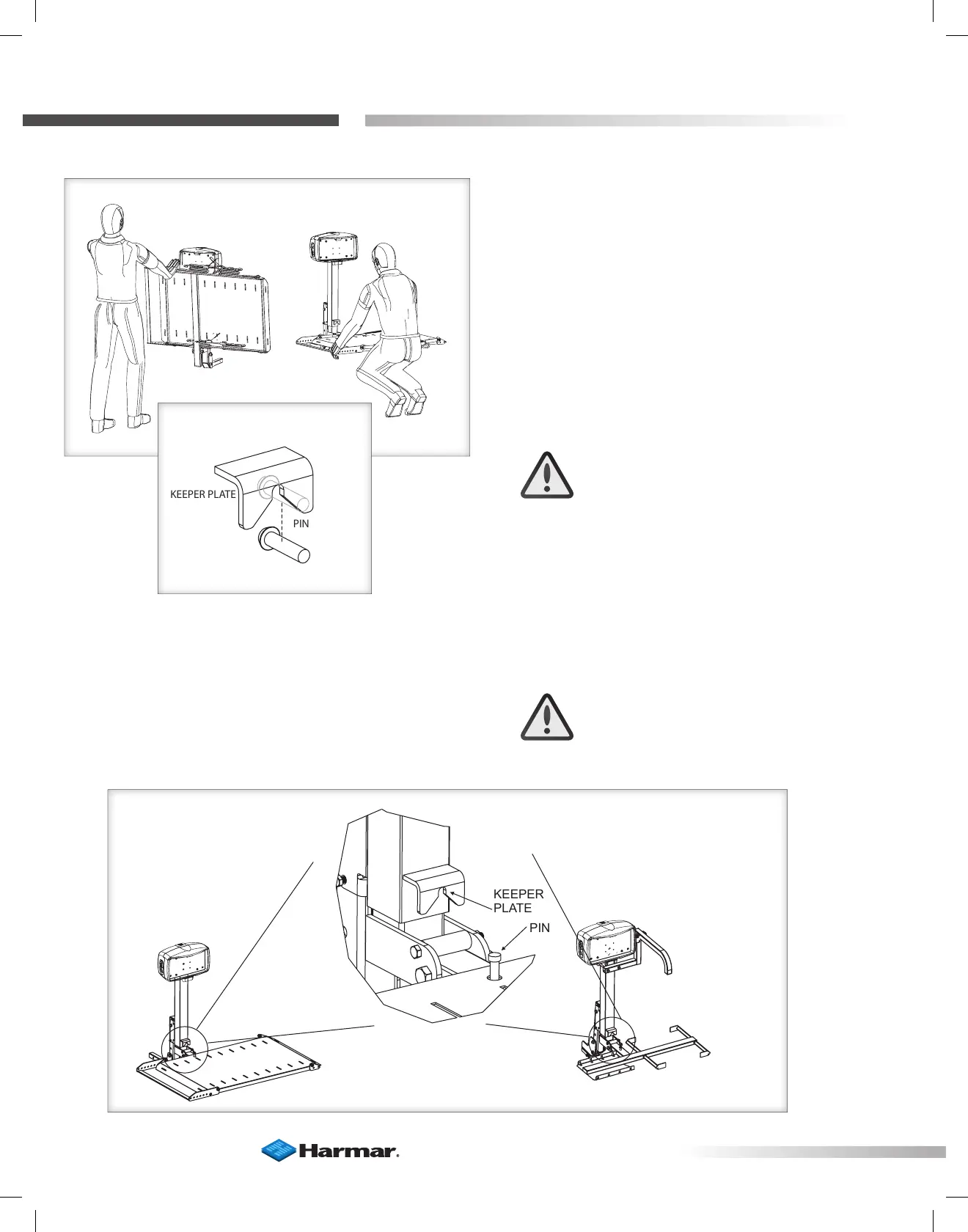

Figure 6-2
Figure 6-1
MICRO LIFTS / FOLDING
AL010/050 and AL030 models require the
platform to be folded and unfolded manually.
The locking mechanism consists of a pin and
keeper plate, which must be disengaged before
unfolding. Simply hold the platform rmly and
lower it approximately 2” to allow the platform to
disengage and unfold. [Figure 6-1]
WARNING
Hold platform rmly
while lowering the lift
to its down position.
To lock in the upright position, lift platform
up before the pin engages the keeper plate.
[Figure 6-2]
WARNING
Hold platform rmly while
raising the lift until the pin has
engaged the keeper plate.
