ASSEMBLY PARTS
ASSEMBLY PARTS
ITEM
ITEM
QTY
QTY
PART NO.
PART NO.
DESCRIPTION
DESCRIPTION
1 1 200-2A01-A MOTOR COVER, ASSEMBLY, OUTSIDE LIFTS
2 1 201-ZA06-C INNER TUBE
3 1 202-ZA06-C OUTER TUBE
4 1 203-2A36-C AL160 PLATFORM
5 1 204-ZA06-C EXTENDED CRADLE BAR
6 1 205-3A06-C HOLD DOWN ARM
7 1 400-2A06-A VINYL CAP FOR 1/2 OD STUD
8 1 400-2A36-A RUBBER STRIP FOR AL160
9 2 501-ZA06-C SPREADER BAR BRACKET
10 2 502-ZA06-C BAR, LINK, 3/16"
11 1 903-2A36-A LONG HOLD DOWN FOOT
12 1 903-3A03-A .75" X 6.00" RED REFLECTIVE STICKER
13 1 ALA10010REV2 ACUTATOR
14 1 ALA10032 ROLLER 2" DIA UHMW
15 1 ALA10050 TAB, ACTUATOR
16 1 ALA10095 STICKER, OUTSIDE LIFT
17 1 ALA108-PLT HOLD DOWN ARM ROD
18 2 ALA11025 EXTENSION SPRING
19 1 ALA125SPI INSERTS, 1 1/4 BLACK PLASTIC
20 1 ALA13025 COMPRESSION SPRING
21 2 ALA13030 NYLINEAR BEARINGS - 3/4"
22 2 ALA13050P HOLD DOWN ARM WASHER
23 1 ALA180 HARDWARE PACK
24 1 ALA25025FP (CAPLUGS# FP1-161 39276AB)
25 1 ALA99995 LABEL, SERIAL NUMBER
26 6 BHCS-0_37-16--0_75-SS BUTTON HEAD, 3/8-16 x 0.75, SS
27 1 BHCS-0_37-16--1_00-SS-NP BUTTON HEAD 3/8-16 x 1.00 SS
28 1 H11010 J-CAM
29 1 H14044 ROLLER
30 1 H14045 CLEVIS PIN
31 1 HHCS-0_25-20--0_75-NP-Z HEX HEAD, 1/4-20 x 0.75, ZP
32 3 HHCS-0_25-20--1_75-Z HEX HEAD, 1/4-20 x 1.75, ZP
33 2 HHCS-0_50-13--0_75-Z HEX HEAD, 1/2-13 x 0.75, ZP
34 2 HHCS-0_50-13--2_50-Z HEX HEAD, 1/2-13 x 2.50, ZP
35 4 HWTS-14--0_75-Z HEX WASHER, #14 SELF DRILL, 0.75, ZP
36 3 NUT-0_25-20-NYLOCK-Z NUT, NYLOCK, 1/4-20, ZP
37 6 NUT-0_37-16-NYLOCK-NTE-Z NYLOCK NUT, THIN, 3/8-16, ZP
38 2 NUT-0_50-13-NYLOCK-NTE-Z THIN NUT, NYLOCK, 1/2-13, ZP
39 3 NUT-0_50-13-NYLOCK-Z NUT, NYLOCK, 1/2-13, ZP
40 2 NUT-0_62-11-JAM-Z NUT, JAM, 5/8-11, ZP
41 1 PIN-0_12--1_50-CO-SS COTTER PIN
42 1 PIN-0_25--1_50-RP-Z ROLL PIN, 1/4 X 1.50, SPLIT, ZP
43 1 PIN-0_50--3_00-CL-Z CLEVIS PIN, 1/2" x 3" L, ZP
44 4 RIV-0_18-0_57-0_65-SS 3/16" RIVET .575" LONG WITH .65" HEAD SS
45 2 RR-0_62-EC-Z E-CLIP, 5/8" SHAFT
46 1 SHSB-0_62--2_50-Z SHOULDER BOLT, 5/8 DIA x 2.50, ZP
47 1 SPCR-0_25-0_50--0_31-N SPACER, 1/4", for CAM SPRINGS
48 10 WASH-0_25-0_62--0_04-RH-SS WASHER, FLAT, 1/4", SS
49 5 WASH-0_50-1_06--0_08-RH-SS WASHER, FLAT, 1/2", SS
50 4 WASH-0_50-1_50--0_12-N WASHER, FLAT, 1/2", NYLON
51 2 WASH-0_62-1_08--0_15-SL-Z WASHER, SPLIT-LOCK, 5/8 , ZP

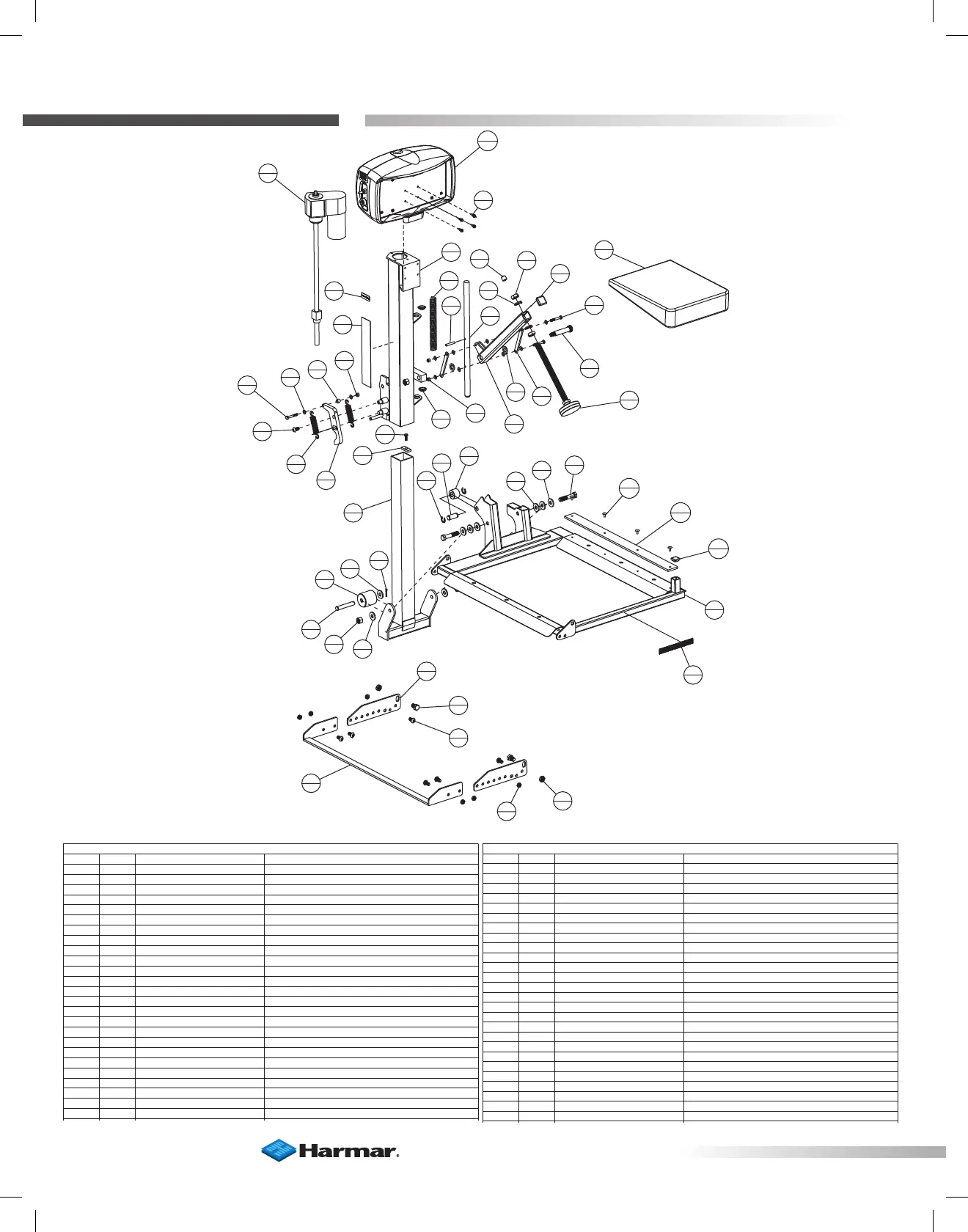

EXPLODED VIEW - AL160
38
2
32
1
34
2
26
6
33
2
36
1
45
2
13
1
15
1
6
1
17
1
5
1
9
2
20
1
21
2
10
2
22
2
11
1
31
1
41
1
2
1
3
1
28
1
29
1
30
1
40
2
43
1
42
1
46
1
47
1
51
2
49
1
48
10
36
2
32
2
49
2
49
2
14
1
27
1
39
3
50
4
16
6
1
35
4
25
1
23
1
37
19
1
7
1
4
1
1
1
8
1
24
1
44
4
12
1
18
2
30
