Harmar Mobility AL010 - Al301 Xl

ASSEMBLY PARTS
ITEM QTY
PART NO. DESCRIPTION
1 1 201-ZA06-C INNER TUBE
2 1 202-ZA10-C OUTER TUBE
3 1 203-ZA09-C PLATFORM
4 4 501-ZA06-C SPREADER BAR BRACKET
5 1 AL591 ANCHOR PLATE, 27.00
6 1 ALA10010REV2 ACUTATOR
7 1 ALA10032 ROLLER 2" DIA UHMW
8 1 ALA10050 TAB, ACTUATOR
9 1 ALA10095 STICKER, OUTSIDE LIFT
10 2 ALA11025 EXTENSION SPRING
11 1 ALA14096 RED REFLECTOR
12 1 ALA180 HARDWARE PACK
13 1 ALA50099 PATENT STICKER
14 1 ALA580 U-BOLT HARDWARE KIT
15 1 ALA99995 LABEL, SERIAL NUMBER
16 12 BHCS-0_37-16--0_75-SS BUTTON HEAD, 3/8-16 x 0.75, SS
17 1 BHCS-0_37-16--1_00-SS-NP BUTTON HEAD 3/8-16 x 1.00 SS
18 2 BHCS-10-24--0_50-SS BUTTON HEAD, #10-24 X 0.50, SS
19 1 H10096 STICKER, PLATFORM
20 1 H11010 J-CAM
21 1 200-2A01-A MOTOR COVER ASSEMBLY
22 1 H14044 ROLLER
23 1 H14045 CLEVIS PIN
24 1 H30110 ALUMINUM SKIN 301XL
25 1 H30151 AL301XL FRONT WHEEL CRADLE
26 2 H50010B LEFT HAND, Q-STRAINT - BLUE
27 2 H50011B RIGHT HAND, Q-STRIANT - BLUE
28 1 H52303XL AL301XL EXTENDED CRADLE BAR
29 1 HHCS-0_25-20--0_75-NP-Z HEX HEAD, 1/4-20 x 0.75, ZP
30 1 HHCS-0_25-20--1_75-Z HEX HEAD, 1/4-20 x 1.75, ZP
31 4 HHCS-0_50-13--0_75-Z HEX HEAD, 1/2-13 x 0.75, ZP
32 2 HHCS-0_50-13--2_50-Z HEX HEAD, 1/2-13 x 2.50, ZP
33 4 HWTS-14--0_75-Z HEX WASHER, #14 SELF DRILL, 0.75, ZP
34 1 NUT-0_25-20-NYLOCK-Z NUT, NYLOCK, 1/4-20, ZP
35 12 NUT-0_37-16-NYLOCK-NTE-Z THIN NUT, NYLOCK, 3/8-16, ZP
36 4 NUT-0_50-13-NYLOCK-NTE-Z THIN NUT, NYLOCK, 1/2-13, ZP
37 2 NUT-0_50-13-NYLOCK-Z NUT, NYLOCK, 1/2-13, ZP
38 2 NUT-10-24-NYLOCK-Z NUT, NYLOCK, #10-24, ZP
39 1 PIN-0_12--1_50-CO-SS COTTER PIN
40 1 PIN-0_50--3_00-CL-Z CLEVIS PIN, 1/2" x 3" L, ZP
41 12 RIV-188-SS RIVET
42 2 RR-0_62-EC-Z E-CLIP, 5/8" SHAFT
43 1 SPCR-0_25-0_50--0_31-N SPACER, 1/4", for CAM SPRINGS
44 2 WASH-0_25-0_62--0_04-RH-SS WASHER, FLAT, 1/4", SS
45 5 WASH-0_50-1_06--0_08-RH-SS WASHER, FLAT, 1/2", SS
46 4 WASH-0_50-1_50--0_12-N WASHER, FLAT, 1/2", NYLON
QTYITEM
PART NO. DESCRIPTION
ASSEMBLY PARTS
30
1
32
2
34
1
42
2
6
1
8
1
10
2
29
1
39
1
1
1
2
1
20
1
3
1
21
1
22
1
23
1
40
1
43
1
45
1
44
2
45
2
45
2
7
1
17
1
46
4
9
1
33
4
15
1
19
1
12
1
11
1
38
2
27
2
31
4
36
4
14
1
18
2
41
12
24
1
4
4
5
1
13
1
16
12
28
1
37
2
35
12

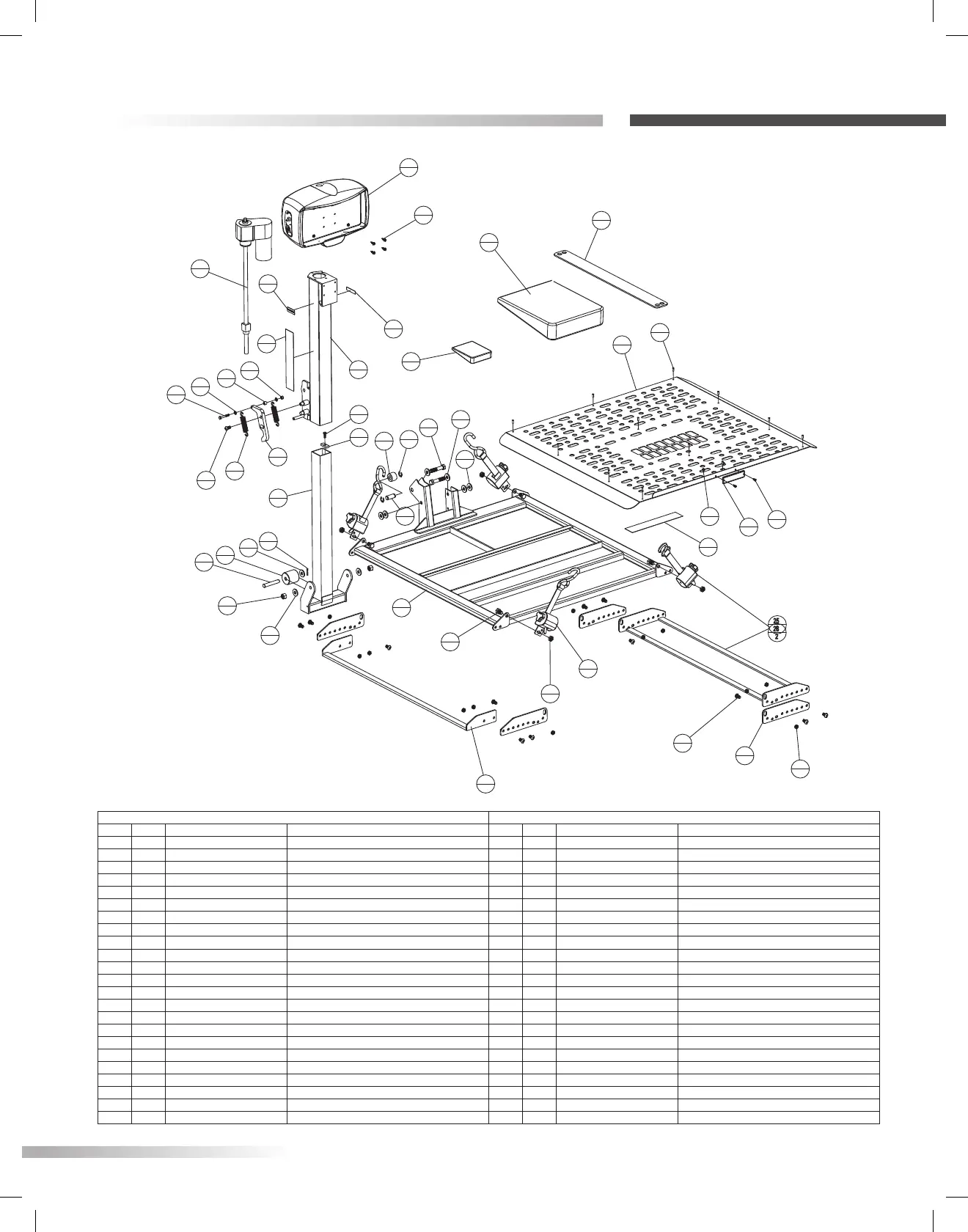

EXPLODED VIEW - AL301XL
33
Outside Lifts - Installation & Owner’s Manual 2013
47
Section 2 : inStaller
Exploded Views
AL301XL
