INSTALLER
Figure 22-1
Figure 22-4Figure 22-3Figure 22-2

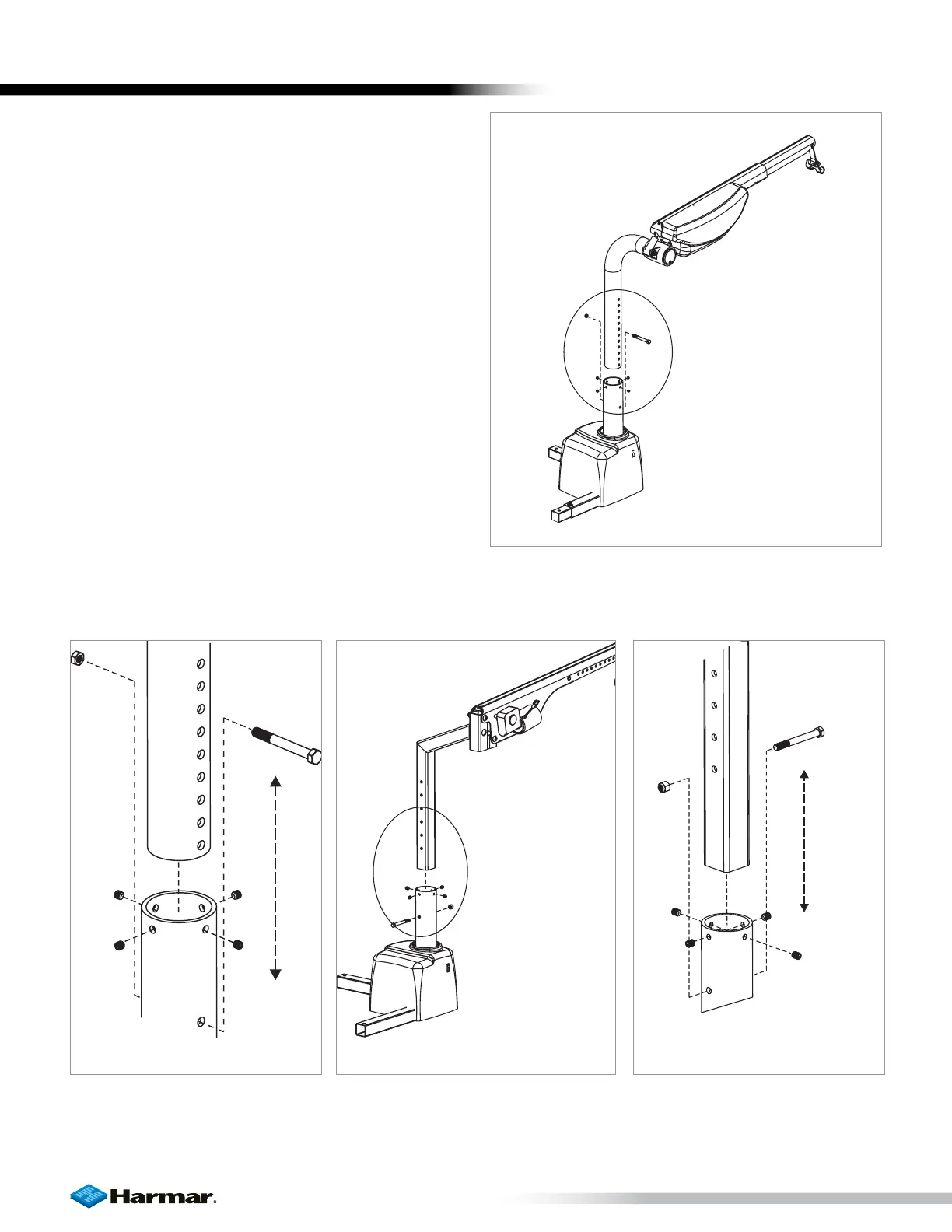

ADJUSTMENTS: HEIGHT
AL425 / AL435 / AL435T
• Remove bolt.
• Loosen set screws (x4). [Figure 22-1]
• Slide inner vertical post.
• Replace bolt.
• Tighten set screws/ (x4) [Figure 22-2]
AL215 / AL225
• Remove bolt.
• Loosen set screws (x4) [Figure 22-3]
• Replace bolt.
• Tighten set screws (x4) [Figure 22-4]
LIFT ADJUSTMENTS
