Inside Lifts - Installation & Owner’s Manual TEC0091 2016JUN30 P/N: 630-00076-Rev A |
| www.harmar.com | 800-833-0478
© 2016 Harmar All Rights Reserved
23
INSTALLER
Loosenbolt.
Remove pin.
Rotate arm.
Replace pin.
Tighten bolt.

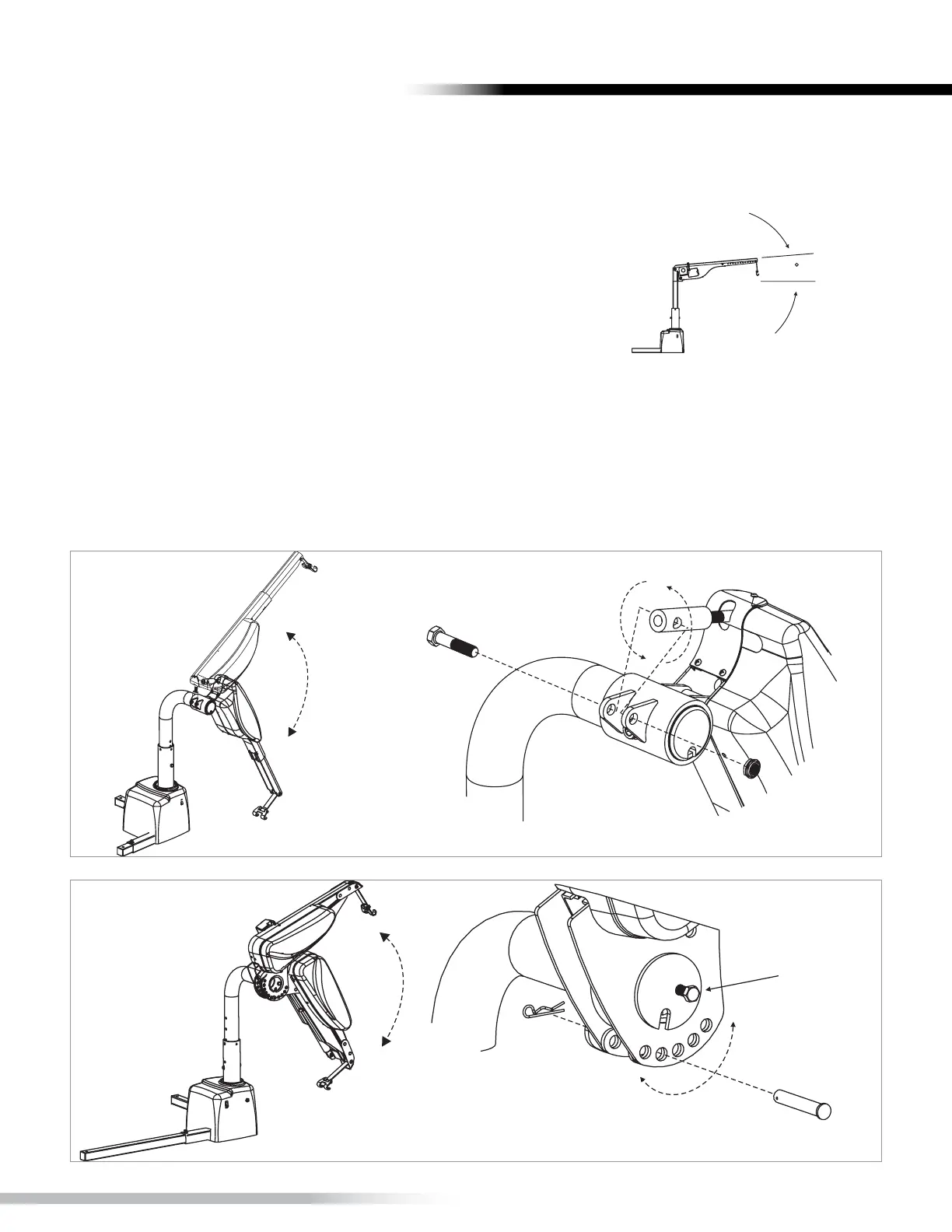

ADJUSTMENTS : PITCH
AL425
• Remove bolt.
• Rotate turnbuckle.
• Replace bolt. [Figure 23-1]
AL435 / AL435T
• Loosen bolt.
• Remove pin.
• Rotate arm.
• Replace pin.
• Tighten bolt. [Figure 23-2]
5
LIFT ADJUSTMENTS
Figure 23-1
Figure 23-2
NOTE: The AL215 and AL225 are manufactured
with a 6 degree pre-load so pitch adjustment is not
necessary.
