8
D-G 16 S2 - 18.04.13 / Vers.: 1
3.3 Fill abrasives
(see fig. 1 and 3, page 4 & 6)
Caution
The D-G 16 S2 automatic blasting unit should only be used with a correctly installed and un-
damaged super-fine filter (7) and filter bag (14).
1. Open door to filter chamber (4) by unscrewing the two star grips (11).
2. Ensure that the super-fine filter (7) is not damaged and correctly pressed onto the sealing sur-
face (49) (i.e., sealed). The two knurled nuts (43) must be tightened firmly and evenly.
3. Ensure that the filter bag (14) is inserted in an undamaged condition in the mesh basket (48).
4. The filter bag plastic connection (41) should sit securely on the connection piece (40).
5. Seal the door to the filter chamber (4) again by gently but firmly tightening the two star grips.
3.4 Automatic operational mode
(see diag. 1 & 3 page 4 & 6)
Aus
off
Autom.
autom.
Hand
manual
start / stop
Ein
on
Arbeitsdruck
operating pressure
D - G 16
Druckregler
pressure control
timer
sec
Harnisch+Rieth
Filterwechsel
filter change
60
5251
0015
55 59 58

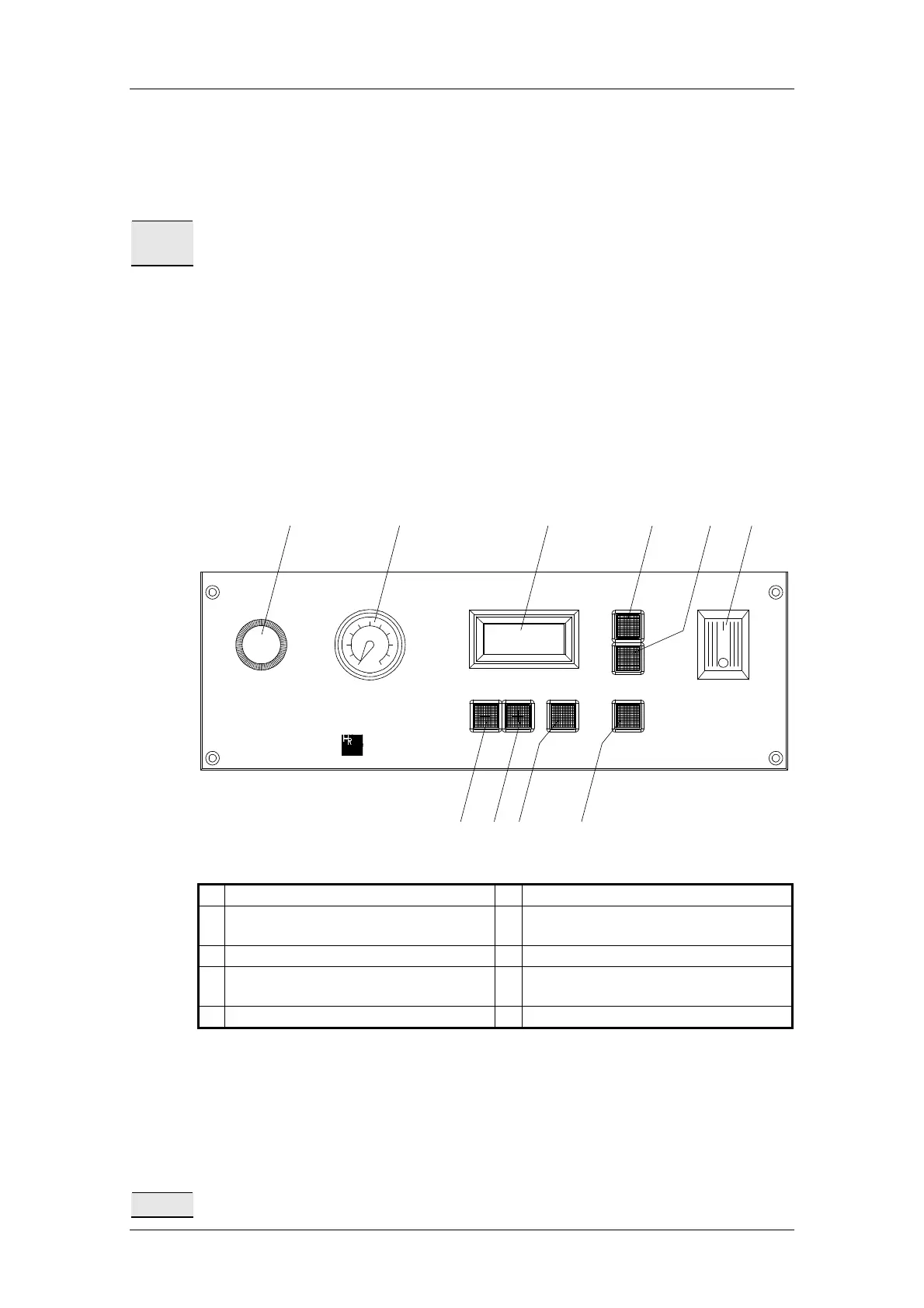

Fig. 4: Shield
51
Regulator for operating pressure 56
Filter change LED (red)
52
Pressure gauge for operating pressure 57
"start/stop" button (for automatic opera-
tion)
53
“-" timer pushbutton 58
"Autom./autom." button
54
"+" timer pushbutton 59
"Hand/manual" button (for manual opera-
tion)
55
Display 60
Main power switch
1. Place objects to be blasted in the sandblasting cage (64).
2. The injector (20) must be in the mounting (19) and the rounded head screw (63) must be in its
nut.
3. Close front lid (4).
4. Do not adjust operating pressure at the pressure controller (51) to more than 5bar ! The oper-
ating pressure can be checked at the pressure gauge (52).
Note Upon switching on at the main power switch the device is in an operation ready state.
