2.3 Short description of unit and identification of components
This device can be used as both an automatic unit or as a manual blasting device. The high-
performance jet with a tetraboric blasting nozzle is simply removed from the holder for manual
blasting operations and guided by hand, the sand blast been activated by a foot-actuated valve.
The spacious blasting chamber is optimally lit by 230 volt illumination and can be observed in
comfort through the broad-surfaced front window. A high-performance, low-noise extractor fan,
combined with an effective filter installation consisting of a large volume filter bag followed by a
super-fine filter, guarantee a dust-free, pleasant working environment. If the dust in the filter bag
reaches the maximum level a filter control lamp illuminates and the unit switches itself off auto-
matically. The filter bag can be replaced easily without generating any dust.
Blasting agent circulation occurs automatically and is kept free of embedded material residue
through the action of a sieve which can be easily removed at the side.
1 2
9
5
8
7
6
5
4
3

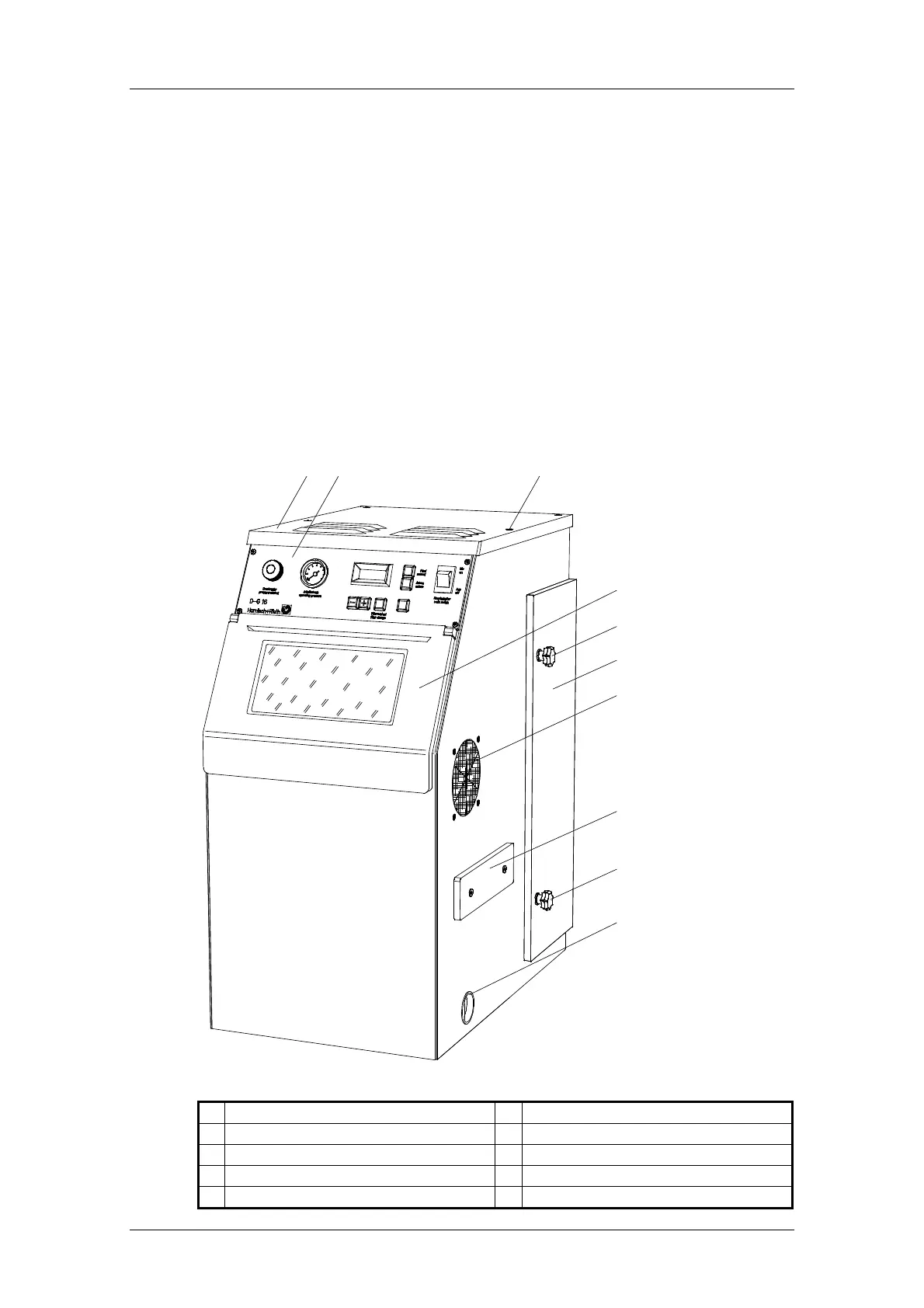

Fig. 1: View from the right and the front
1
Device lid 6
Door for filter area
2
Shield 7
Hand through-grip(only on the right side)
3
4 x hexagon socket screws 8
Slide-in sieve
4
Front lid 9
Sand drain lid
5
Star handle
