Revision A • 6/06
HARRIS CORPORATION
2-1
2
Installation
The NetWave console sits on the countertop
on four rubber feet. One cable access cutout is re-
quired under the frame for cabinet wiring to cleanly
connect to the console connectors. These are hid-
den under a cosmetic cover after installation. For
security and stability, the console should be fastened
to the countertop using two #8 or #10 screws or
bolts (not supplied). Two .256" chassis holes be-
hind the front two feet are provided for this. Frame
sizes and cutout dimensions are listed below.
The NetWave console shipment contains:
• NetWave main frame, loaded with DSP & I/O
and Monitor & Output cards; a Monitor panel;
Dual Fader panels (NetWave-8 has four; Net-
Wave-16 has six plus two dual blanks; NetWave-
24 has nine plus three dual blanks); optional
items ordered (additional Dual Fader panels, Vis-
taMax Link Activation Kit, Dual Router Kits,
Quad Meter Package)
• 48-volt DC power supply (50-27 in-line supply
or a 99-1205 rackmount supply and DC cable)
• Installation kit (MOD IV housings and recep-
tacle contacts, blank source name labels)
• Channel Setup Stylus Tool
• Reflector for the Console Display
• NetWave Quick Guide
• NetWave CD-ROM
Dimension Table
Frame Size Width Cable Access Dims.
NetWave-8 20" [508] 2
"
x 17" [51 x 432]
NetWave-16 32.8" [833] 2
"
x 30" [51 x 762]
NetWave-24 45.6" [1158] 2
"
x 43" [51 x 1092]
NetWave consoles are 21" [534] deep (from the front of the palm rest
to the back tips of the side panels). Add .5" [13] additional clear-
ance behind the console in order to fully open the connector cover
when the console’s rear is against a wall.
The console height above the countertop is 3" [76], except for the con-
sole display reflector, which is 8" [203] above the countertop.
Typical console setback from the countertop edge to the palm rest is be-
tween 6" [152] and 12" [305].
Millimeter dimensions listed in brackets. All dimensional tolerances are:
±¼" [6.4].
234567890123456789012
CABLE ACCESS OPENING
Setback
(typ. 6" - 12")
18.5"
COUNTERTOP EDGE

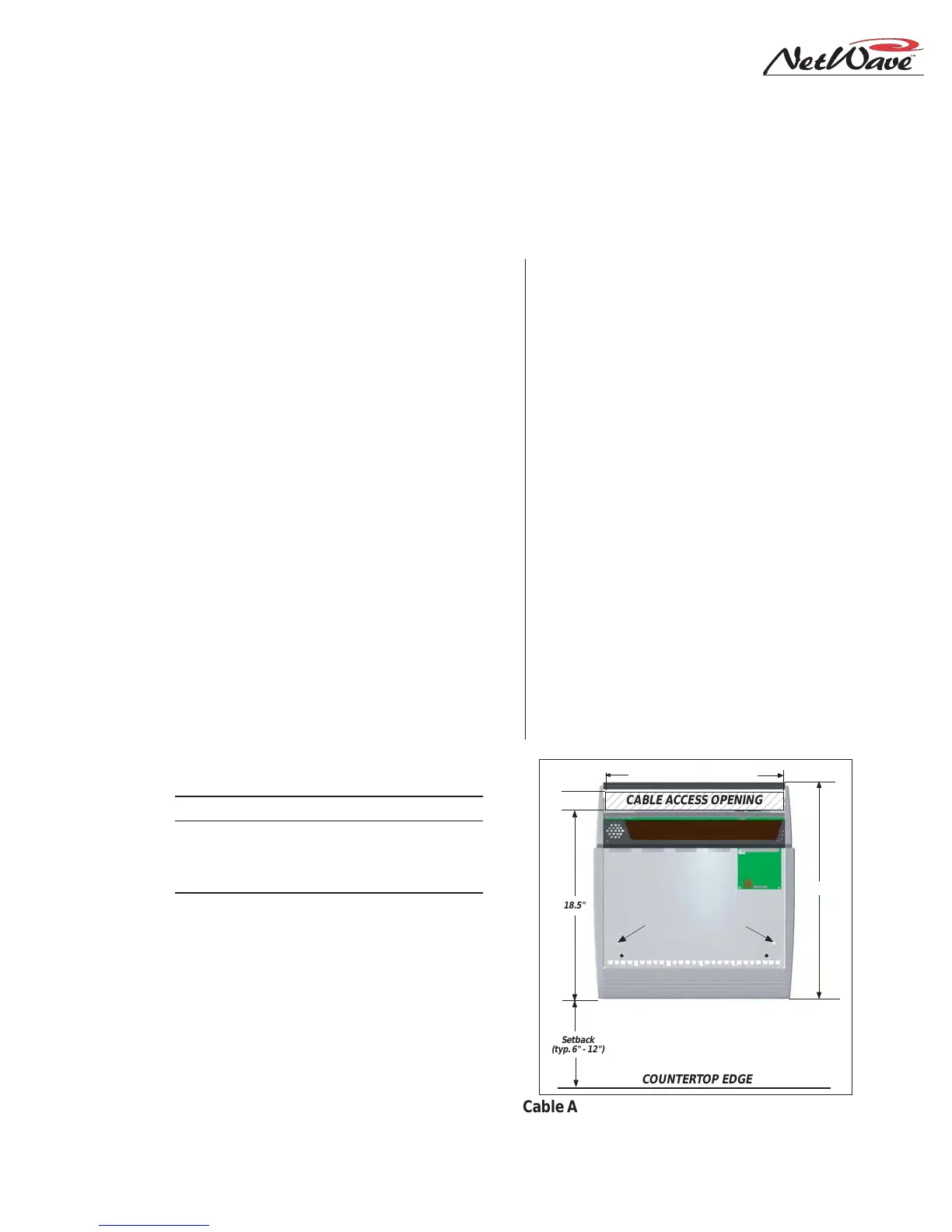

Cable Access Cutout & Console Mounting holes
.256" holes to fasten
console to countertop
2"
See Dimension Table for Width
NetWave-8 console with Dual Fader and
Monitor Control panels removed
21"
